3.4.2.2 Toolbars
The toolbars in uc480 Viewer provide the tools described below. Which of these tools are available depends on the
mode you have selected (expert mode on/off).

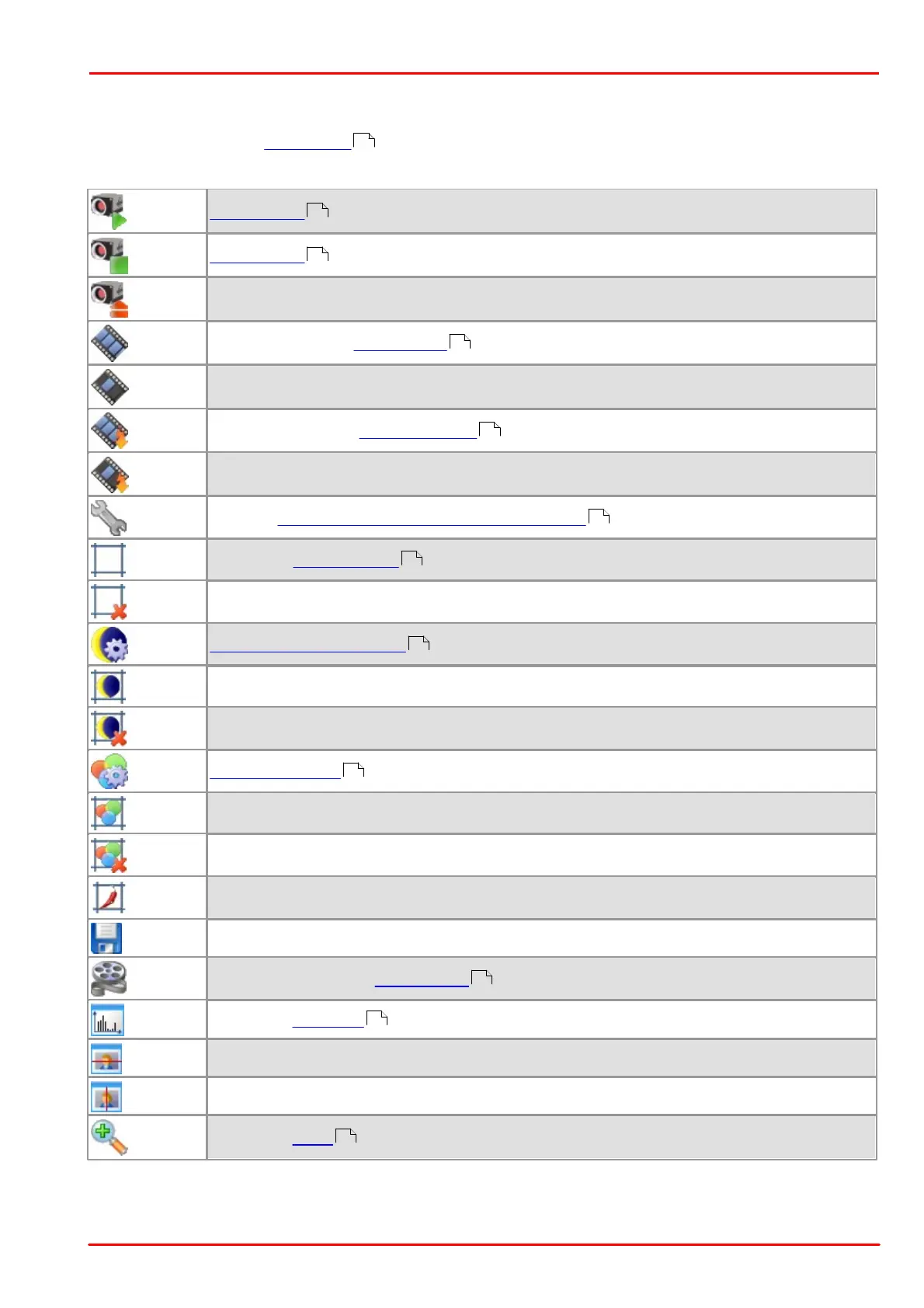

Top toolbar
Open camera and start in live mode
Open camera
Close camera
Start/stop live video (freerun mode )
Snapshot in freerun mode
Start/stop continuous triggered capture
Snapshot in trigger mode
Open the dialog box for setting the camera parameters
Select AOI (Area of interest )
Delete selected AOI
Automatic brightness control (AES/AGC) on/off
Set reference area for automatic brightness control
Delete reference area for automatic brightness control
Auto white balance (AWB) on/off
Set reference area for auto white balance
Delete reference area for auto white balance
Measure sharpness in a defined AOI
Save image as bitmap
Open the dialog box for AVI recording
Open/close Histogram window
Open/close Horizontal Line View window
Open/close Vertical Line View window
Open/close Zoom window
