5 Specifications
497
5.6 Accessories for DCx cameras
Lenses
Thorlabs also supplies a wide variety of lenses and objectives from leading manufacturers. Please contact
Thorlabs for technical support and a detailed quote tailored to your needs.
USB cables
All Thorlabs DCx cameras are shipped with a 1.5m USB2.0, A to Mini B, cable.
5.6.1 Accessories for DCU22xX / DCC1240X
For information on the pin assignment of the cables and connectors see chapter Pin Assignment I/O Connector .
USB Cables with Cables for digital I/Os

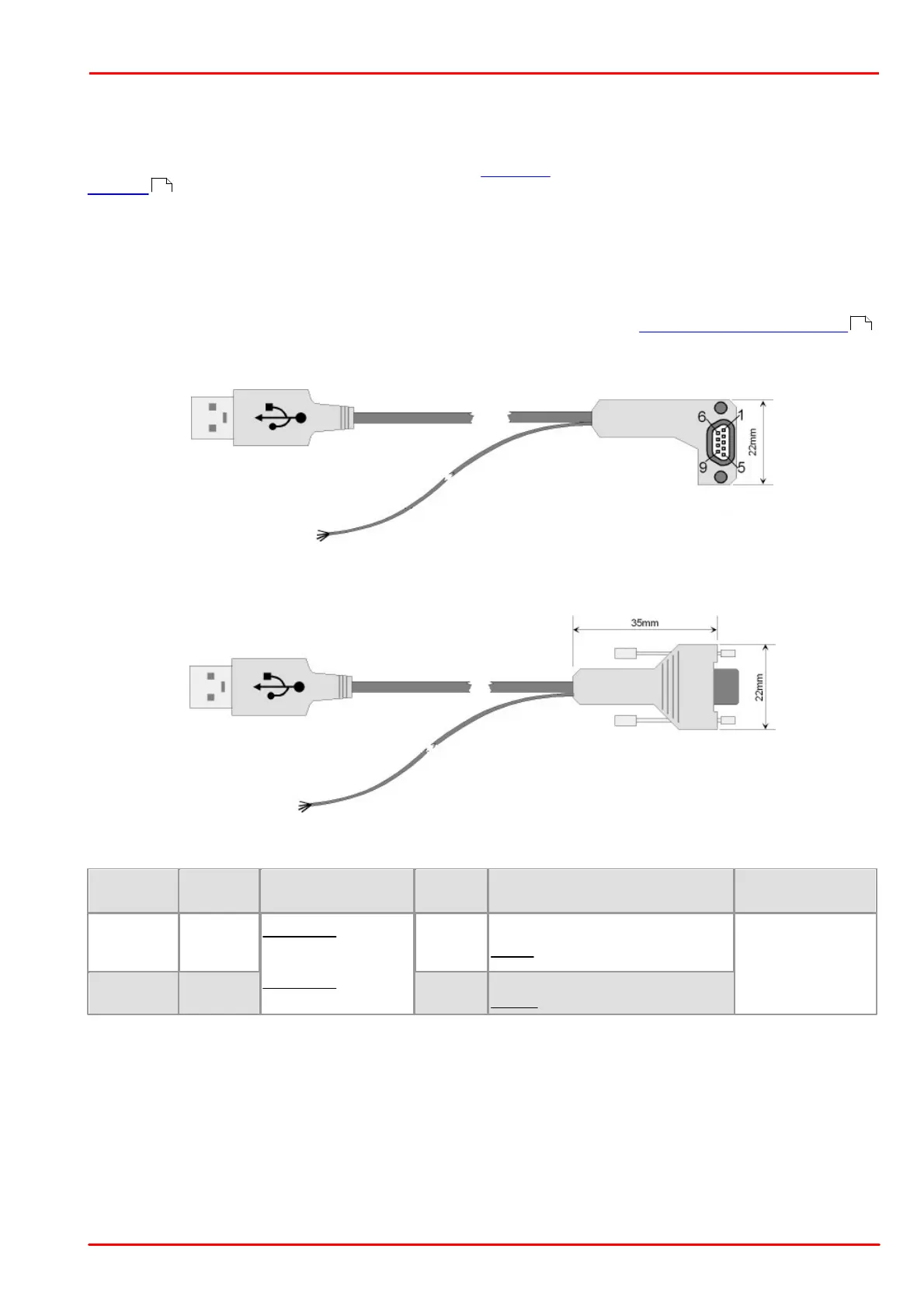

CAB-DCU-T1 (angled Micro D SUB camera connector; trigger in / out)
CAB-DCU-T2 (straight Micro D SUB camera connector, trigger in only)
Type
Length
Cable Type
Function
Connector Camera Side
Connector PC
Side
CAB-DCU-T1
3 m
USB cable, AWG 28,
single shielded,
additional cable for
digital I/Os, 4-wire,
open wires
USB &
Trigger in
/ out
Micro D-Sub for screw-mounting,
angled
USB 2.0
Type A
CAB-DCU-T2
3 m
USB &
Trigger in
Micro D-Sub for screw-mounting,
straight
518
