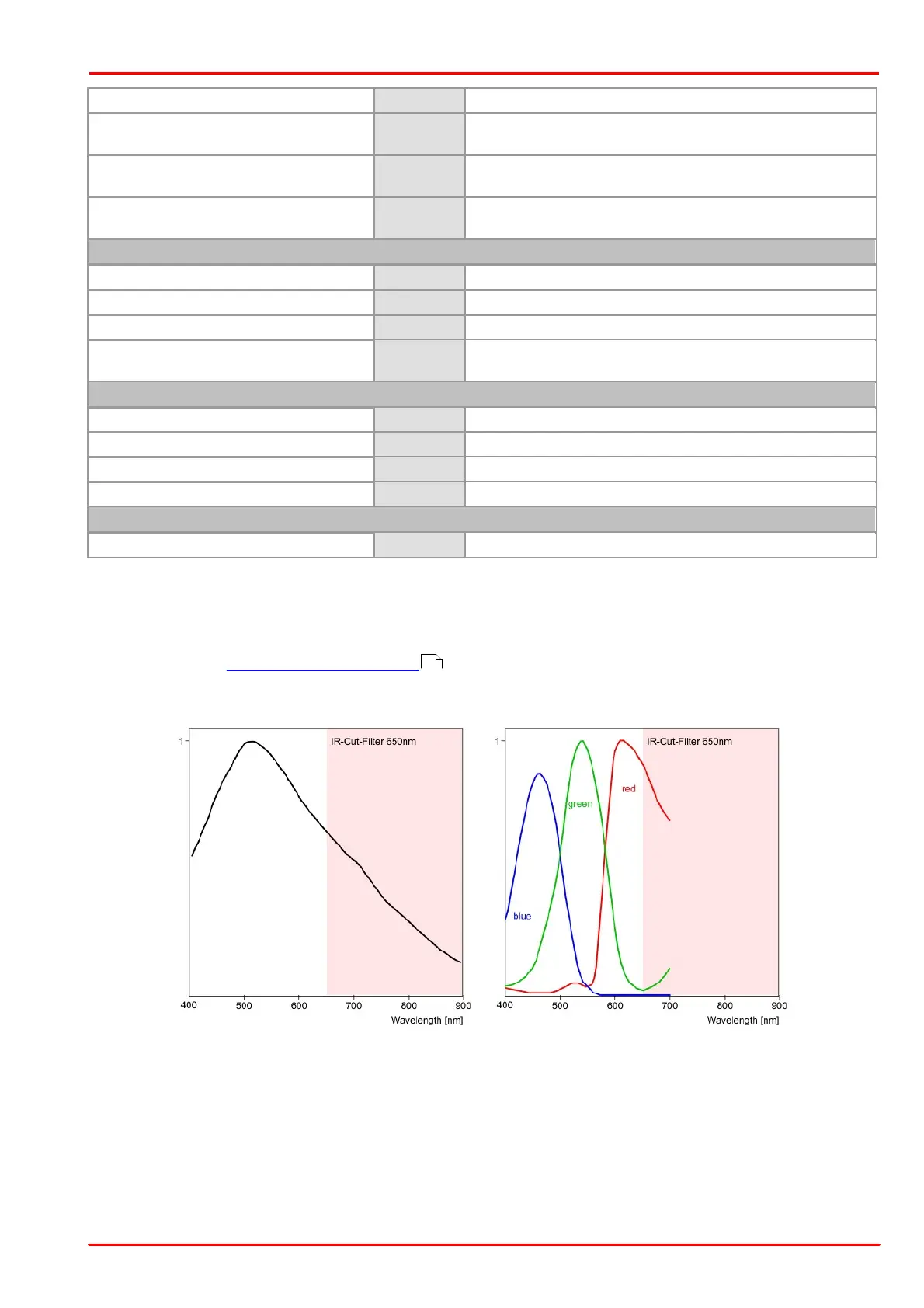

© 2013 Thorlabs GmbH
5 Specifications
471
Factor
2x, 3x, 4x
Frame rate with 2x binning, 1280 x 512
pixels
fps
23
Frame rate with 3x binning, 1280 x 340
pixels
fps
28
Frame rate with 4x binning, 1280 x 256
pixels
fps
31
Subsampling
Mode
Vertical
*4
Method
V: Color subsampling
Factor
4x
Frame rate w/ 4x subsampling, 1280 x
256 pixels
fps
31
Hardware trigger
Mode
Asynchronous
Trigger delay with rising edge
µs
39.9 ±2.5
Trigger delay with falling edge
µs
57.7 ±2.5
Additive trigger delay (optional)
µs
15 µs...4 s
Power consumption
*5
W
1.1 to 2.1
*
1
The maximum possible pixel clock frequency depends on the PC hardware used.
*
2
Requires maximum pixel clock frequency.
*
3
Requires minimum pixel clock frequency.
*
4
Use of this function increases the frame rate.
*
5
The power consumption depends on the sensor model and the pixel clock setting.
Please see also the DCU224x Application Notes chapter.
Relative sensor sensitivity
Sensor sensitivity of the DCU224M (monochrome)
Sensor sensitivity of the DCU224C (color)
66
