3 Operation
97
3.4.2.7.3 Size

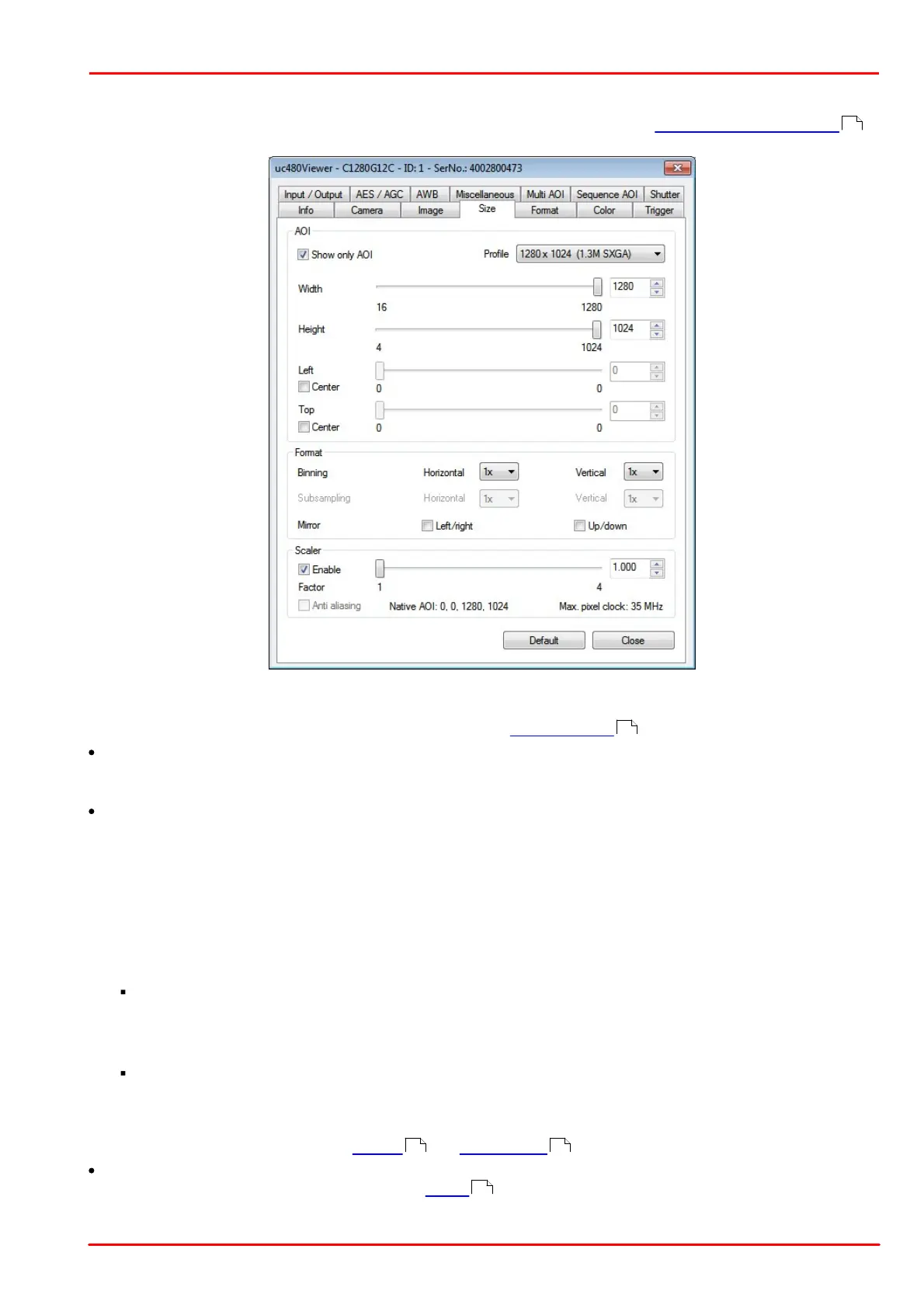

On this tab, you can set the image size parameters for your DCx camera (see also Reading out partial images ).
AOI
These parameters allow selecting the size and position of the area of interest .
Profile
With this selection box, you can set several common image formats on CMOS sensors. The driver then sets the
selected format using either AOI, binning / subsampling, or scaler, so that it achieves the best image quality.
Show only AOI
The AOI is displayed without a black border. Internally, the image is managed at the AOI resolution and not the
full sensor resolution. This function saves memory and computing time when rendering the image.
o Width
Sets the AOI width.
o Height
Sets the AOI height.
o Left
Sets the left-hand position of the AOI.
Center
Select this check box to center the AOI horizontally.
o Top
Sets the top position of the AOI.
Center
Select this check box to center the AOI vertically.
Horizontal format / vertical format
With these options, you can select the binning and subsampling settings for the image.
Binning Horizontal/Vertical
These radio buttons allow setting the binning factor. The image resolution is then reduced by the selected
factor. You can use binning to increase the frame rate.
34
