3.2 Physical Overview
3.2 Physical Overview
3.2.1 Front Panel
Navigation Keys TSWX
Enter/Edit Key
OK
Wavelength Key
λ
Relative Meas. Key
Δ
Backlight Key


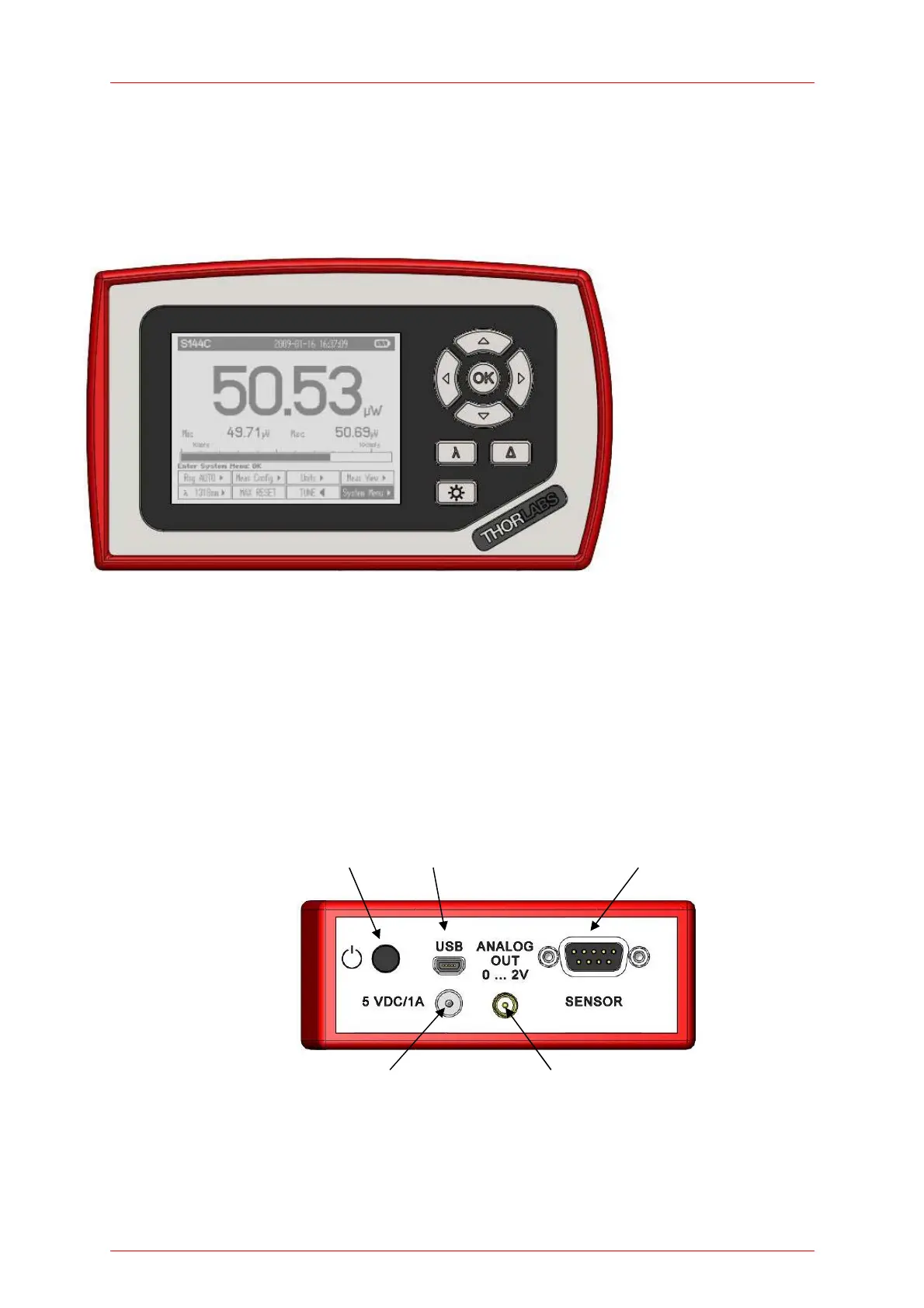

Figure 1 Physical Overview Front Panel
3.2.2 Side Panel
On/Off Switch USB Connector Sensor Connector (DB9 female)
DC Input (Charger) Analog Output (SMA)
Figure 2 Physical Overview Side Panel
10

THORLABS PM100D Specifications

General

Data Logging	Yes
Storage Temperature Range	-20 °C to 70 °C
Power Accuracy	±0.5% of reading
Interface	USB
Power Supply	USB or AC Adapter
Display Update Rate	10 Hz
Detector Type	Photodiode or Thermopile (Sensor Dependent)
