3.2 Physical Overview
3.2.5 Display Options 5 Display Options

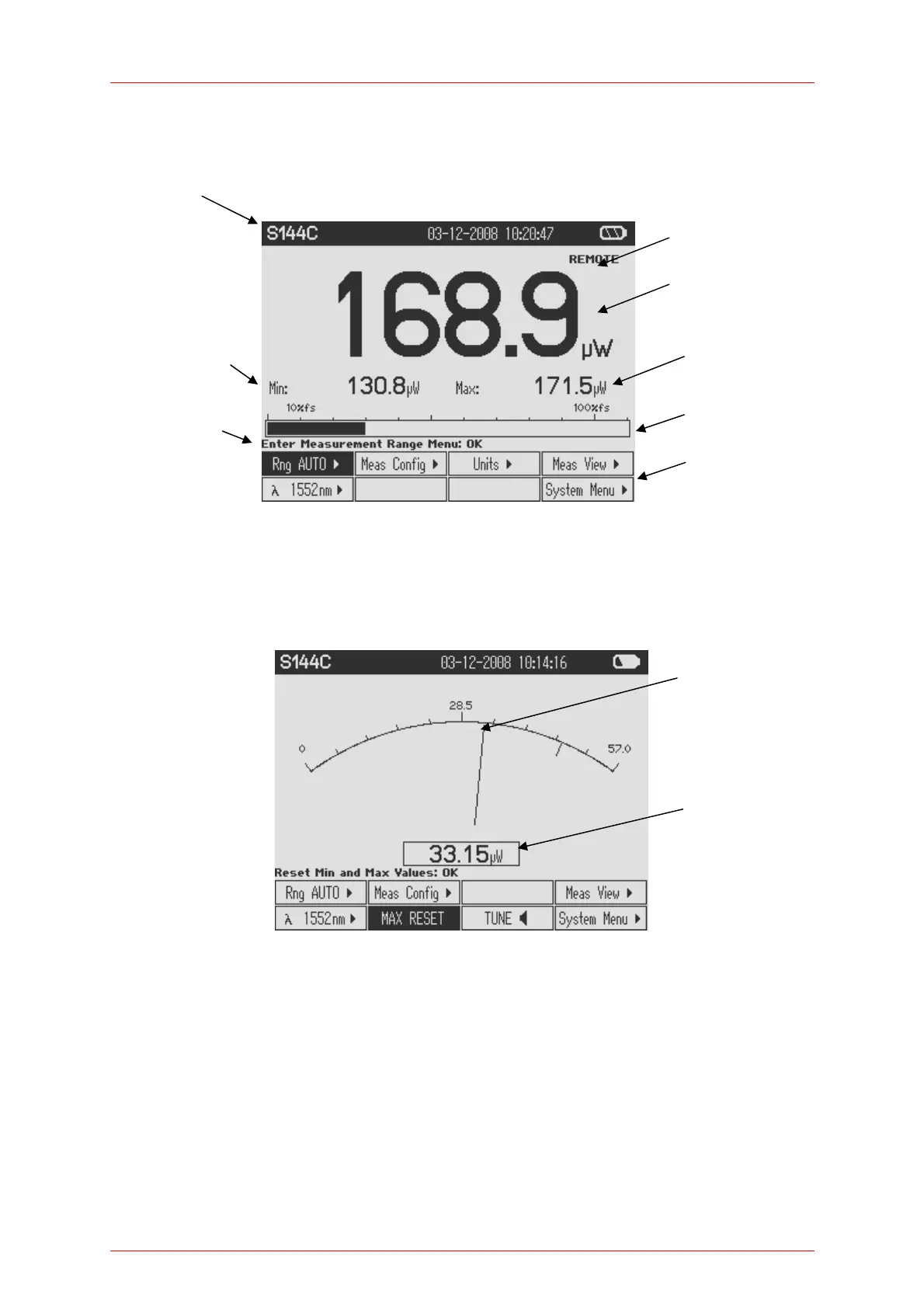

Figure 5 Numeric Screen (Power and Energy Mode)
Configurable
Right Sub Display
Configurable
Left Sub Display
Bar Graph
Menu Soft Buttons
Current power
value
Maximum value
indicator
Tool Tip Text
Main Display
Status Line with
Warning Annunciators
Header Line with Sensor Information, Date/Time and Battery state
Figure 6 Needle Tuning (Power Mode)
