Operating Instruction TNI soft Flow 50 homecare system
3) Startup of TNI soft Flow 50 homecare system
3.1) Structure and composition
• Placetheunit/systemhorizontallyonaplanesurface.
• Makesurethatthesystemislocatedbelowhead

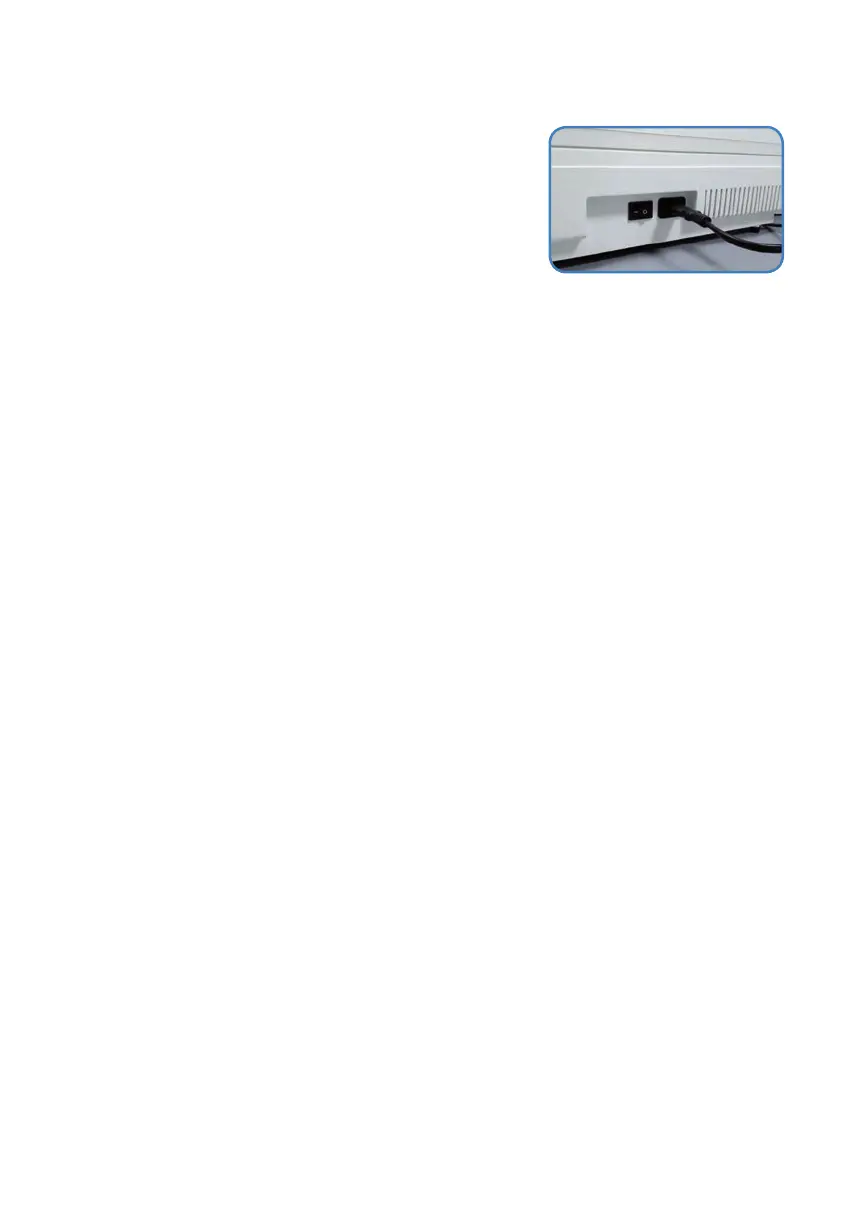

height.Insertthemainscableintothepowersocket
attherightsideofthedevice.  
• Insertthepowerplugintothepoweroutlet.
3.1.1)Fillinganinsertingthehumidierhomecarecomplete
• TheHumidierhomecarecompletecontains:
 o “Waterchamberhumidierhomecare”
 o “Cycloneelementhumidierhomecare”
 o “Lidhumidierhomecare”
• Removethepreassembled“humidierhomecarecomplete”fromthepackagingorfrom
TNI soft
Flow 50.
• Pleasereferadditionallytothedescriptiveimagesequence.
• Removethe“lidhumdierhomecare”appingthelockingtabupwardsonallsides.
• Removethe“cycloneelementhumdierhomecare”(pullitoutupwards).
• Fillthe“waterchamberhumidierhomecare”withtherecommendedwateruptothe
“max”mark.
 o Afterllingthewaterlevelmustbeintheareaof„min/max“.
 o Themark„max“mustnotbeexceeded(seepictureontheright).
• Insertthe“cycloneelementhumidierhomecare”.
• Closethe“lidhumidierhomecare”andlockit.
• Carefullypushthe“humidierhomecarecomplete”intothedevice.
• Makesurethatnowatercanaccessintothesystem.
• Closethehousingfrontlid.
WARNING
Hygiene
• Use authorized parts only.
• Make sure that the hygiene regulations are met.
• Use originally packed and unexpired parts only.
SAFETY NOTE
In order to ensure an optimal treatment,
• do not use the “water chamber humidier homecare” after it had been dropped or run dry,
which will trigger the alarm “rell water”.
• Remove the “humidier homecare complete” BEFORE transporting, tilting or moving the
device.
