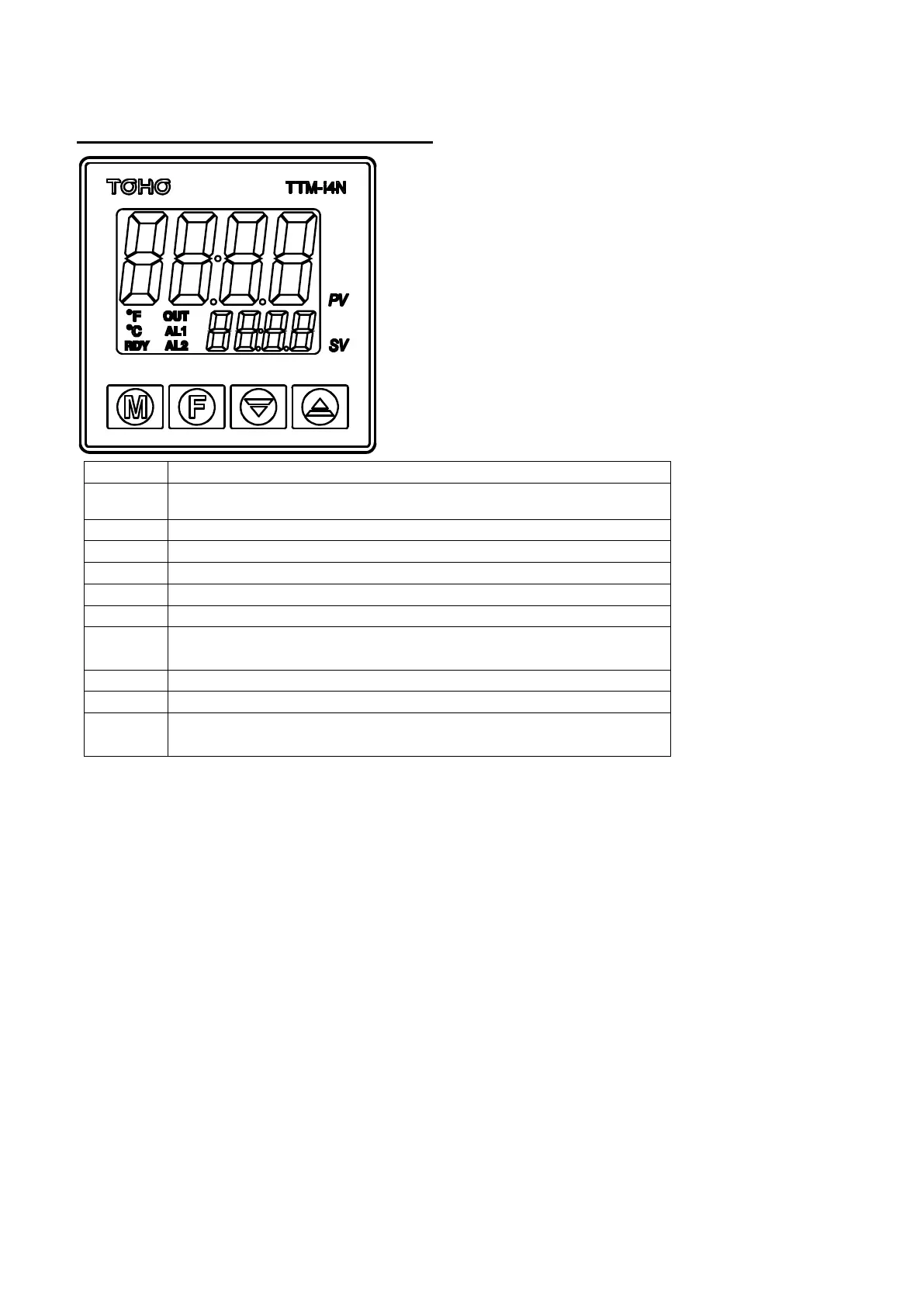

2. Name and Function of Parts
PV
Displays the character of current measurement value or setting mode screen.
SV
Displays the selected input value of setting value, output value, or setting mode
screen.
°F
Lights up when the setting value is a temperature data with the unit of °F.
°C
Lights up when the setting value is a temperature data with the unit of °C.
RDY
Lights up when the control mode is RDY (ready).
OUT
Lights up when OUT1 (Output 1) is turned ON.
AL1
Lights up when Event Output 1 is turned ON.
AL2
Lights up when Event Output 2 is turned ON.
If heat/cool control is selected, it also lights up when OUT2 is turned ON.
M Key
Switches screens.
F Key
Executes functions that are being set.
▲▼keys
Increases or decreases (to change) the setting value.
(Pressing each key continuously will increase/decrease the value more quickly.)
