5
3.
Inst
alla
ti
on

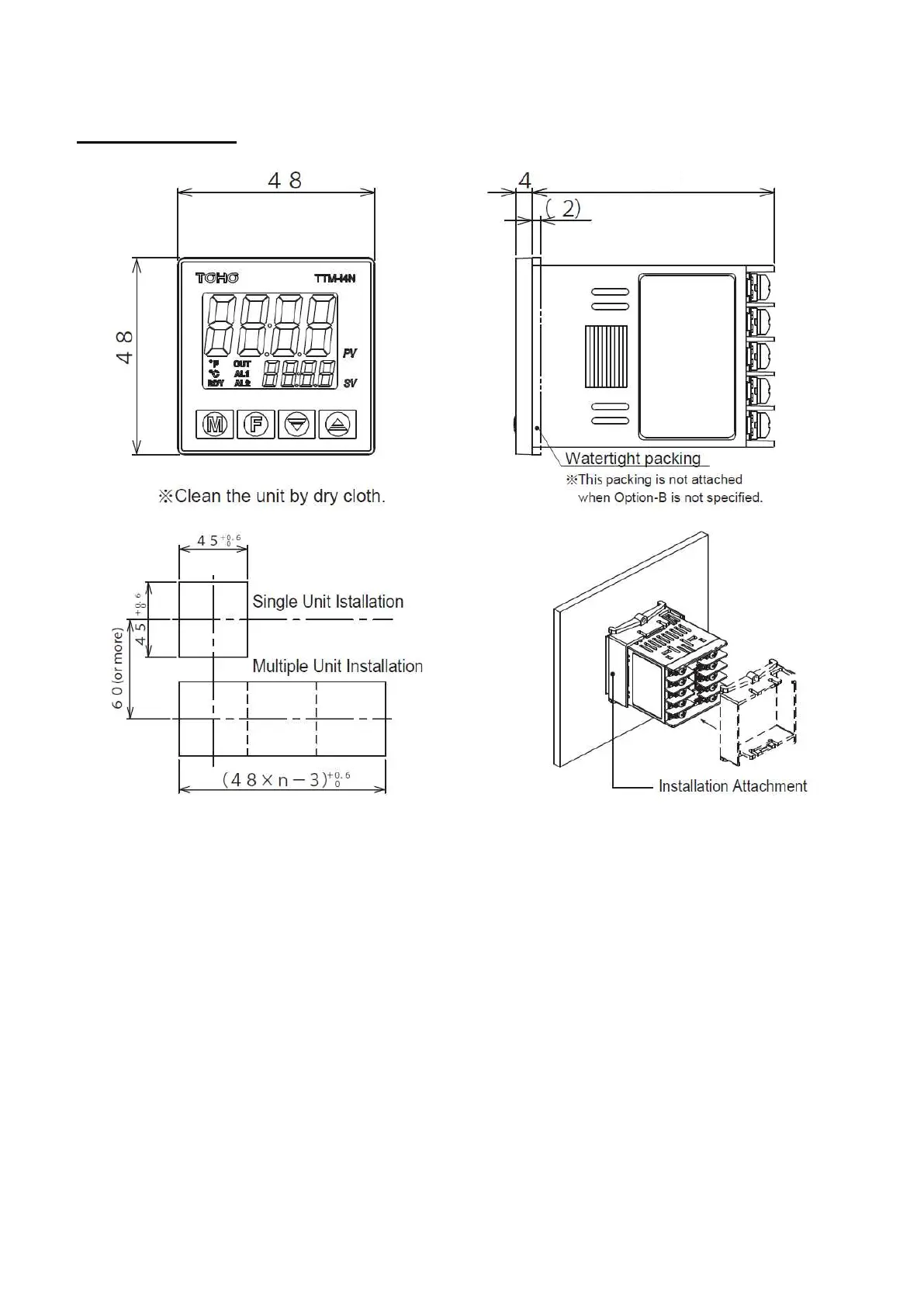

3.1 Dimensions
3.2 Installation an
d Dimensions of Panel Cut
Attach the product either vertic
ally (upper surface of the product shou
ld be facing up) or horizontally.
How to Attach: Place the pro
duct into an angle hole of the panel cut and
completely insert the attachment from the su
rface
without any gap.
６３
4
6
Table of Contents
Default Chapter
1
Table of Contents
1
1 Precautions Upon Usage
2
Safety Precautions
2
Warning Symbols and Their Meanings
2
Example of Symbols
2
2 Name and Function of Parts
4
Installation and Dimensions of Panel Cut
5
Terminal Layout for Wiring
6
Caution Upon Wiring
6
5 List of 7-Segment Characters
7
6 Operation Flow and Parameters
8
Display Sections
8
PV Display Section
8
SV Display Section
8
Operation Keys
9
Operation Flow
9
M Key
9
F Key
9
Protect Setting Mode
11
Priority Screen Parameter Mode
11
Input Parameter Mode
12
Key Function Parameter Mode
13
Control Parameter Mode
14
Event 1 Output Parameter Mode
17
Event 2 Output Parameter Mode
18
Timer Parameter Mode
19
LCD Parameter Mode
20
Parameters
21
Operation Mode
21
Priority Screen Setting Mode
22
Priority Screen Setting
22
Input Type Setting
23
Input Type Setting Table
23
PV Compensation Gain Setting /Zero Setting of PV Correction
24
PV Compensation Gain Setting
24
Zero Setting of PV Correction
25
Setting of PV Filter
26
Decimal Point Setting
27
Temperature Unit Setting
27
Function Key Function Setting
28
Digit Shifting Key
28
Run/Ready
28
Start At/Stop at
28
Key Lock Settings
29
Alarm Reset
29
Minimum/Maximum Limit of SV Limiter
30
Control Mode Setting
30
Control Type Setting
31
Output Type of Output 1
31
Output Type of Output 2
31
Tuning Type Setting
32
Settings about Control
32
Reverse Action
32
Direct Action
32
Manipulated Variable of Output 1
33
Setting of Tuning Type
33
AT Coefficient Setting
34
AT Sensitivity Setting
34
Proportional Band Setting for OUT1
35
Integral Time Setting
36
Derivative Time Setting
36
Proportional Cycle Setting for OUT1
37
Setting of Anti-Reset Windup
37
Operating Amout Limiter Upper Limit for OUT1
38
Operating Amout Limiter Lower Limit for OUT1
38
Sensitivity Setting for OUT1
39
OFF Point Position Setting for OUT1
39
Setting of the Loop Abnormality Judgment Time of Output 1
41
Setting of the Loop Abnormality PV Variation of Output 1
41
Setting of the Loop Abnormality PV Threshold of Output 1
42
Proportional Band Setting for OUT2
44
Sample Setting
44
Proportional Cycle Setting for OUT2
44
Operating Amout Limiter Upper Limit for OUT2
45
Operating Amout Limiter Lower Limit for OUT2
45
Setting of the Sensitivity of Output 2
46
OFF Point Position Setting for OUT2
46
Setting of the Loop Abnormality Judgment Time of Output 2
49
Setting of the Loop Abnormality PV Variation of Output 2
49
Enable/Disable Balance-Less Bump-Less Function
52
Manual Reset Setting
52
Dead Band Setting
53
SV Ramp Time Setting
54
Control Backup Function Setting
55
Output Parameter Mode
56
Event Function
58
Deviation Upper and Lower Limits
58
Deviation Upper Limit
58
Deviation Lower Limit
58
Control Mode Interlock Function
59
EV1 Alarm Function 2 Setting/Ev2 Alarm Function 2 Setting
59
EV1 Alarm Function 3 Setting/Ev2 Alarm Function 3 Setting
60
Setting of Event 1 Output Polarity/Setting of Event 2 Output Polarity
60
Timer Output Setting
61
Setting of Timer Function
62
Automatic Start (on Delay, off Delay)
62
OFF Delay
63
Manual Start (on Delay, off Delay)
63
Event 1/2 Start (on Delay, off Delay)
64
Setting of the Unit of Timer
65
Setting of Start SV Permission Range
65
Time Setting
66
Remaining Time Monitor
66
Brightness Setting/Light Reduction/Brightness of Light Reduction
67
Brightness Setting
67
Dimming Function Setting
67
Change to Blind Setting Mode
68
Other Displays
69
Err0
69
Err1
69
Err2
69
7 List of Models
70
8 Before Performing a Control
71
ON/OFF Control
71
PID Control
71
General Specifications
72
Insulation Diagram
72
Rated Values and Performance
73
10 Maintenance and Inspection
74
Nothing Is Displayed on Screen
74
Control Is Insufficient
74
Abnormal Output
74
