4. Wiring

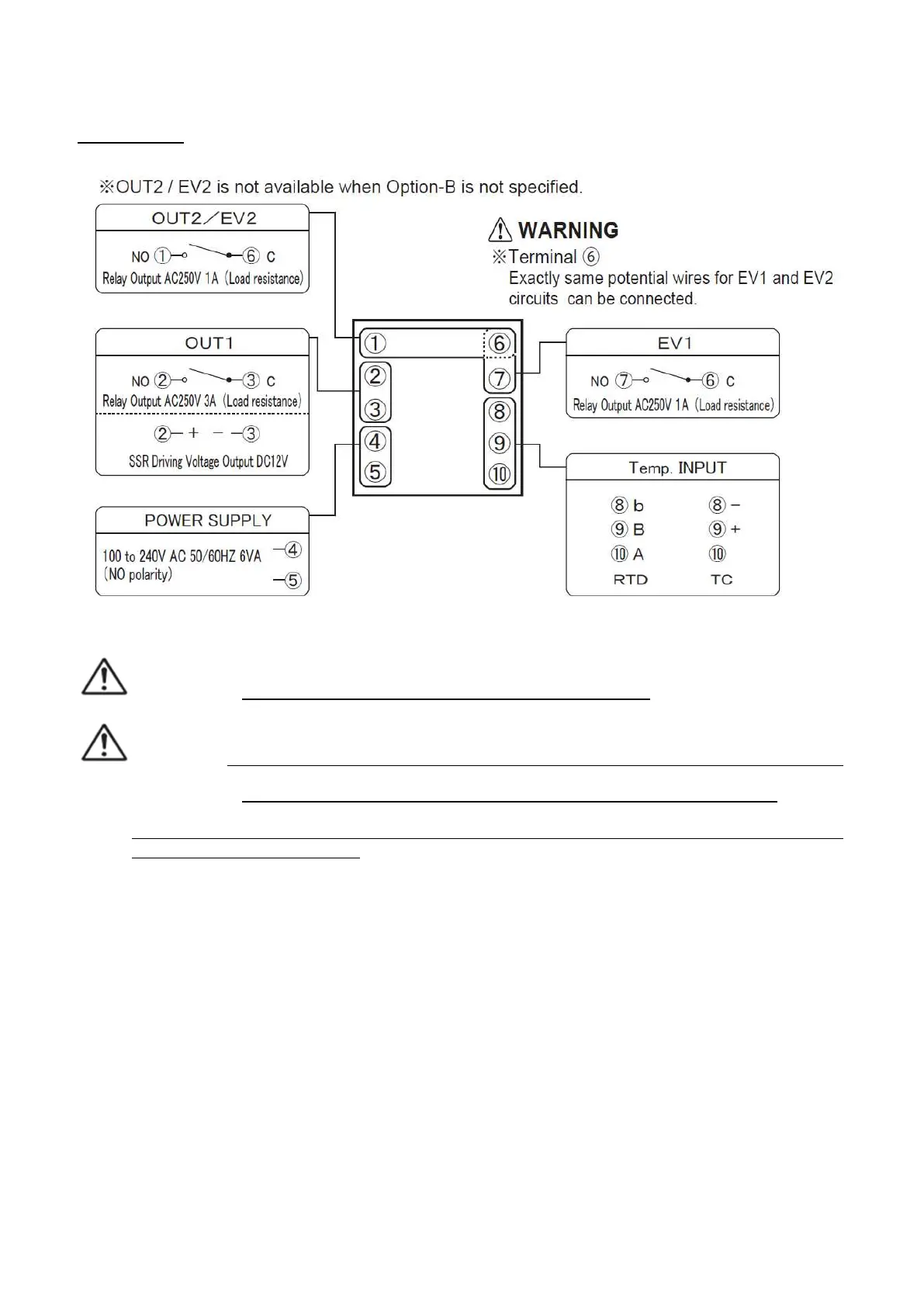

4.1 Terminal Layout for Wiring
4.2 Caution upon Wiring
Warning: Turn the power OFF before wiring to avoid the risk of electric shock.
Caution:This product will not perform any control for approximately 4 seconds after turning its power ON
(produces no output).Please be careful if you will be using this product as an interlock circuit.
･Check the wiring with the operation manual to make sure that input terminal, power terminal, option terminal, and other
such terminals are connected correctly.
･ Upon wiring, use the crimped terminal that fits with the M3.5 screw (squeeze the wire into the center of the terminal).
･For the connection between the resistance temperature detector and the product, use the wire with the resistance of less
than 5Ω (per wire).
･For the connection between the thermocouple and the product, use the prescribed compensating lead wire or the wire
itself.
･ Use the radio shield wire if the product is to be used near the noise source. Do not wire the input-output line in the same
duct or conduit tube.
･Separate the input-output signal line from both power and load lines with the distance of at least 50cm.
･ Do not connect anything to the blank terminal.
