TOHO TTM-i4N - Setting of the Loop Abnormality Judgment Time of Output 2; Setting of the Loop Abnormality PV Variation of Output 2

49
■ Setting of the Loop Abnormality Judgment Time of Output 2
Character Name Description Initial Value
1
SET3
CNT
Setting Mode Selection
Screen
Control Parameter Mode
Settings about Control
33
LOP2
Setting of Output 2 Loop
Abnormality
Judgment Time
Setting Range: 0–9999
Setting Unit: Second
※ Setting “0” will turn the judgment on loop abnormality OFF
0
A function that detects the abnormality in Output 2 loop.
・ It detects “PV Variation” per “LoP2” time.
 It detects “Loop Abnormality” if the value is less than “PS2.”
■ Setting of the Loop Abnormality PV Variation of Output 2
Character Name Description Initial Value
1
SET3
CNT
Setting Mode Selection
Screen
Control Parameter Mode
Settings about Control
34
PS2
Setting of Output 2 Loop
Abnormality
PV Variation
Setting Range: 0-999 or 0.0-999.9
Setting Unit: °C or °F
※ Setting "0" will turn the judgment on loop abnormality PV
variation OFF
0

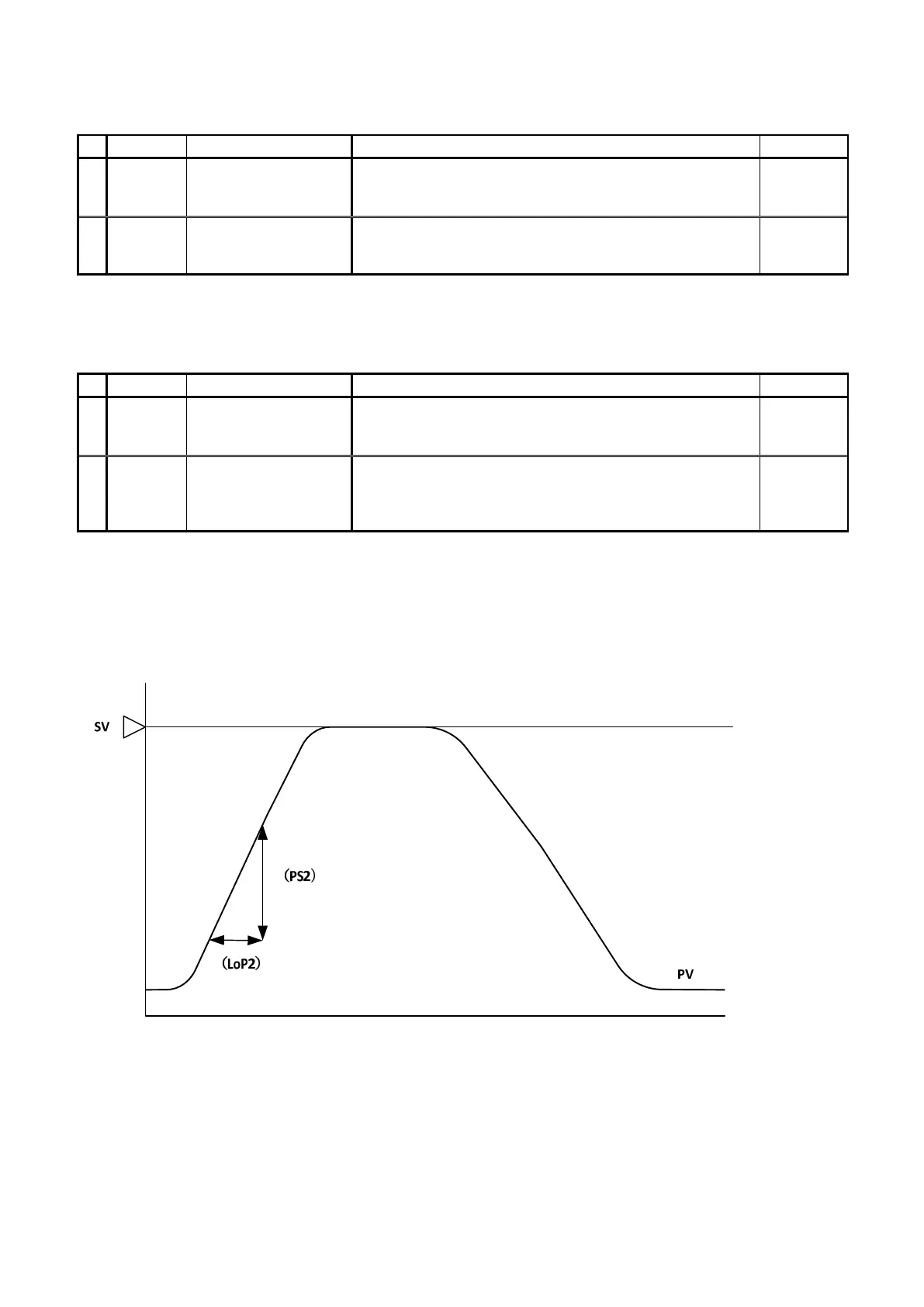

A function that detects the abnormality in the control loop.
If tS2 satisfies the threshold value, the judgment on the following loop disconnection takes place:
・ It detects “PV Variation” per “LoP2” time.
・ It detects “Loop Abnormality” if the value is less than “PS2.”
・ If PS2 = 0, only the judgment on time by LoP2 will be performed. If the time duration in which tS2 satisfies the threshold
exceeds LoP2, then it detects “Loop Abnormality.”
