６. Operation Flow and Parameters

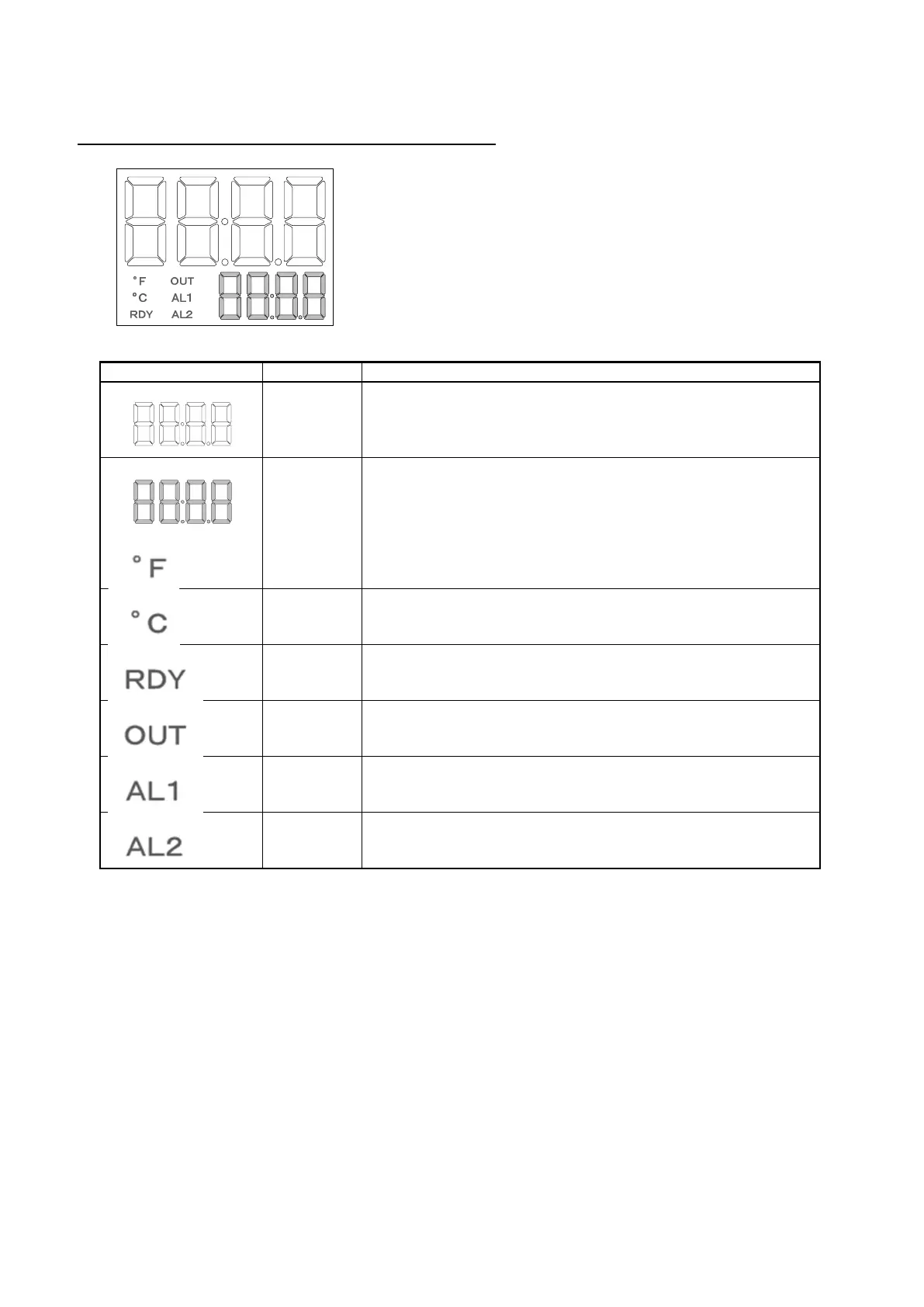

6.1 Display Sections
Display Sections Color Description
PV Display Section White • Displays measurement values and characters that have been set.
SV Display Section Green • Displays setting values and manipulated variables.
°F Yellow • Lights up when the setting value is a temperature data with the unit
of °F.
°C Yellow • Lights up when the setting value is a temperature data with the unit
of °C.
RDY Display Yellow • Lights up when the control mode is RDY.
OUT Display Yellow • Lights up when OUT1 is turned ON.
AL1 Display Yellow • Lights up when Event 1 Output is turned ON.
AL2 Display Yellow • Lights up when Event 2 Output is turned ON.
 If heat/cool control is selected, it also lights up when OUT2 is turned ON.
