3D Scan
Move on the inside of the square, which is composed of the given start point and end point, horizontally
and vertically by the step divided by the given resolution.
Radial Scan
In the scan range, perform scanning by the specified diameter and by the step divided by the given res-
olution. The start point for Line-Scan and rotating direction are reversed for each of right and left eyes.
For the right eye, rotation is done counterclockwise in the horizontal direction. For the left eye, rotation
is done clockwise in the horizontal direction.

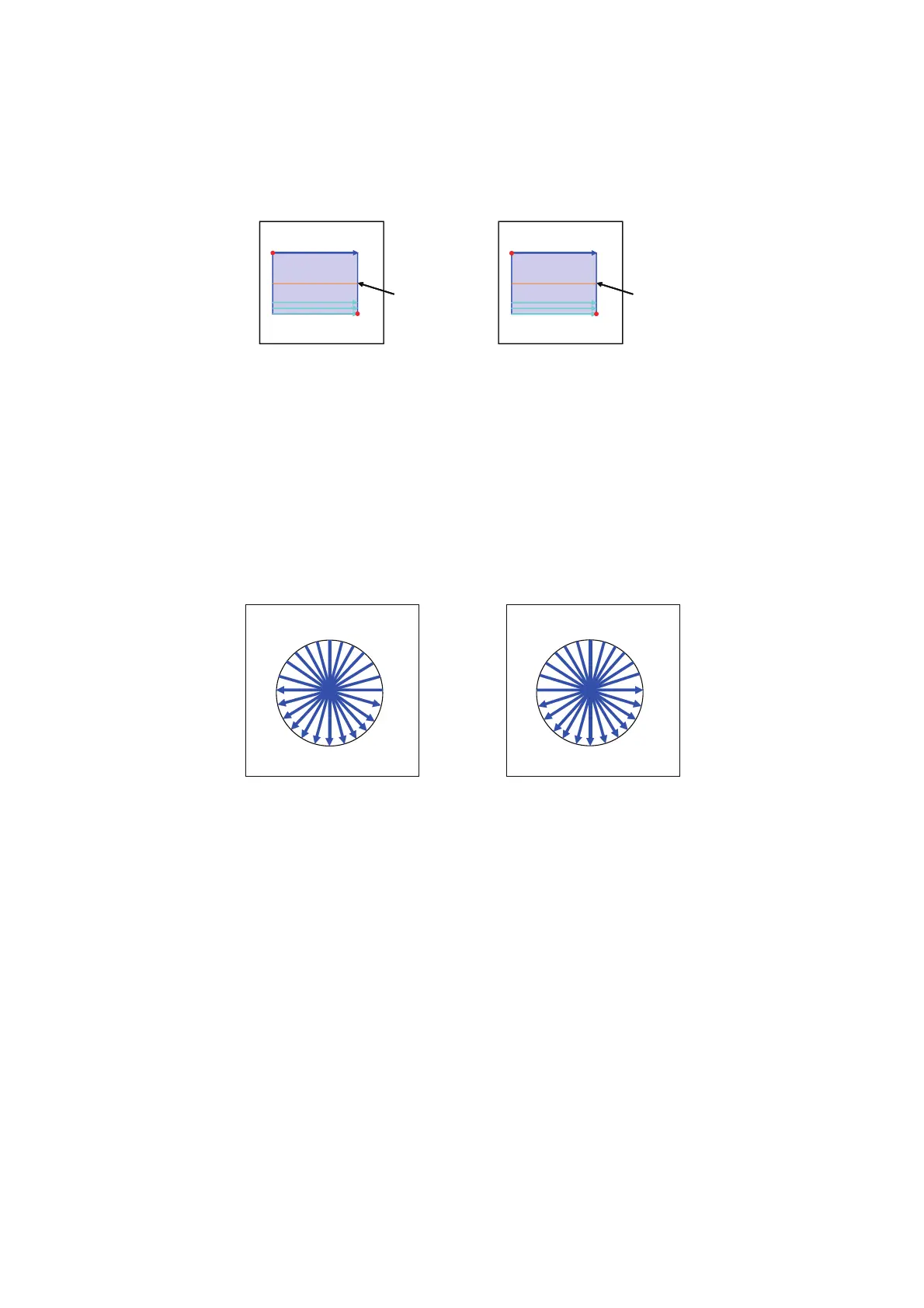

[3D-Scan]
