14
COMPONENTS
NAMES ON THE TOUCH DISPLAY
Display areas and functions on the touch display
Information is displayed on the touch display and you can perform a variety of operations by touch-
ing the screen.

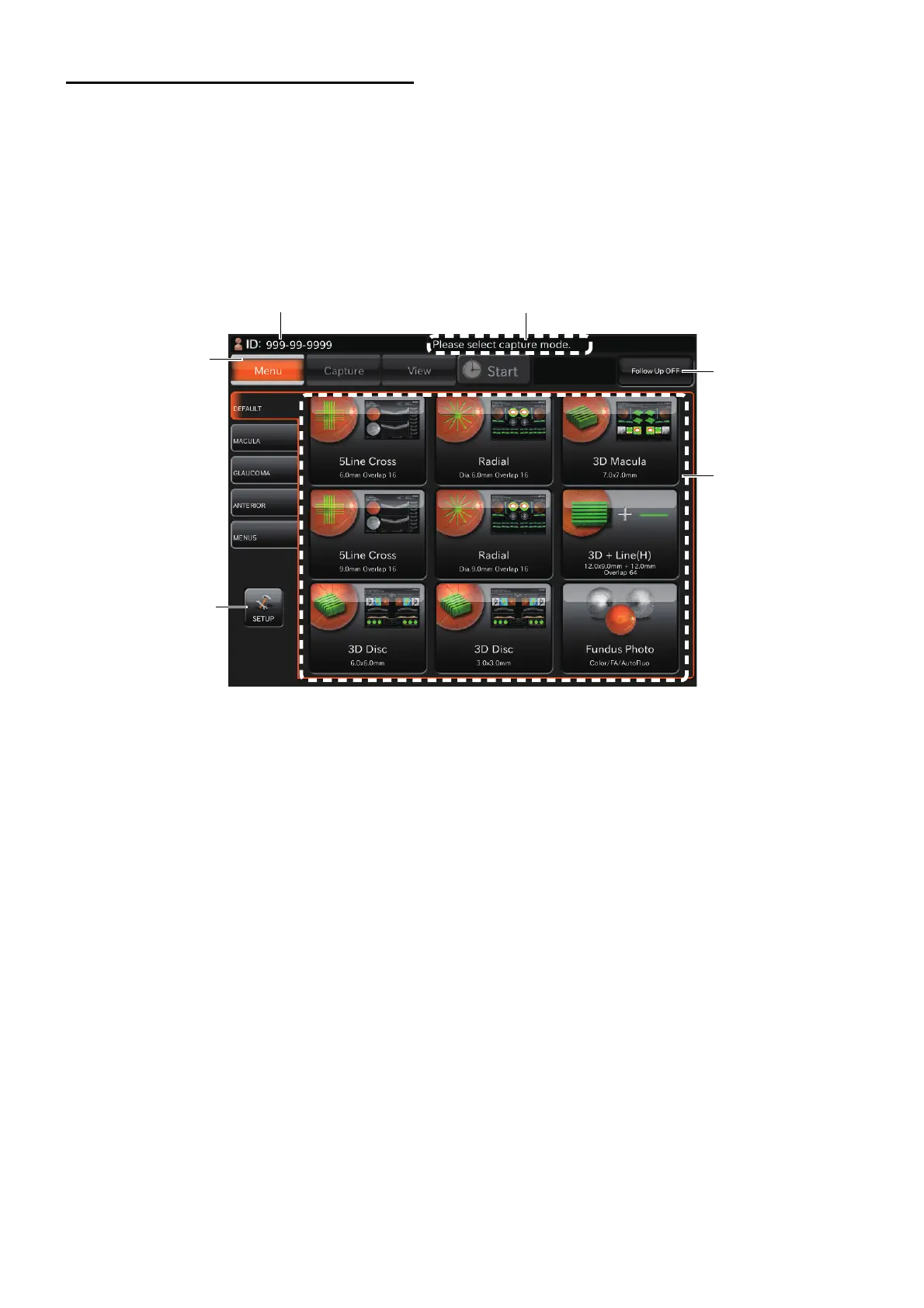

Capture icon selection screen
You can select the optimal mode for various types of photography.
Patient ID display area : Displays the patient ID.
Capture icon tab : By selecting a tab, the capture icons registered in each tab are dis-
played.
[SET UP] button : Shifts to the setting menu screen.
Message display area : Displays the message.
Capture icon display area : Displays the capture icons.
[Follow-up] button : • Each time you press this button, "Follow-up ON" (button is orange)
and "Follow-up OFF" (button is black) is changed each other. In
case of "ON", Follow-up photography is done. In case of "OFF", it
is not done.
• Follow-up photography is applied to the following cases.
• Line ("12mm" is not the object of Follow-up photography.)
• 5 Line Cross
• Radial
• When selecting the photography icon to which Follow-up photogra-
phy is unapplied, Follow-up photography is not done even if this
button is set to "ON".
• When the [Follow-up] button is set to "ON", "Follow up" is displayed
in yellow on the capture icon which is applicable to Follow-up pho-
tography.]
Capture icon
display area
Patient ID display area
[SET UP]
button
Message display area
Capture icon tab
[Follow-up]
button
