OBJECTIVE OPERATIONS
FAF PHOTOGRAPHY (DRI OCT-1 Model Triton plus)

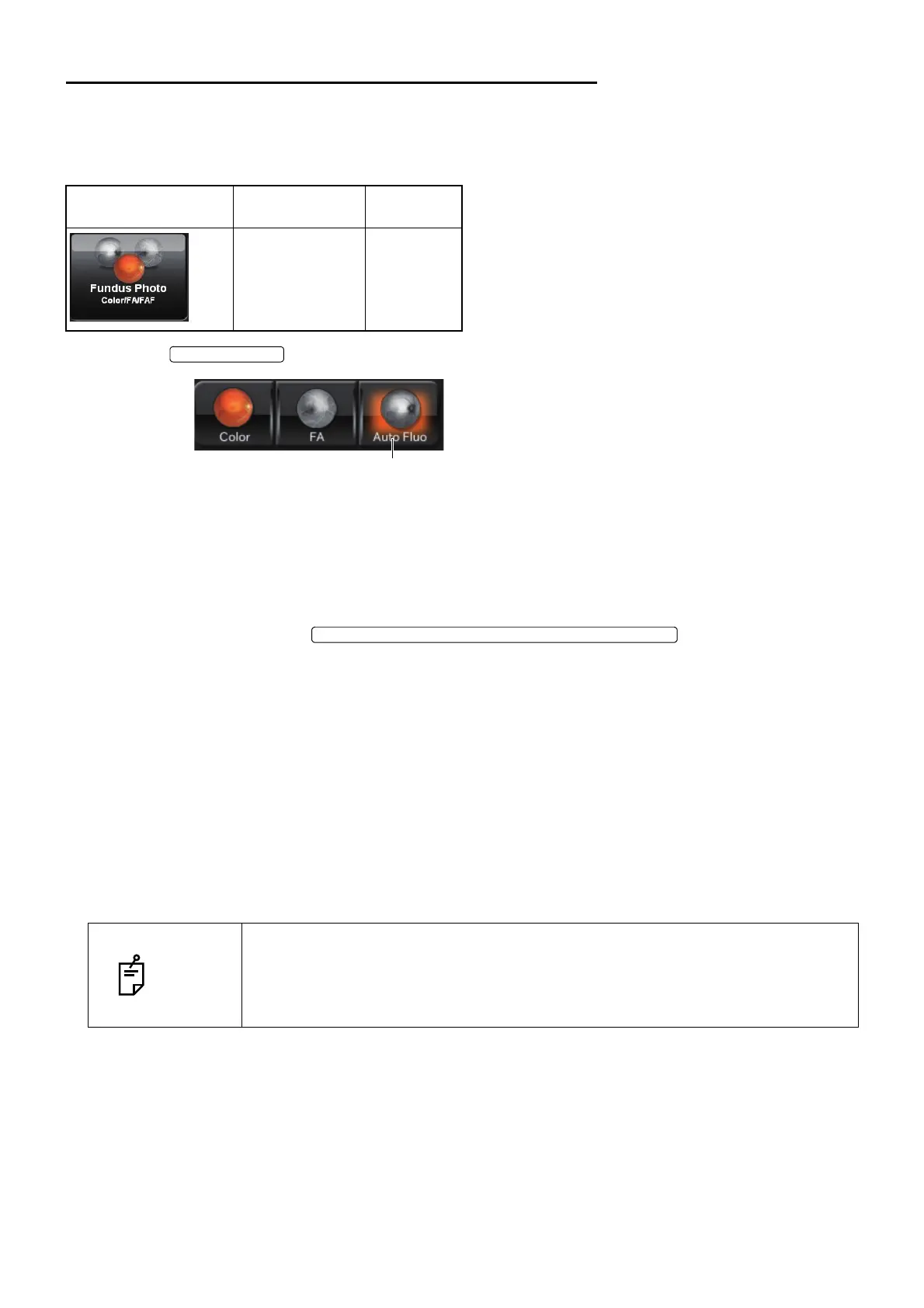

Selecting the capture icon
On the capture icon selection screen, which is the initial screen, select the fundus photography capture
icon.
Select the .
Setting up the patient
Refer to "Setting up the patient" on page 37.
Setting the picture position
If necessary, by touchiing the , change the internal fix-
ation target position (one of “D”,”C” and ”M”) to “D”,”C”,”M” or “External fixation target” and set the
desired picture position.
Setting the illumination level
Set the illumination level by touching the [Illumination level] display on the fundus/anterior segment live
image area. Refer to "Setting the illumination level" on page 40.
Setting the flash level
Set the flash level by touching the [Flash level] display on the fundus/anterior segment live image area.
Refer to "Setting the flash level" on page 40.
Changing the diopter compensation lens
Turn the diopter compensation lens selector to change the diopter compensation lens to "0". Refer to
"Changing the diopter compensation lens" on page 41.
Icon Capture icon
Fixation
position
Fundus Photo Center
NOTE
In the FAF photography, the flash level is automatically changed to the recom-
mended setting (212W·s when the reference value is "0"). For details, refer to
"RELATION BETWEEN THE SETTING OF THE ILLUMINATION/FLASH
LEVEL AND MAXIMUM RADIANCE" on page 118.
