Topcon DRI OCT-1 Triton User Manual

121
REFERENCE MATERIAL
REFERENCE MATERIAL
SCAN PATTERN SPECIFICATIONS

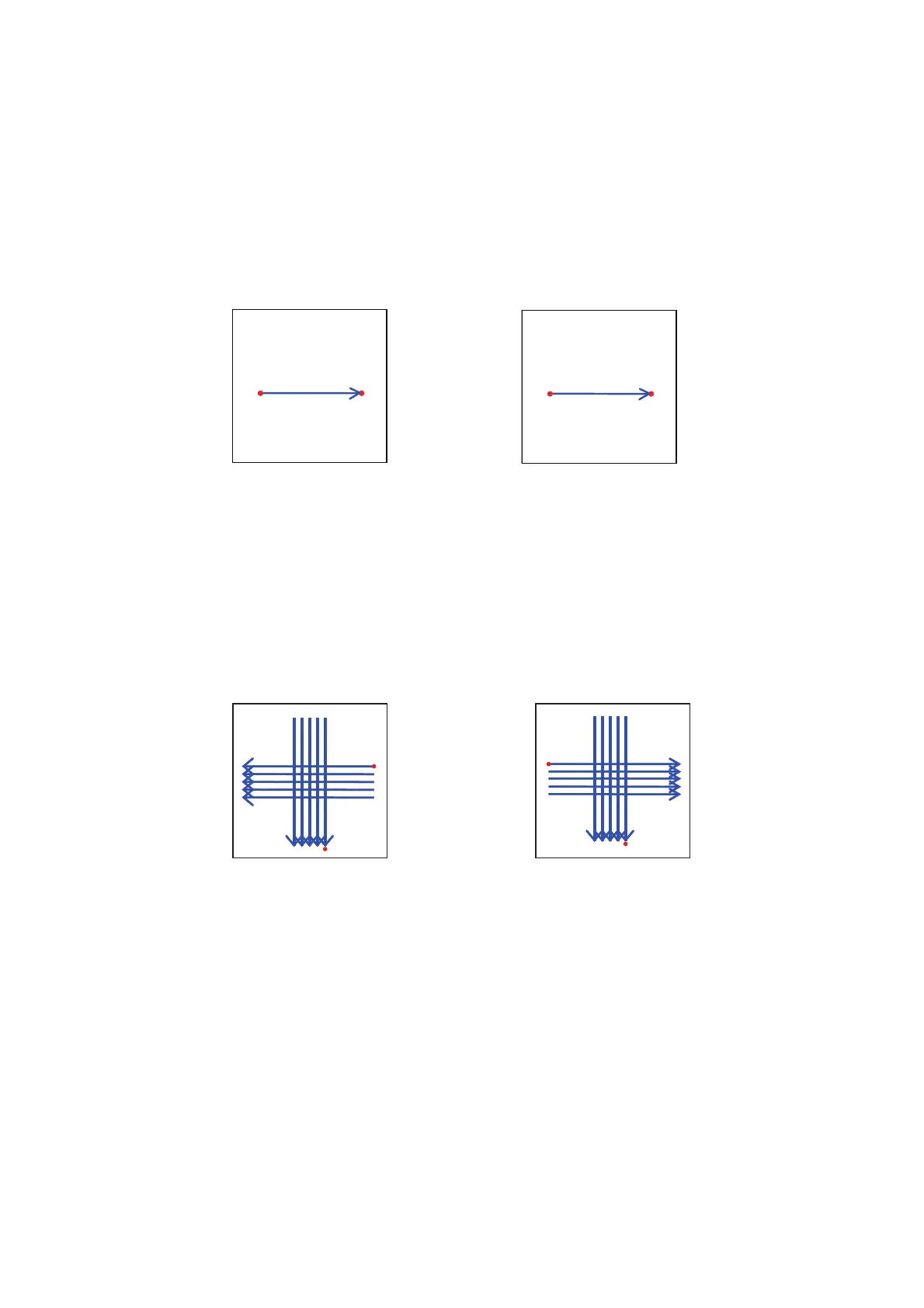

Line Scan
In the scan range, move on the line (blue line in the figure below), which connects the coordinates of
the given start point and end point, by the step divided by the given resolution. Be sure to move from
the start point to the end point.
5 Line Cross Scan
In the scan range, move on the five cross lines (blue lines in the figure below), which pass through the
center point, by the step divided by the given resolution. You can select one of 0.15mm, 0.20mm,
0.25mm, 0.30mm and 0.35mm for the interval between five lines (step). Be sure to move from the start
point to the end point.
Left eye
Right eye
S
S
I
TNNT
S:superior
I :inferior
T :temporal
N :nasal
I
Start
point
End
point
Start
point
End
point
1
678910 678910
2
3
4
5
1
2
3
4
5
S
S
I
I
Left eye
Right eye
NNTT
End
point
Start
point
End
point
Start
point
