Connector Specifications

P/N 7010-0816

A-13

Power Connector

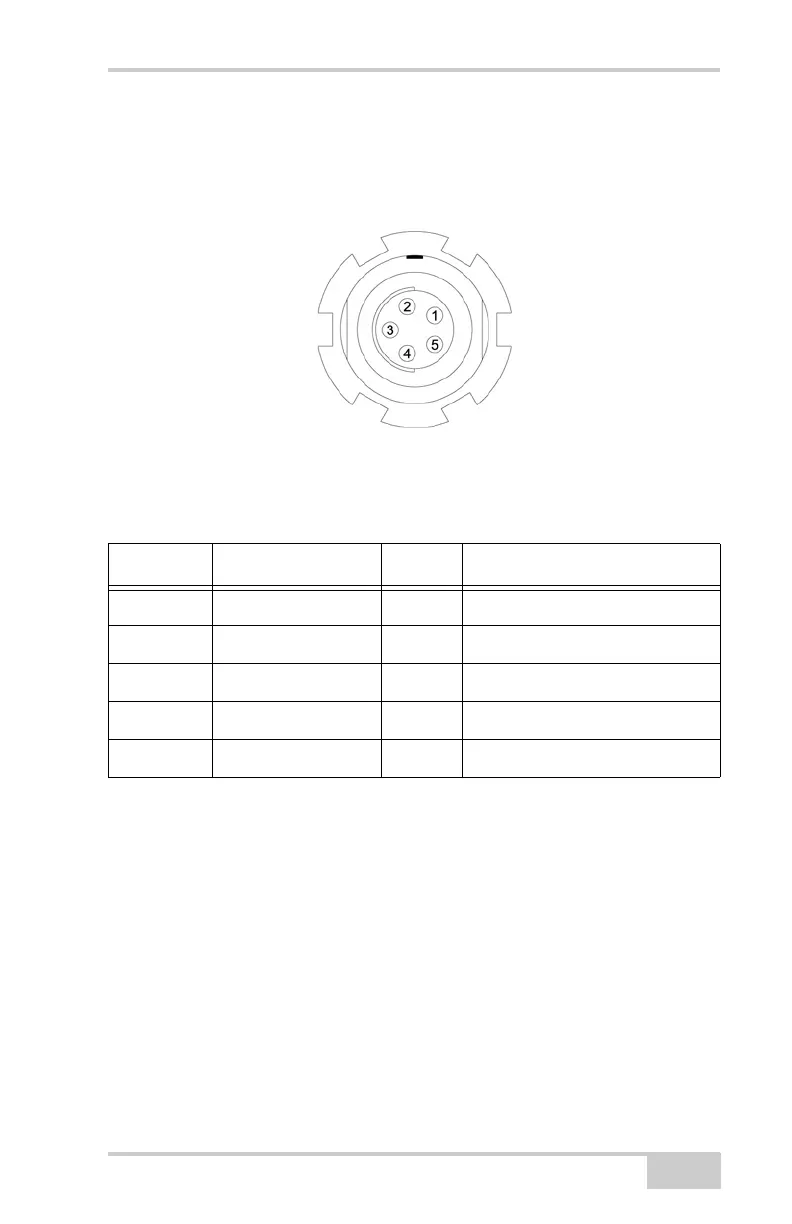

The power connector (Figure A-1) is a sealed receptacle, 5 pin, ODU

part number 23-000009-02.

Figure A-1. Power Connector

Table A-10 gives power connector specifications.

Table A-10. Power Connector Specifications

Number Signal Name Dir Details

1 Power_INP P 6 to 28 volts DC input

2 Power_INP P 6 to 28 volts DC input

3 Power_GND P Ground, power return

4 Power_GND P Ground, power return

5 Not used
