HiPer Ga/Gb Operator’s Manual
A-14
Serial C-RS232 Connector
For ports A and D. The RS232 connectors (Figure A-2) are sealed
receptacle, 7 pin, ODU part number 23-000008-02.

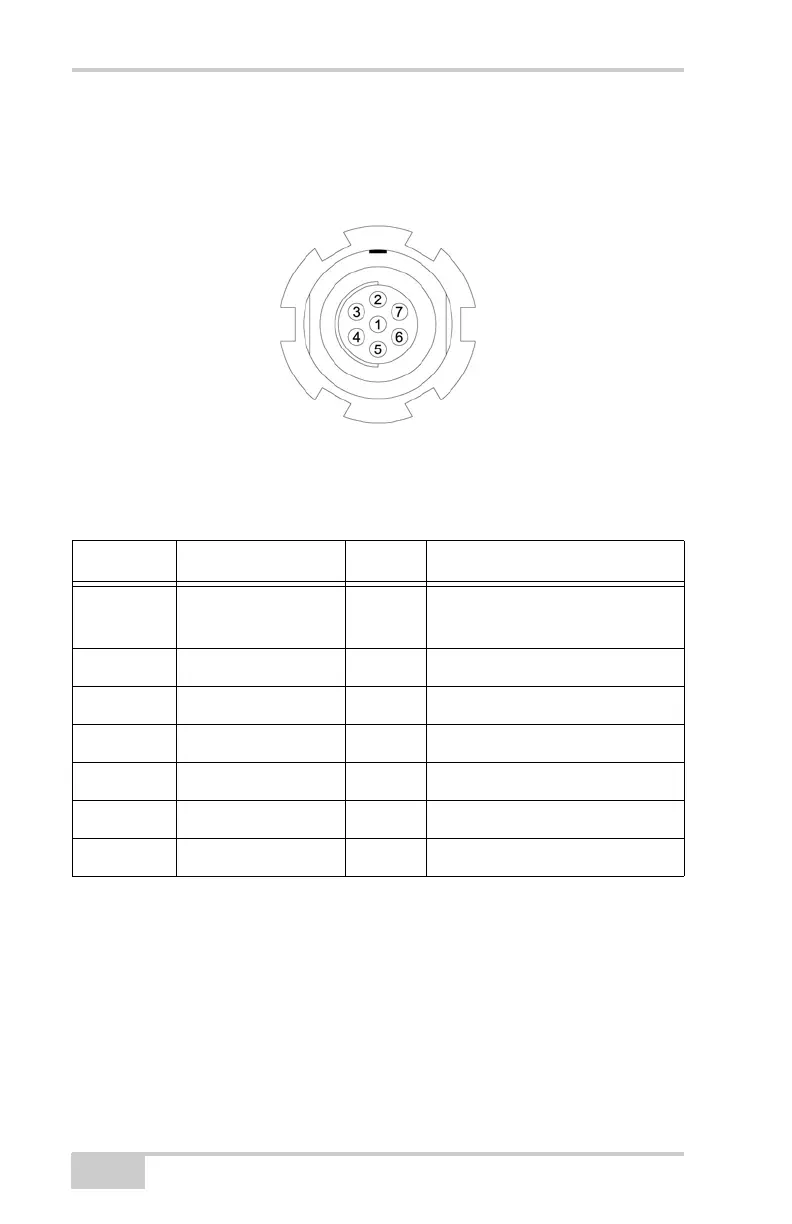

Figure A-2. RS232 Connector
Table A-11 gives the RS232 cable connector specifications.
Table A-11. RS232 Connector Specifications
Number Signal Name Dir Details
1 Power_OUT P Power Output
(Supplied Voltage)
2 GND - Signal ground
3 CTS I Clear to send
4 RTS O Request to send
5 RXD I Receive data
6 TXD O Transmit data
7 Not used
