The frequency range of the modem depends on the country in which
the receiver is used: for North America, the frequency range is
410 to 470; for all other countries, contact your local distributor.
Other features include serial and USB data ports, a power port, and a
MINTER for viewing status and controlling data input/output. These
features are described on the following pages.
HiPer Ga/Gb Receiver
The HiPer Ga/Gb receiver’s advanced design reduces the number of
cables required for operation, allowing for more reliable and efficient
surveying. The casing allocates space for a Bluetooth
®
wireless
technology module, a multi-system receiver board, and a radio
modem communications board.
The HiPer Ga/Gb comes with a Digital UHF TX/RX radio modem.
Other features include three data ports, a power port, and a MINTER
for viewing status and controlling data input/output.
MINTER
The MINTER is the receiver’s minimum interface used to display and
control data input and output (Figure 1-2). The slant height measure
mark (SHMM) is used when measuring the height offset of the
receiver.

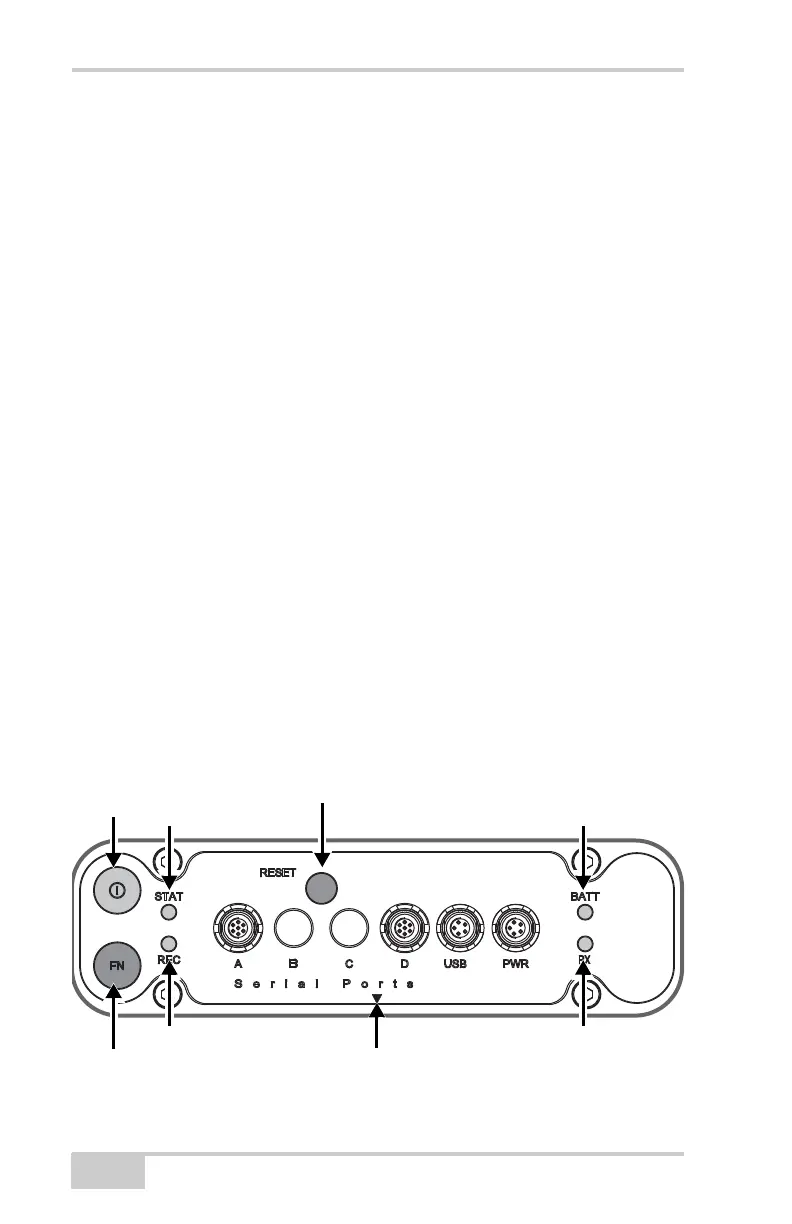

Figure 1-2. HiPer Ga/Gb MINTER
Record LED
Slant Height Measure Mark
Modem Status LED
FN Button
Power
Button
Status LED
Reset Button
Battery LED
