Configuring the Receiver
P/N 7010-0816
3-7
7. Launch PC-CDU and set up the receiver to run as an RTK Base
station.

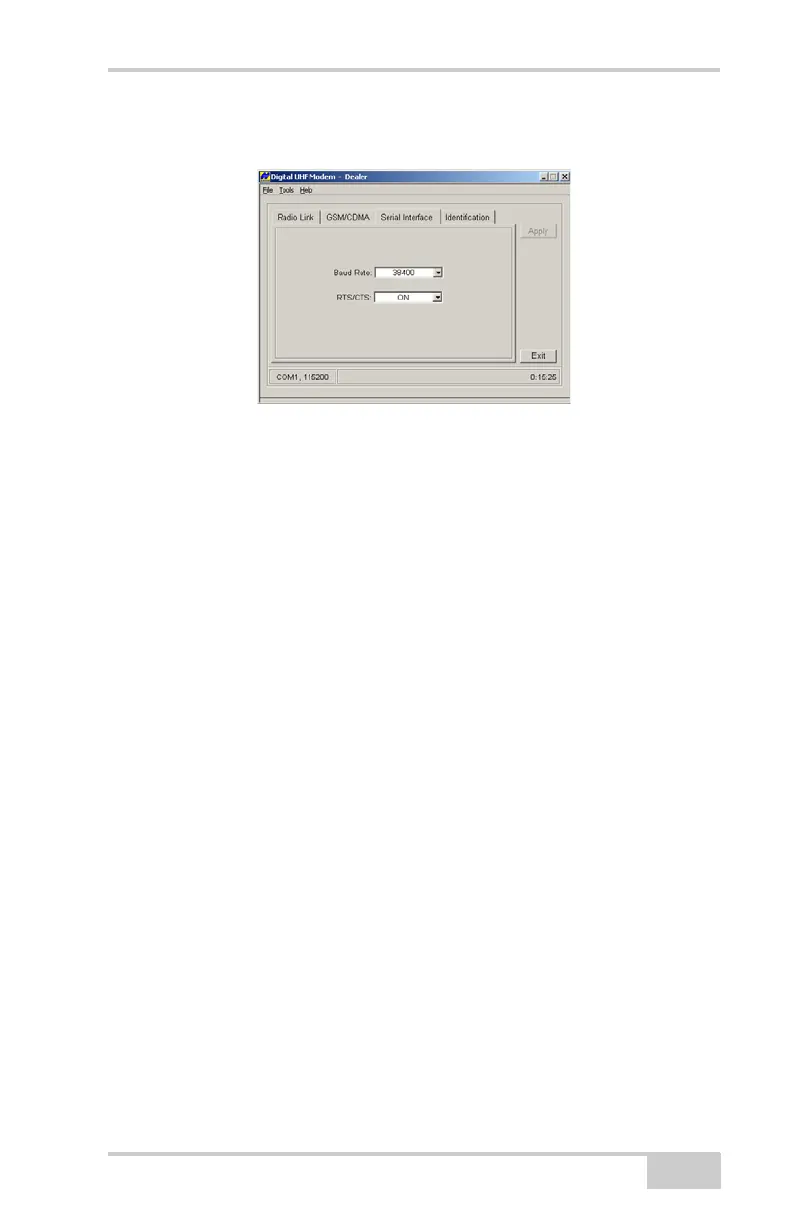

Figure 3-3. Apply Baud Rate Parameters
Configuring the Receiver
The HiPer Ga/Gb can be configured in several ways for collecting
data for RTK or post-processing.
• A static Base station collects measurement information and saves
this data to its internal memory.
• An RTK Base station collects measurement information,
determines differential corrections, and transmits them to the
RTK Rover(s).
• A static Rover collects observation data from the same satellites
during the same time interval as the static Base station.
• An RTK Rover collects measurement information and accepts
corrections from the RTK Base station to compute its relative
position.
• A Rover acting as a repeater to re-transmit RTK Base station
measurements to other rover receivers, extending the range of a
GPS system.
