HiPer Ga/Gb Operator’s Manual
1-14
Data and Power Ports
The receiver has the following ports (Figure 1-3 on page 1-14):
• Two serial ports:
– Port A used for communication between HiPer Ga/Gb and a
controller or any other external device.
– Port B used internally to connect the receiver board with the
optional Bluetooth module.
• PWR – The power input port to which an external power source
(+6 to +28 V DC) is connected and where the unit is charged.
• USB – Used for high-speed data transfer and communication
between the receiver and an external device.
• Slant height measure mark (SHMM).

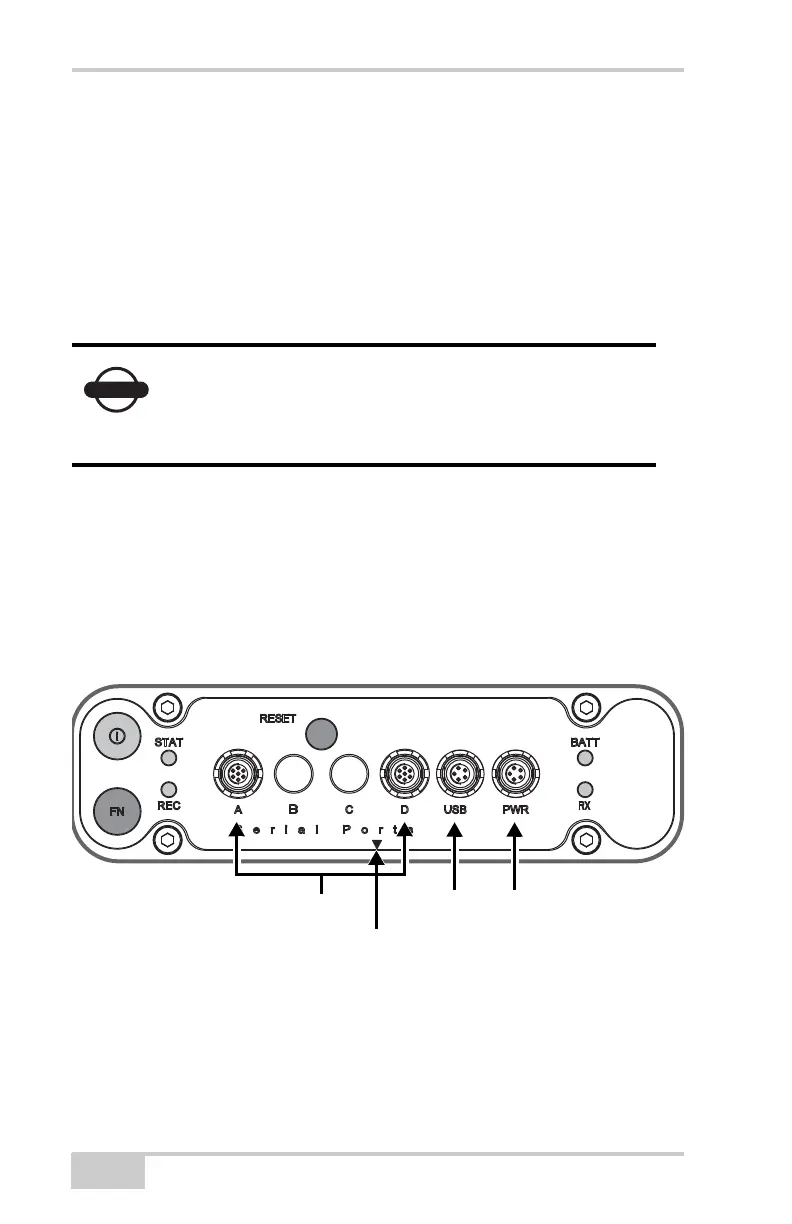

Figure 1-3. HiPer Ga/Gb Ports
NOTICE
Changing the receiver’s Port B default settings will
affect the Bluetooth link. The default settings for
Port B are: 115200 bps, 8 data bits, 1 stop bit, no
parity, and no handshaking.
Slant Height Measure Mark
Serial Ports A–D USB Power
