Topcon ISOCAN - Extension Cable Kit Ref. P;ART2;EXT;4 M (Option for Trailed Drills)

ISOCAN / ISOBUS ARTEMIS - SEED DRILL CONTROLLER
8

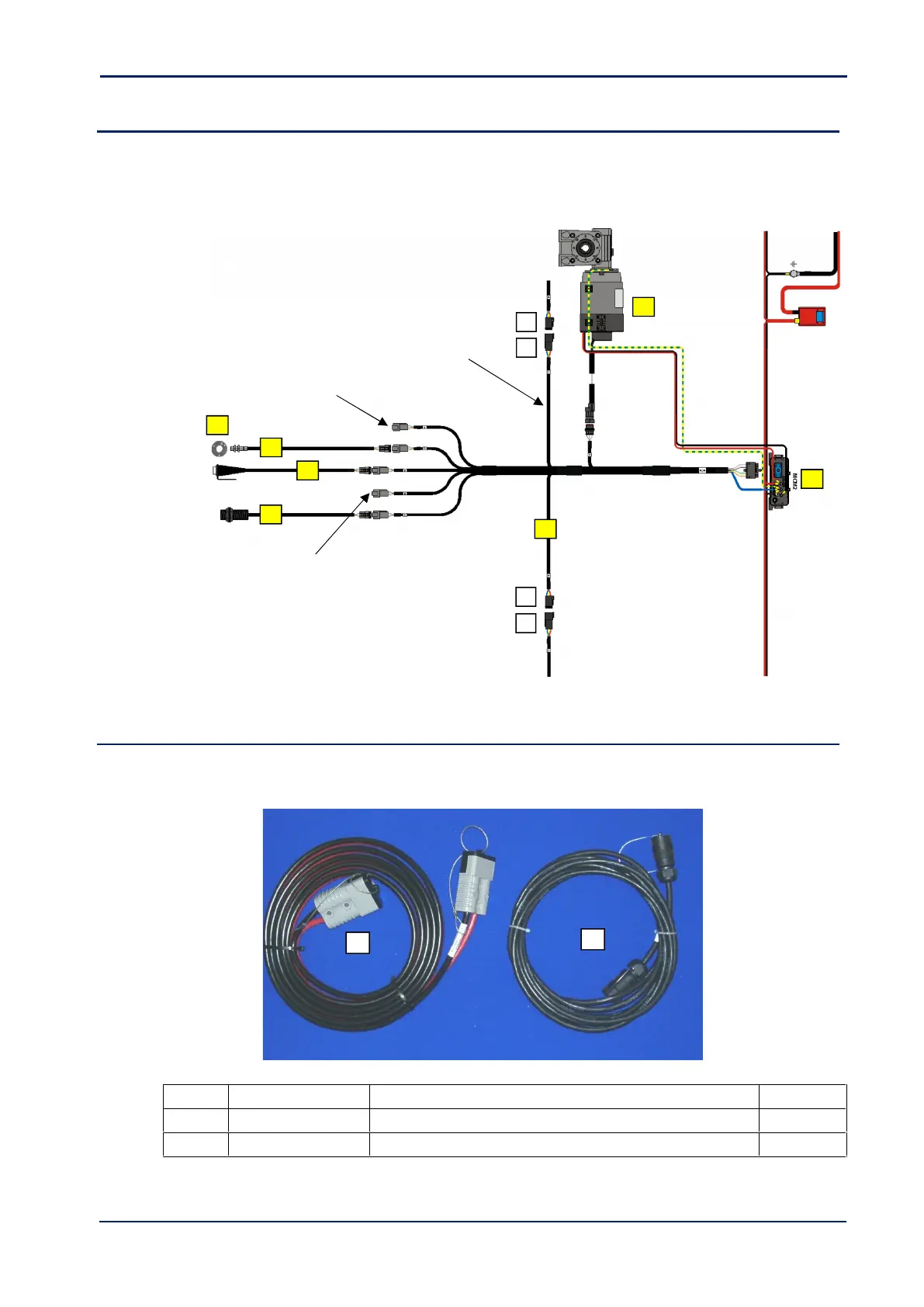

1.5 2, 3 and 4-motor systems Schematic
Kit Ref.: P/ART3/2ND (with motor) or P/ART3/2NDNM (Motor not included)
For multi-channel systems, 1, 2 or 3 additional motor kits are daisy-chained via connectors ‘B’ and ‘C’ of the Expansion
Harness ref. Pt No. S/TC/1015540-01.
Figure 4
1.6 Extension Cable Kit Ref. P/ART2/EXT/4M (option for trailed drills)
A 4m extension cable kit for use with trailed drills.
Figure 5 : Kit Ref. P/ART2/EXT/4M : Cable Extension Kit.
Item #
Part No.
Description
Qty
70
S/CB/318-1-022
Power Supply Extension Cable – 4m
1
71
S/CB/318-1-021
Instrument Extension Cable – 4m
1
‘MCM’ CAN
Module
B
C
B
C
S/TC/1015540-01
Expansion Harness
Motor
Priming Switch
Seed Shaft 1
Confirmation
Sensor
Hopper level 1
sensor
46
45
49
44
52
50
48
Seed Shaft 2
Confirmation Sensor
(optional)
Hopper level 2 sensor
(optional)
71
70
