5 Wiring

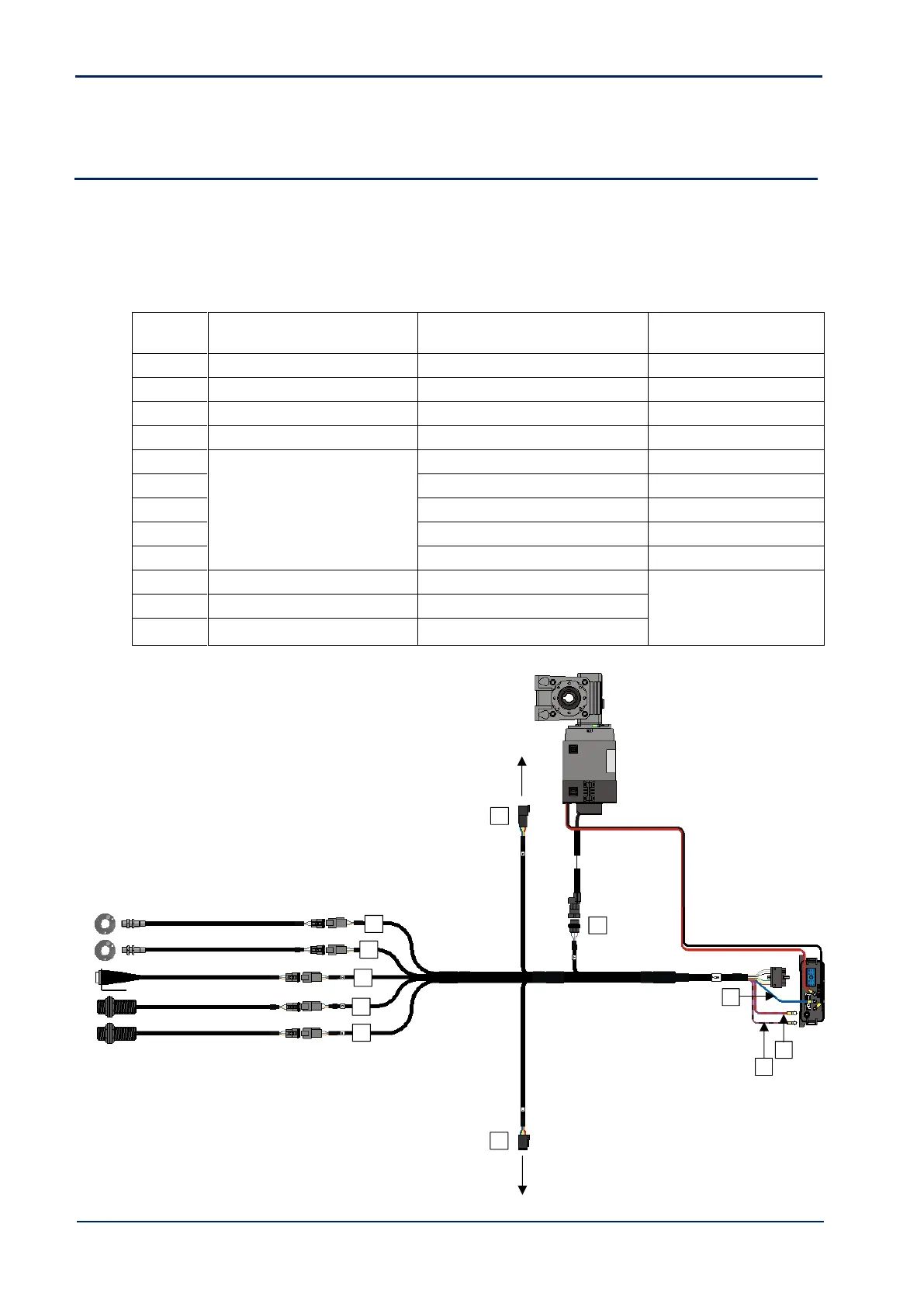

5.1 MCM – Expansion Harness and Sensors
For multi-channel installations, kit P/ART3/2ND or P/ART3/2NDNM (no motor) also include this harness, which is
designed to be daisy-chained via connectors ‘B’ and ‘C’.
The Expansion Harness connects Hopper Level sensor(s), Shaft Confirmation sensor(s), Priming Switch and Motor
Encoder.
NOTE: Unmated connectors should be protected from dust and moisture ingress by suitable means.
A
Connector
ID
Connector
Function
Notes
MCM
Cinch 18way
MCM
‘A’
AMP Superseal 1.5 3way Socket
Motor Encoder
‘B’
Deutsch DT06-6S
Expansion In (Power/CAN)
‘C’
Deutsch DT04-6P
Expansion Out (Power/CAN)
‘D’
Deutsch DT04-3P
Hopper Level Sensor 1 (Lower)
S/SR/201-2-006 (Std)
‘E’
Hopper Level Sensor 2 (Upper)
S/SR/201-2-006 (Optional)
‘F’
Shaft Confirmation Sensor 1
S/SR/500-2-107 (Std)
‘G’
Shaft Confirmation Sensor 2
S/SR/500-2-107 (Optional)
‘H’
Priming Switch
S/SW/500-7-019 (Std)
‘I’
Blue wire / ring terminal
0V
In combination, sets MCM
ID as ‘MCM-1’, ‘MCM-2’,
‘MCM-3’ or ‘MCM-4’ (Ref.
5.1.1)
‘J’
Pink/Black wire / ring terminal
MCM ID
‘K’
Purple/Red wire / ring terminal
MCM ID
A
B
I
D
E
F
G
H
J
K
C
MCM-1
To ECU
To next Expansion Harness
