ISOCAN / ISOBUS ARTEMIS - SEED DRILL CONTROLLER
30

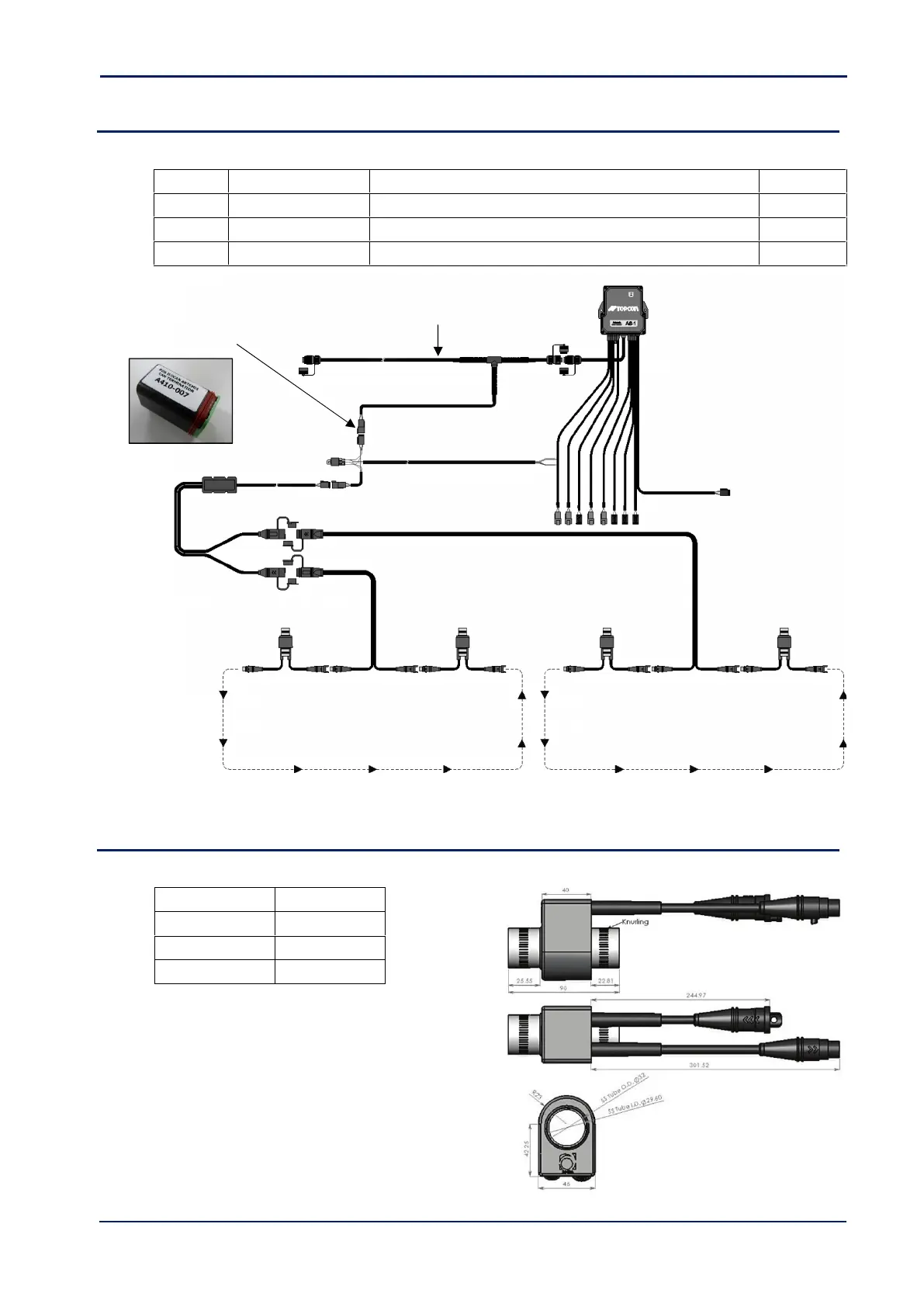

6.2 Dual-product setup (Kit: P/BLOCK/DUAL)
Item #
Part No.
Description
Qty
90
S/AC/500-4-150
Blockage ECU (dual-product)
1
91
S/CB/500-1-163
‘Y’ Cable
2
92
S/CB/500-1-176
Blockage ECU Power Harness
1
Note: Schematic applicable to systems with up to 60 sensors per channel.
6.3 Sensors
Sensors are supplied seperately and are available in three sizes,
Part No.
Pipe bore
S/SR/500-2-099
30mm
S/SR/500-2-100
32mm (1-1/4”)
S/SR/500-2-101
38mm (1-1/2”)
Sensors are supplied without clamps.
S/CB/410-3-020 Instrument
Extension Lead [41]
[92]
Power Supply
Blockage ECU (Dual-product)
1
st
sensor
Last sensor
[91]
[91]
[90]
1
st
sensor
Last sensor
SEED
FERT
Remove CAN
termination resistor
