Topcon ISOCAN - ISOBUS Artemis ECU (AS1)

ISOCAN / ISOBUS ARTEMIS - SEED DRILL CONTROLLER
27

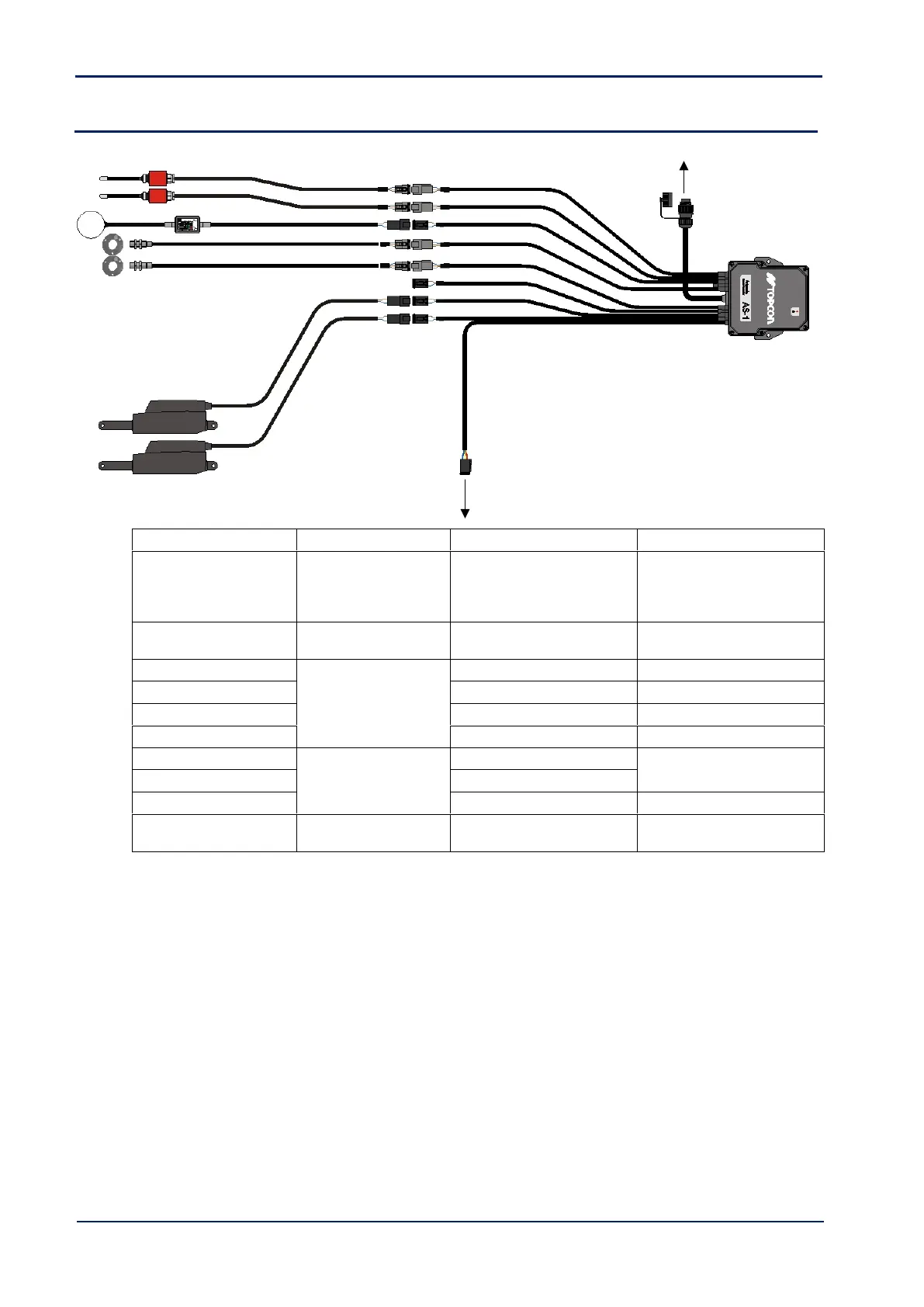

5.2 ISOBUS Artemis ECU (AS1)
NOTE: Unmated connectors should be protected from dust and moisture ingress by suitable means.
Cable ID
Connector
Function
Notes
(Not labelled)
Amphenol ‘CA’ 6way +E
Plug
ISOBUS / ISOCAN link
Connects to either ISOCAN Head
Unit via cable S/CB/410-1-026,
or to ISOBUS IBIC connector via
cable S/CB/500-1-156
(Not labelled)
Deutsch 6way Plug
DT06-6S
CAN/Power (MCM)
Connects to MCM-1
“AREA CUTOUT”
Deutsch 3way Receptacle
DT04-3P
Area Cutout Switch
S/SW/500-7-018 (Std)
“LOWER SWITCH CUTOUT”
Lower Cutout Switch
S/SW/500-7-018 (optional)
“FAN 1”
Fan Speed 1 Sensor
S/SR/201-2-006 (Std )
“FAN 2”
Fan Speed 2 Sensor
S/SR/500-2-107 (optional)
“TL 1”
Deutsch 4way Receptacle
DT04-4P
Tramline 1 Mechanism
Connection cable not supplied
“TL 2”
Tramline 2 Mechanism
“HALF-WIDTH”
(No function)
Not connected
“SATSPEED”
Deutsch 4way Plug
DT06-4S
Forward Speed (RDS “Satspeed
2”)
S/SR/385-2-006
CAN/Power to
Expansion Harness
connector ‘B’
ISOBUS
Extension Cable
S/CB/500-4-020
