Topcon ISOCAN - Motor Rotation; Motor Connections

ISOCAN / ISOBUS ARTEMIS - SEED DRILL CONTROLLER
13
Due to design variations between drill makes and models, it is not possible to supply mounting brackets or motor drive
shaft components to guarantee universal fitment. The installer must arrange/provide:
 Suitable mounting bracket for the motor
 Drive shaft/coupling to go between motor and metering unit
 Any other necessary brackets i.e. for seed shaft confirmation sensor(s)

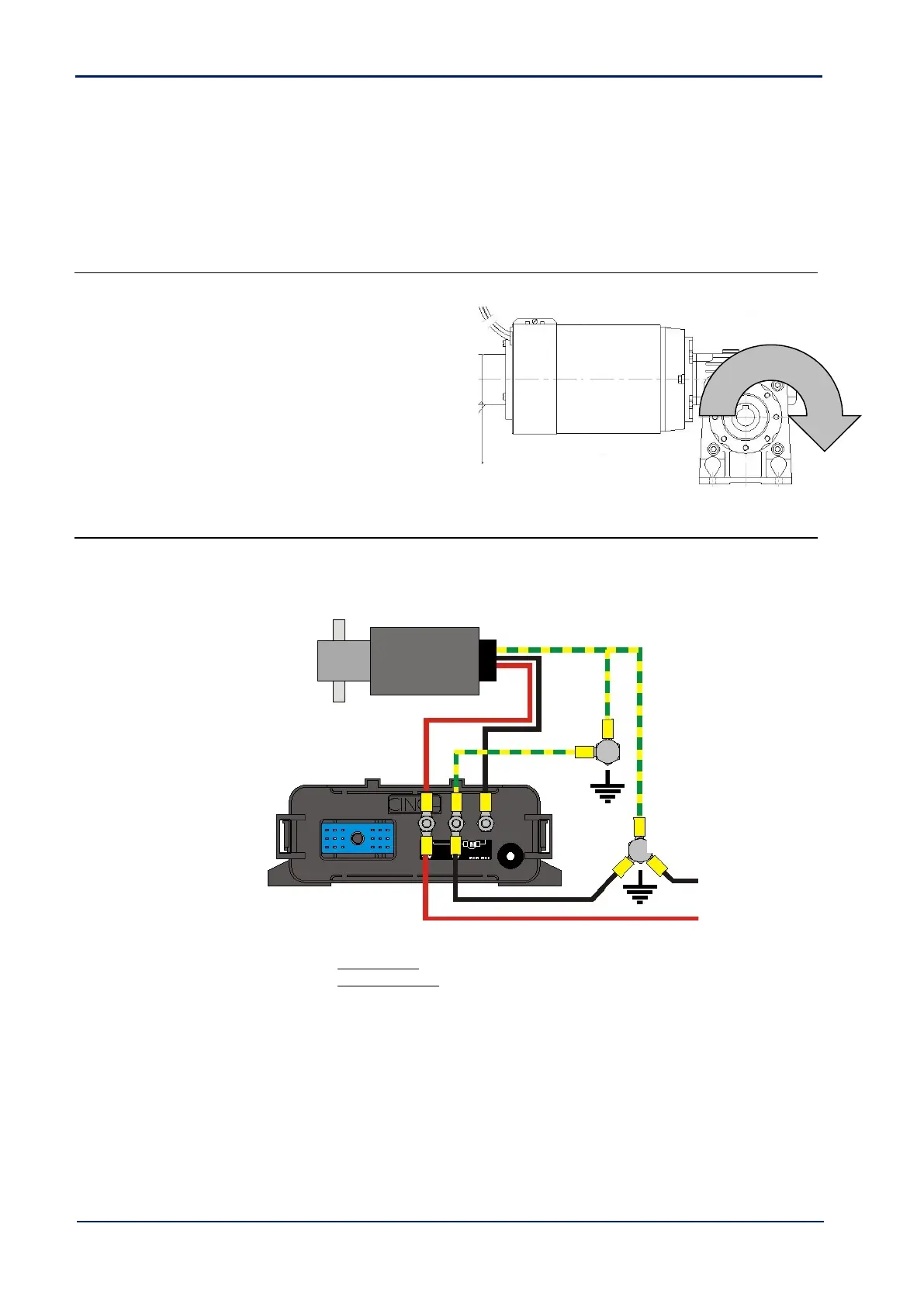

2.1.1 Motor rotation
Looking at the motor as shown, it turns CLOCKWISE
with the red wire to 12V and the black wire to 0V.
Simply reverse the connections onto the MCM to
rotate in the opposite direction.
2.1.2 Motor Connections
Each motor is connected to a Motor Control Module as shown.
NOTE: The motor cable is approx. 1.8m (6 feet) long. Please ensure that the proposed mounting positions for the motor(s) and
MCM(s) allows the cable(s) to reach!
Figure 13
[1] Grounding where MCM is 0.5m or closer from chassis grounding point
[2] Grounding where MCM is further than 0.5m from chassis grounding point
RED TO 12V
BLACK TO 0V
Master Grounding Point
(Ref. section 3.3)
0V Supply
+V
Sup
ply
Motor +V
Motor 0V
Ground [1]
Ground [2]
RED
BLACK
RED
BLACK
YELLOW/GREEN
YELLOW/GREEN
+V Supply
+V
Sup
ply
