6 Blockage monitoring
Either single-channel or dual-channel kits are available to enable dual seed / fert blockage monitoring. Optical blockage
sensors are ‘daisy-chained’ with bi-directional communication to a master ECU, which connects via CANbus to the
Artemis system.
6.1 Single product setup (Kit: P/BLOCK/SIN)
Item #
Part No.
Description
Qty
80
S/AC/500-4-149
Blockage ECU (single product)
1
81
S/CB/500-1-155
20ft (6M) Extension Cable
2
82
S/CB/500-1-176
Blockage ECU Power Harness
1
The master ECU is normally mounted on the front of the drill. The Extension Leads [81] may be required to reach the
distribution head at the back of the drill.
In addition to the 20’ (6M) Extension cables [81] supplied in the kit, the following extension cables are also available as
required,
S/CB/500-1-175 4’ (1.2M)
S/CB/500-1-154 10’ (3M)
S/CB/410-3-020 Instrument
Extension Lead [41]

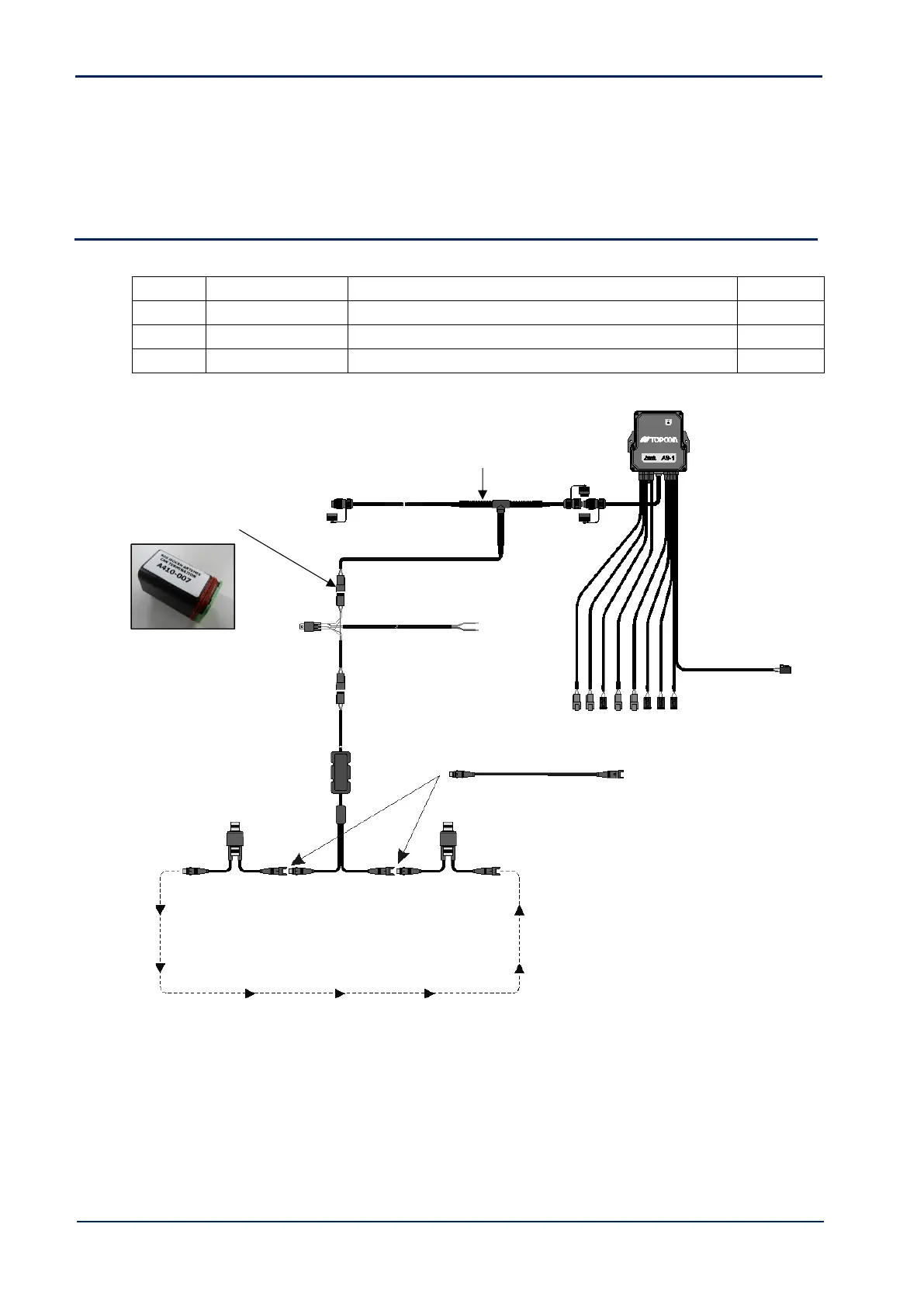

[82]
Power Supply
Blockage ECU (Single product)
1
st
sensor
Last sensor
[81] x 2
[80]
Remove CAN
termination resistor
