Topcon ISOCAN - Solenoid-Type Tramline Mechanisms

ISOCAN / ISOBUS ARTEMIS - SEED DRILL CONTROLLER
24

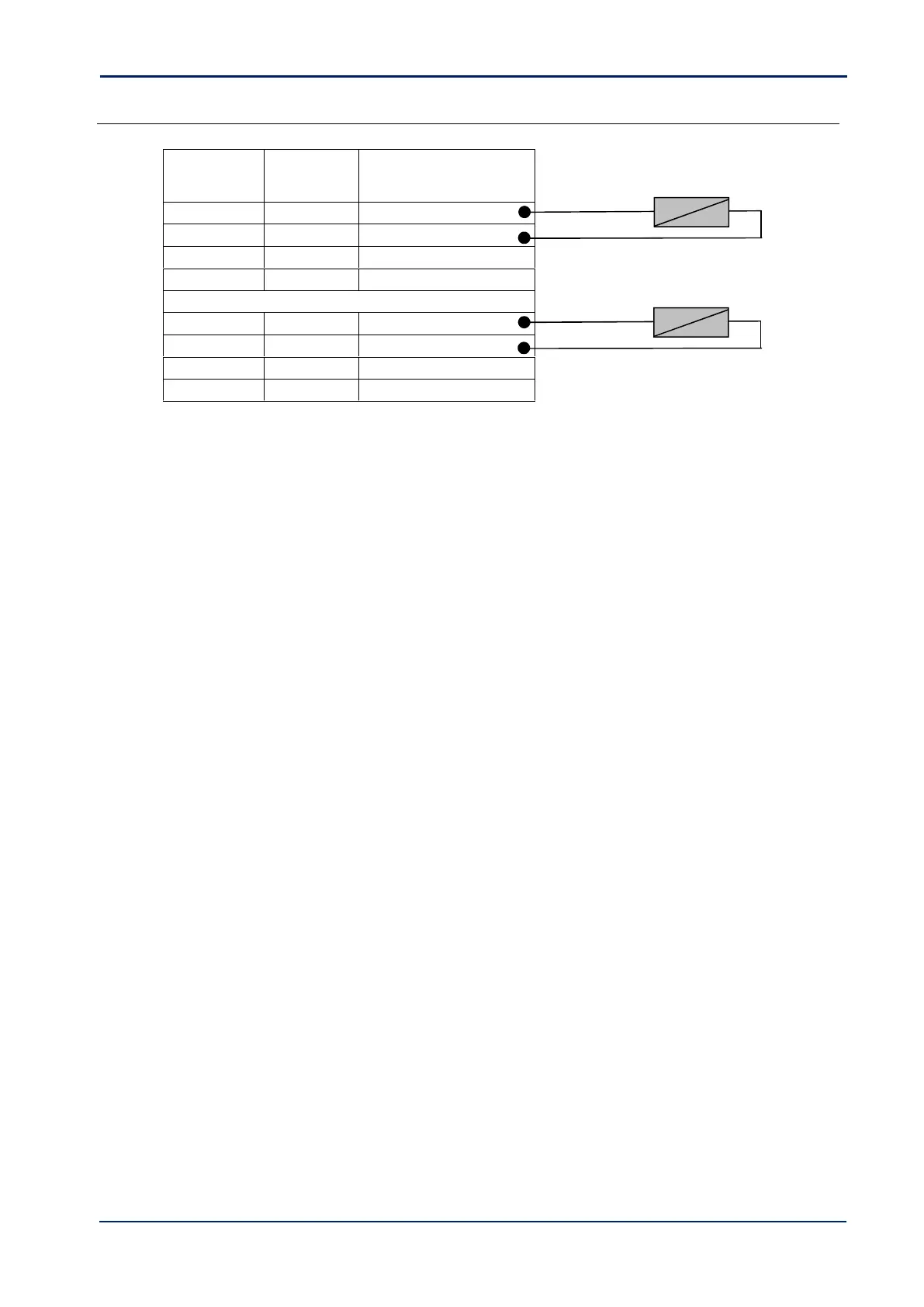

4.4.2 Solenoid-type Tramline mechanisms`
4way Deutsch
Receptacle
(DT04-4P) Pin #
Wire Colour
Function
TL1-1
Yellow/Green
Tramline 1 (Right): +V
TL1-2
Blue
0V
TL1-3
Brown
Tramline 1 (Right): -V
TL1-4
-
-
TL2-1
Yellow/Green
Tramline 2 (Left): +V
TL2-2
Blue
0V
TL2-3
Brown
Tramline 2 (Left): -V
TL2-4
-
-
Right Solenoid
Left Solenoid
