1. Overview
NOTE: Screenshots ilustrated in in this manual may be either as displayed on an ISOCAN, or a Topcon UT, however although the
softkey layout may differ, the menus and functionality are otherwise the same.
1.1 Standard Kits
Various standard kits are available independently or in combination, that enable the Artemis system to be adapted for
almost any drill configuration. The kits are as follows,
P/ART3/ISOCAN
Full kit with motor for a single-motor system with an ISOBUS-compatible RDS “ISOCAN”
Artemis head unit.
P/ART3/ISOBUS
Full kit with motor for a single-motor system connecting to the tractor ISOBUS socket,
utilising the tractor ISOBUS UT.
P/ART3/ISOBUS/NM
Kit as above but without motor (for utilising an existing motor).
For a single-motor system connecting to the tractor ISOBUS socket, utilising the tractor
ISOBUS UT.
P/ART3/2ND
Kit for installing an additional motor.
Required for each additional control channel (Seed / Fert.)
P/ART3/2ND/NM
Kit as above but without motor (for utilising an existing motor).
Required for each additional control channel (Seed / Fert.)
1.2 Drill Configurations and Kits required

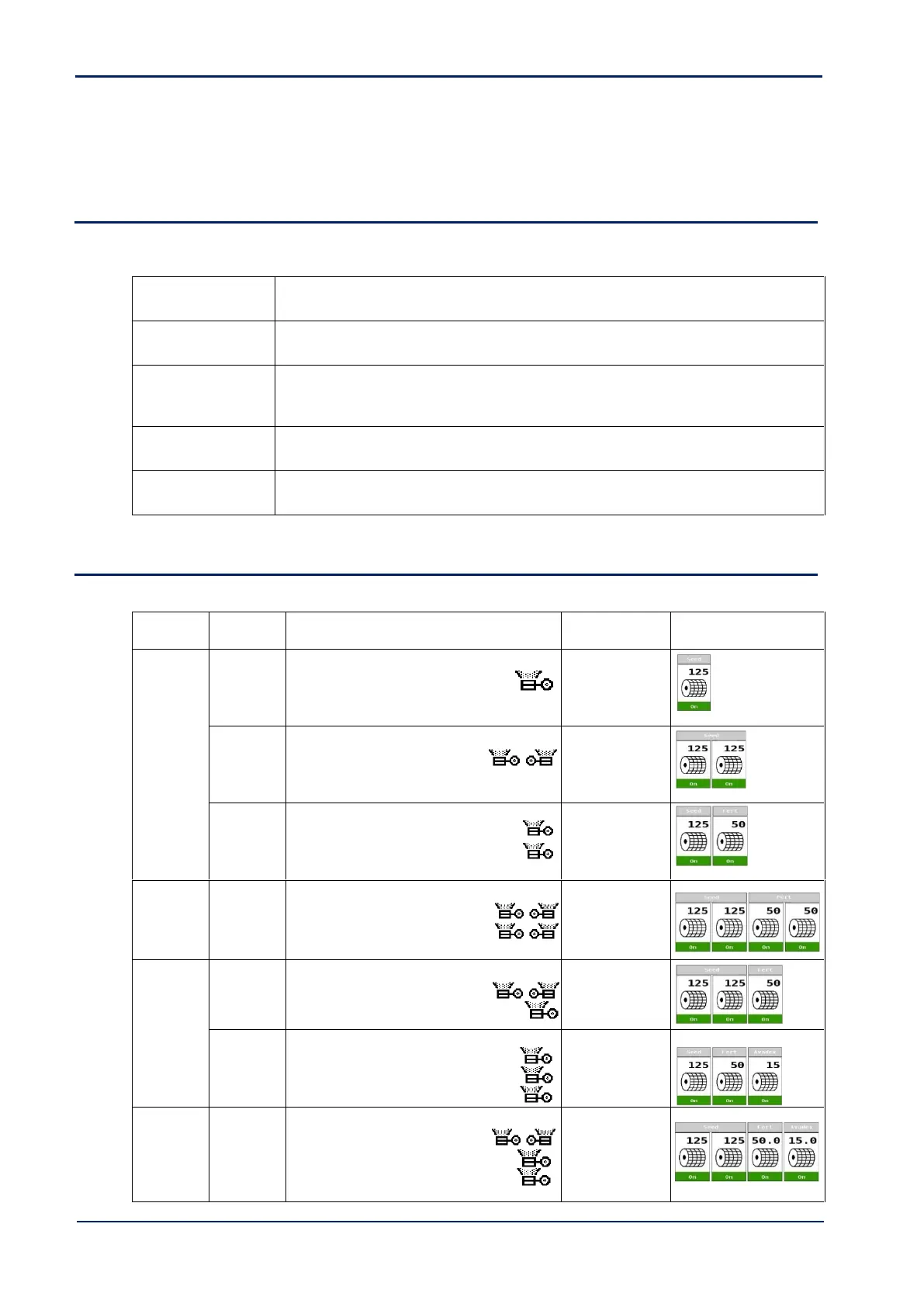

The following table shows some common configurations of an Artemis system and the kits required.
PRODUCT
CHANNELS
PRODUCT /MOTOR / METERING UNIT
CONFIGURATION
KITS REQD
SCREEN DISPLAY
SEED
1
1 PRODUCT
SINGLE MOTOR / METERING
P/ART3/ISOCAN
1+2
1 PRODUCT
2 x SINGLE MOTOR / METERING
P/ART3/ISOCAN
P/ART3/2ND
1
2
2 PRODUCTS
SINGLE MOTOR / METERING (SEED)
SINGLE MOTOR / METERING (FERT)
P/ART3/ISOCAN
P/ART3/2ND
SEED
+
FERTILISER
1+2
3+4
2 PRODUCTS
2 x SINGLE MOTOR / METERING (SEED)
2 x SINGLE MOTOR / METERING (FERT)
P/ART3/ISOCAN
P/ART3/2ND (x3)
SEED
+
FERTILISER
1+2
3
2 PRODUCTS
2 x SINGLE MOTOR / METERING (SEED)
SINGLE MOTOR / METERING (FERT)
P/ART3/ISOCAN
P/ART3/2ND (x2)
1
2
3
3 PRODUCTS
SINGLE MOTOR / METERING (SEED)
SINGLE MOTOR / METERING (FERT)
SINGLE MOTOR / METERING (FERT)
P/ART3/ISOCAN
P/ART3/2ND (x2)
SEED
+
FERTILISER
1+2
3
4
3 PRODUCTS
2 x SINGLE MOTOR / METERING (SEED)
SINGLE MOTOR / METERING (FERT)
SINGLE MOTOR / METERING (FERT)
P/ART3/ISOCAN
P/ART3/2ND (x3)
