Toro 30410 - Hydraulic Control Manifold: 4 Wheel Drive

Groundsmaster 4000--DHydraulic System (Rev. B) Page 4 -- 66
Hydraulic Control Manifold: 4 Wheel Drive
1. Frame assembly
2. Manifold
3. 90
o
hydraulic fitting
4. O--ring
5. O--ring
6. Quick fitting
7. O--ring
8. Fitting cap
9. Hydraulic fitting
10. O--ring
11. O-- ring
12. 90
o
hydraulic fitting
13. O--ring
14. Hydraulic fitting
15. Adapter
16. Hydraulic fitting
17. O--ring
18. Cap screw
19. Flange nut

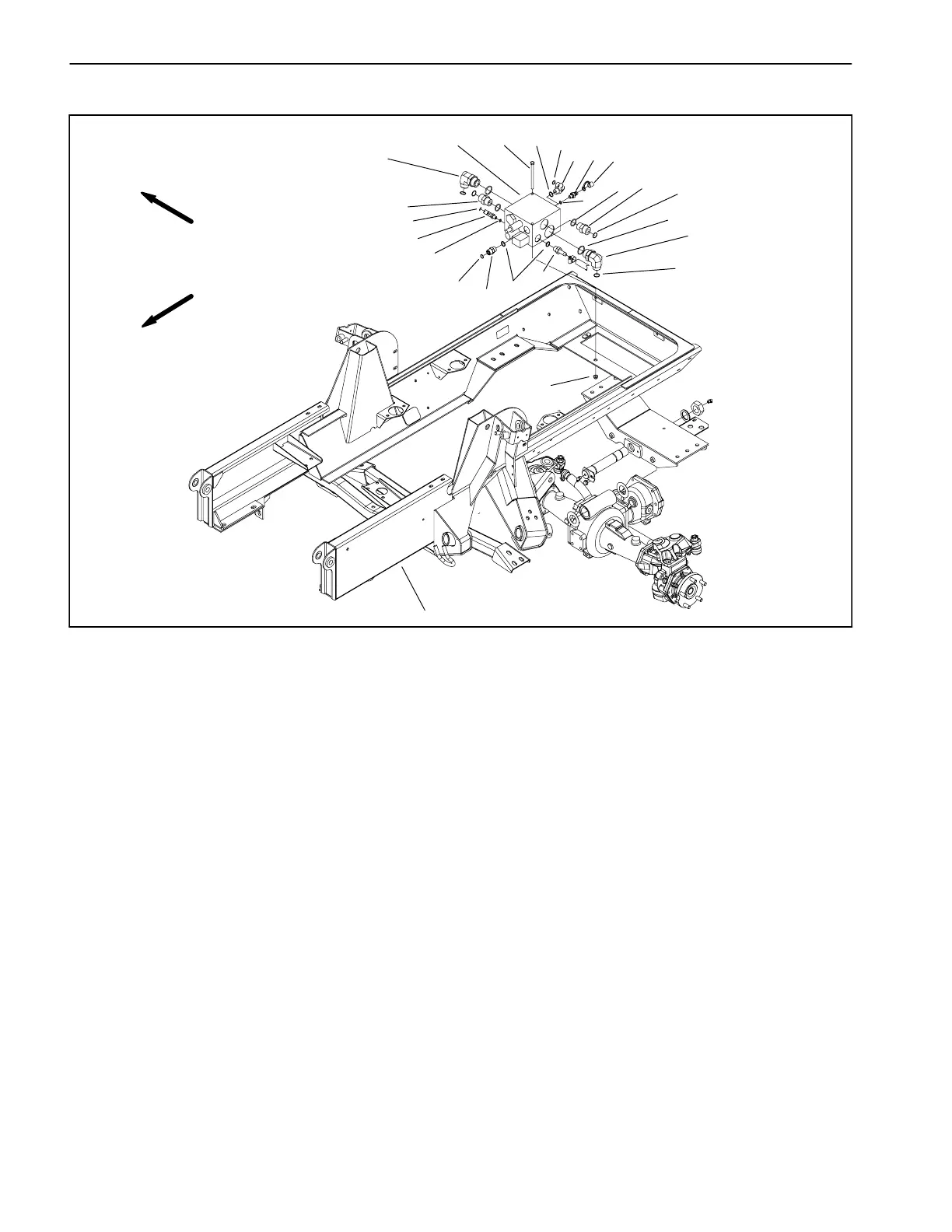

Figure 49
FRONT
RIGHT
1
15
16
2
18
3
14
9
12
8
6
10
10
11
7
4
5
4
5
7
17
13
12
9
19
