Groundsmaster 4000--DHydraulic System (Rev. B) Page 4 -- 78

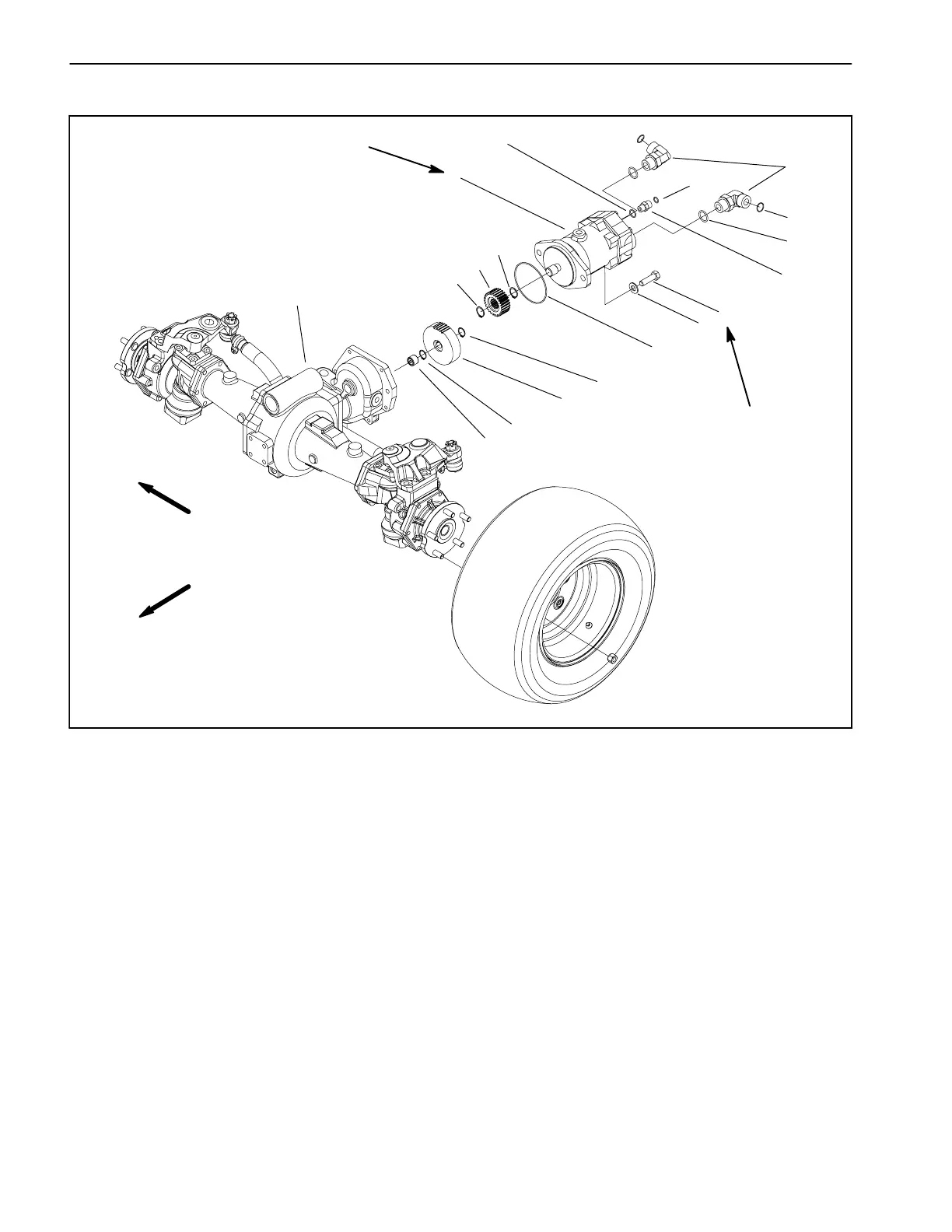

Rear Axle Motor
1. Wheel motor
2. 90
o
hydraulic fitting
3. Hydraulic fitting
4. Cap screw
5. Flat washer
6. O--ring
7. External snap ring
8. Pinion gear
9. External snap ring
10. Gear
11. Needle bearing
12. O--ring
13. O--ring
14. O--ring
15. O--ring
16. Drive axle assembly
Figure 60
FRONT
RIGHT
Arrow on side of
16
11
10
5
4
3
9
9
7
7
8
6
1
2
15
14
13
12
motor case points up
59 to 73 ft--lb
(80to99N--m)
