Groundsmaster 4000--D/4010--D Page 1 -- 5 Safety
Jacking Instructions
CAUTION
When changing attachments, tires or perform-
ing other service, use correct jacks and sup-
ports. Make sure machine is parked on a solid,
level surface such as a concrete floor. Prior to
raising machine, remove any attachments that
may interfere with the safe and proper raising of
the machine. Always chock or block wheels. Use
jack stands to support the raised machine. If the
machine is not properly supported by jack
stands, the machine may move or fall, which
may result in personal injury.

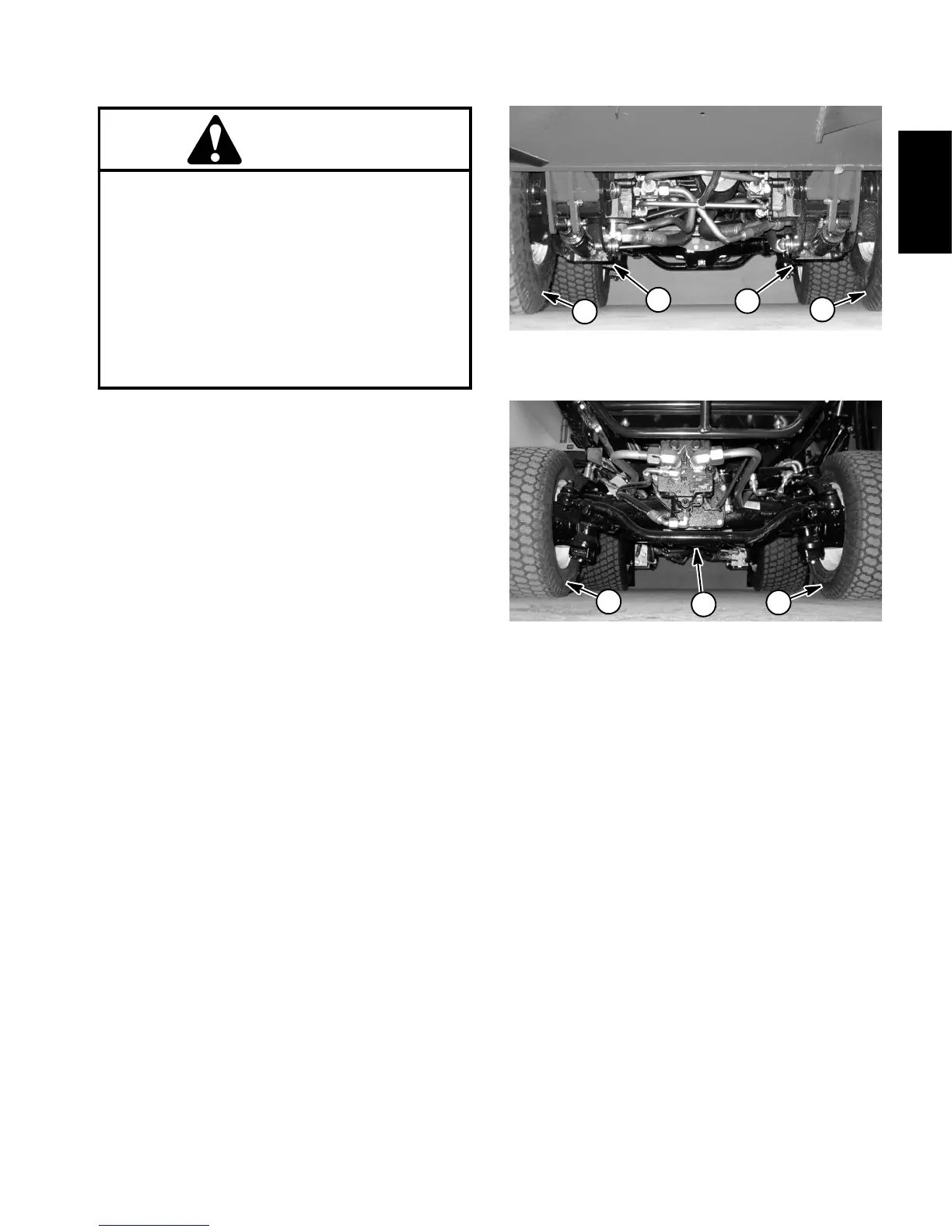

Jacking the Front End (Fig. 1)
1. Set parking brake and chock both rear tires to pre-
vent the machine from moving.
2. Position jack securely under the frame, just to the in-
side of the front tire. Jack front wheel off the ground.
3. Once the machine is raised, position jack stand un-
der the frame as close to the wheel as possible to sup-
port the machine.
Jacking the Rear End (Fig. 2)
1. Set parking brake and chock both front tires to pre-
vent the machine from moving.
2. Place jack securely under the center of rear axle.
Jack rear of machine off the ground.
3. Once the machine is raised, use jack stands under
the axle to support the machine.
1. Front jacking point 2. Front tire
Figure 1
1
2
2
1
1. Rear axle jacking point 2. Rear tire
Figure 2
1
2
2
