Toro 30410 Service Manual

Groundsmaster 4000--D/4010--DHydraulic System Page 4 -- 92

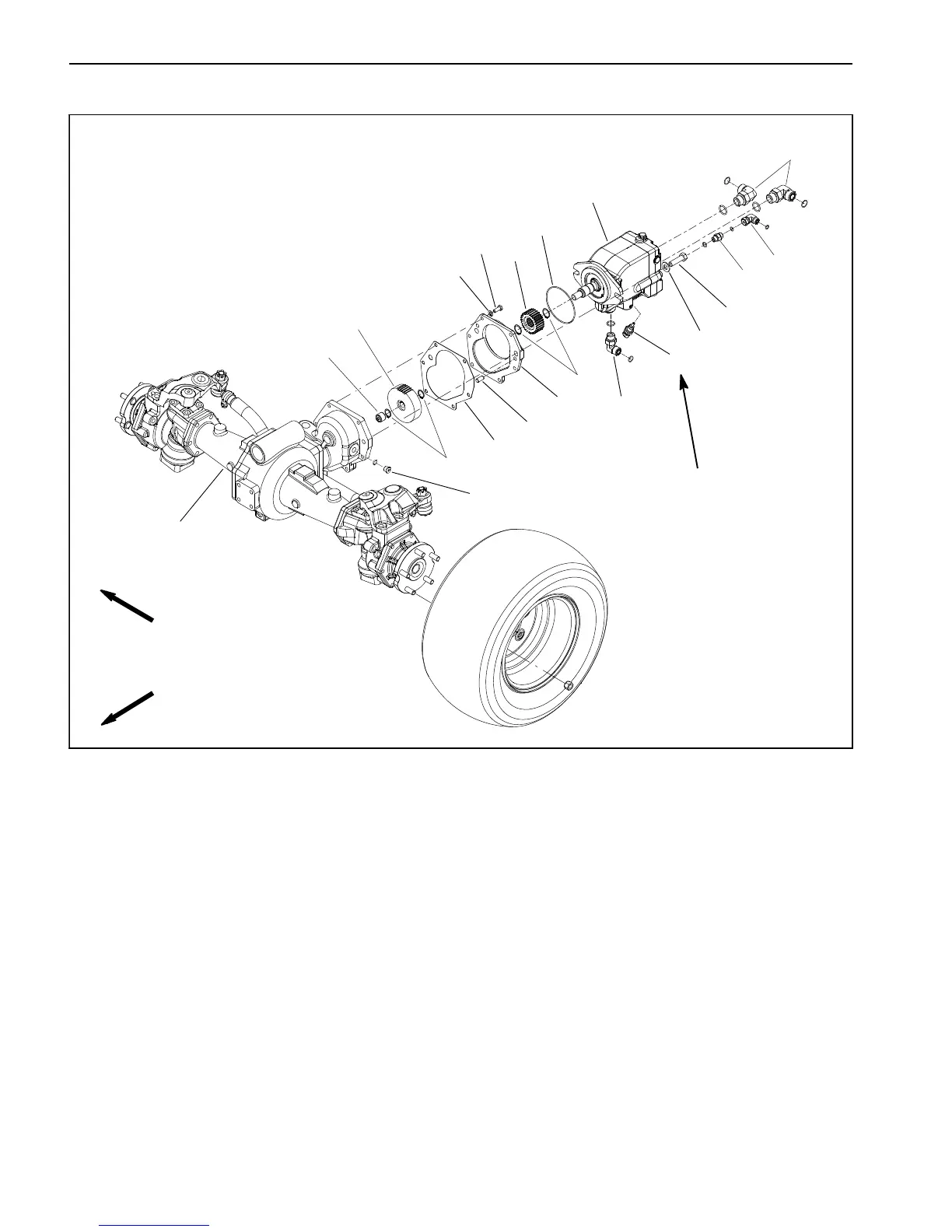

Rear Axle Motor
1. Rear axle motor
2. 90
o
hydraulic fitting (2 used)
3. 90
o
hydraulic fitting
4. Straight hydraulic fitting
5. 90
o
hydraulic fitting
6. Temperature sender
7. Cap screw (2 used)
8. Flat washer (2 used)
9. O--ring
10. External snap ring (2 used)
11. Pinion gear (27T)
12. Cap screw (6 used)
13. Lock washer (6 used)
14. Cover plate
15. Dowel pin (2 used)
16. Gasket
17. External snap ring (2 used)
18. Gear (45T)
19. Needle bearing
20. Plug with O--ring
21. Drive axle assembly

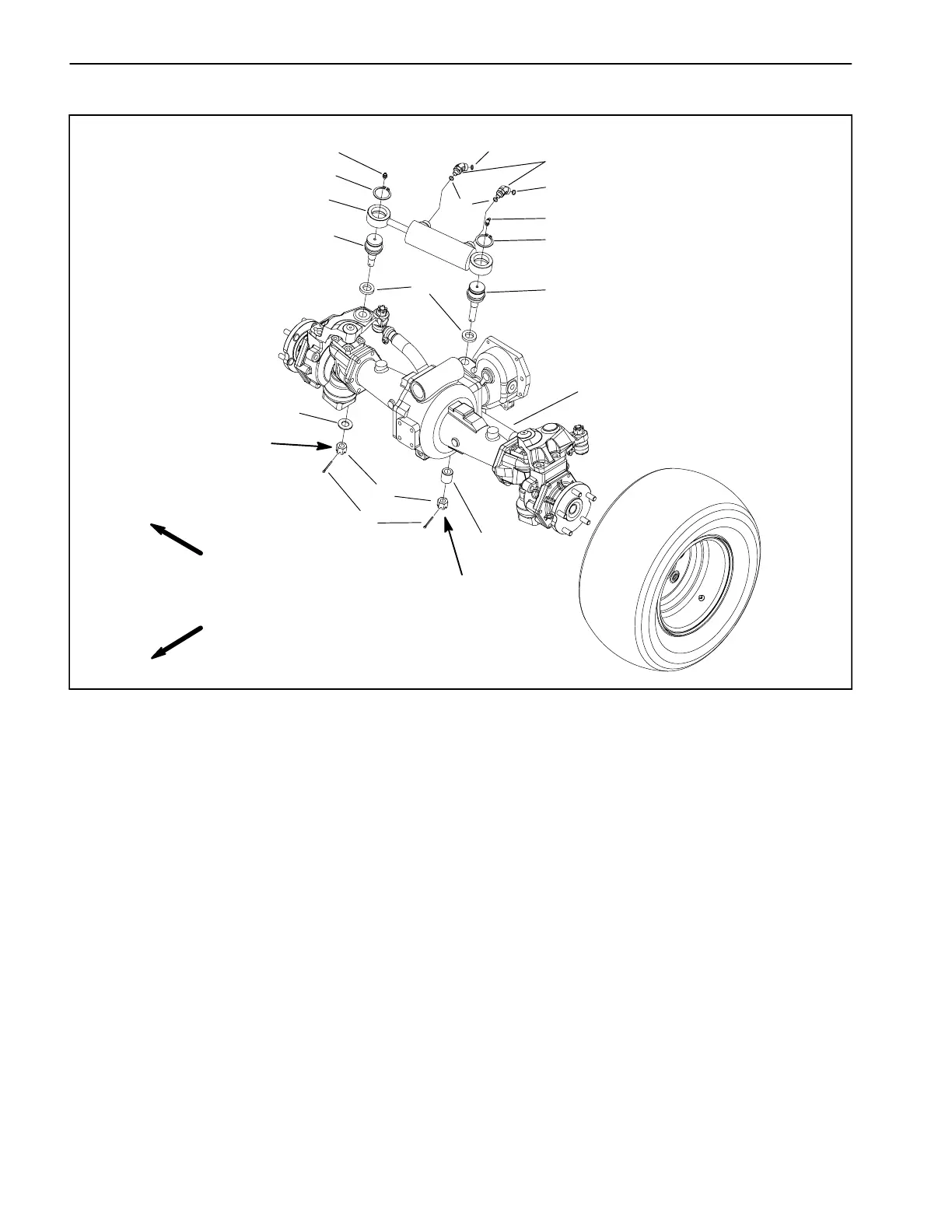

Figure 66
FRONT
RIGHT
16
11
10
5
4
3
9
7
8
6
1
15
14
13
12
18
21
19
17
20
2
9to11ft--lb
(12.3to14.9N--m)
