Groundsmaster 4000--D Hydraulic System (Rev. B)Page 4 -- 19

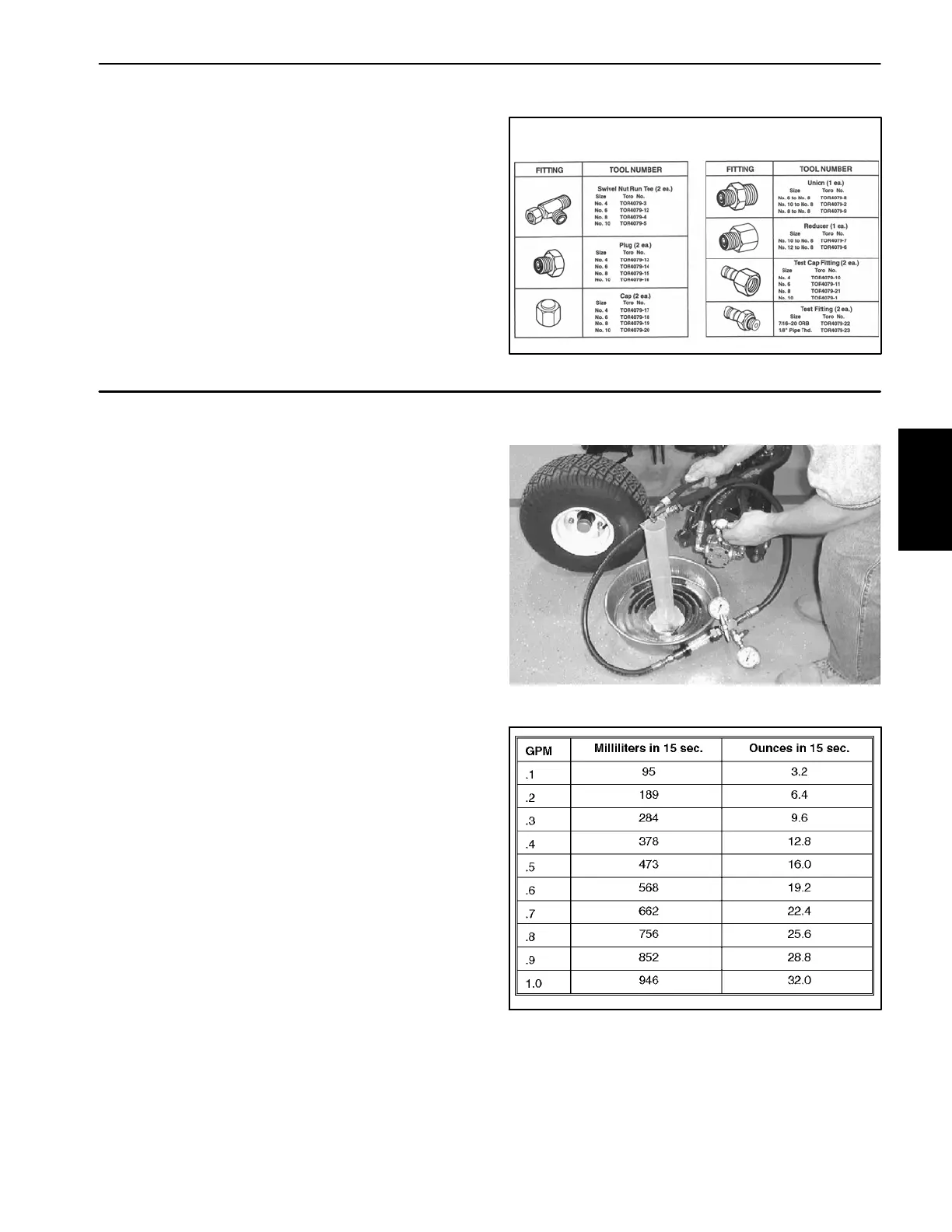

Hydraulic Test Fitting Kit -- TOR4079
This kit includes a variety of O--ring Face Seal fittings to
enable you to connect test gauges into the system.
The kit includes: tee’s, unions, reducers, plugs, caps,
and male test fittings.
Figure 11
TORO TEST FITTING KIT (NO. TOR4079)
Measuring Container -- TOR4077
Use this container for doing hydraulic motor efficiency
testing (motors with case drain lines only). Measure effi-
ciency of a hydraulic motor by restricting the outlet flow
from the motor and measuring leakage from the case
drain line while the motor is pressurized by the hydraulic
system.
The table in Figure 13 provides gallons per minute
(GPM) conversion for measured milliliter or ounce motor
case drain leakage.
Figure 12
Figure 13
