Groundsmaster 4000--D/4010--DHydraulic System Page 4 -- 11 2

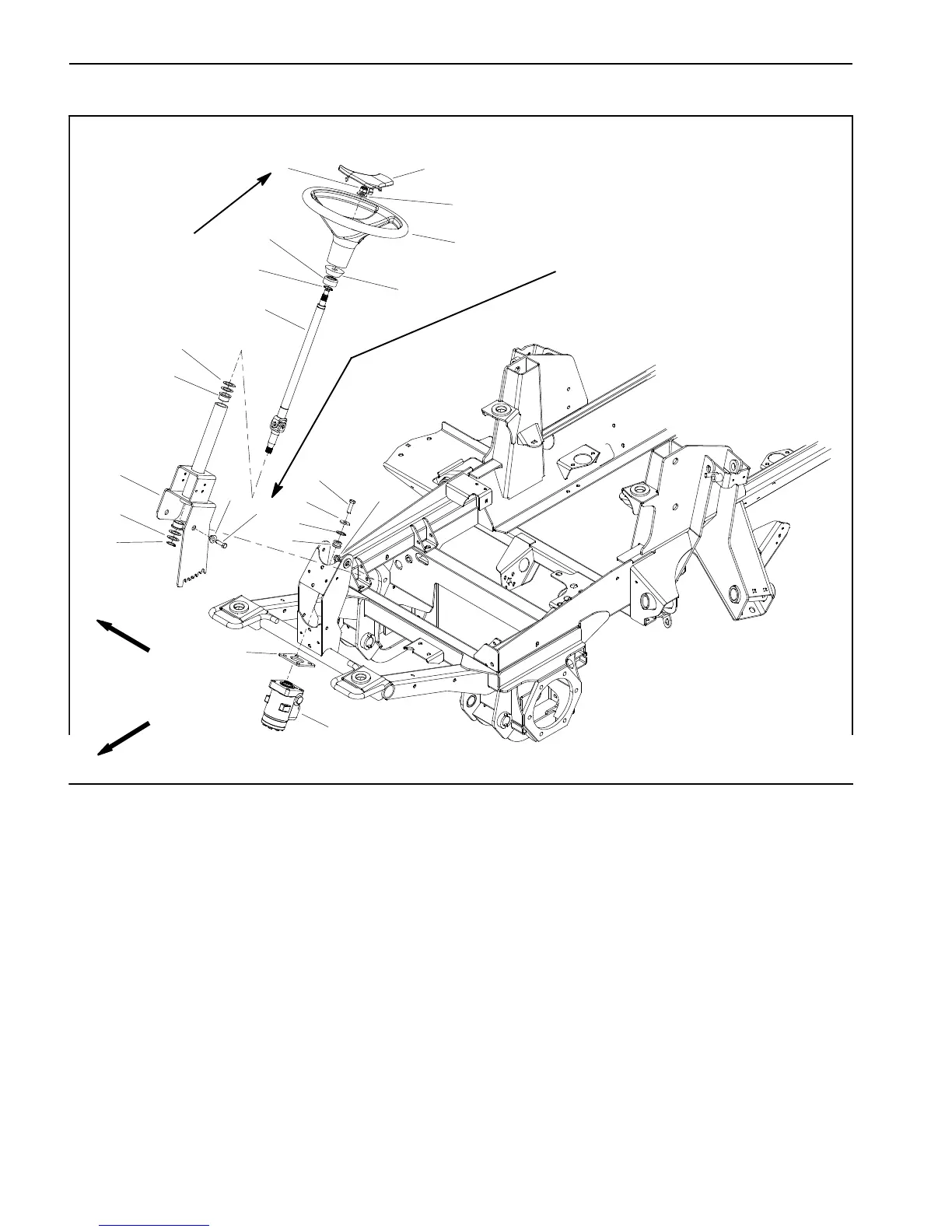

Steering Control Valve
1. Steering wheel cover
2. Hex nut
3. Flat washer
4. Steering wheel
5. Foam collar
6. Steering seal
7. External snap ring (2 used)
8. Steering shaft
9. Flange bushing
10. Thrust washer (as needed)
11. Cap screw (4 used)
12. Washer (4 used)
13. Washer (4 used)
14. Mount (4 used)
15. Valve mount plate
16. Steering control valve
17. Steering column
18. Cap screw (2 used)
19. Pivot hub (2 used)
20. Flange nut (2 used)
Figure 79
FRONT
RIGHT
27 to 33 ft--lb
(37to44N--m)
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
7
10
20 to 26 ft--lb
(28to35N--m)
