Toro 30410 - Front Cutting Unit; Service and Repairs

Groundsmaster 4000−DCutting Units
Page 8 − 6
Service and Repairs
CAUTION
Never install or work on the cutting units or lift
arms with the engine running. Always stop en-
gine and remove key first.

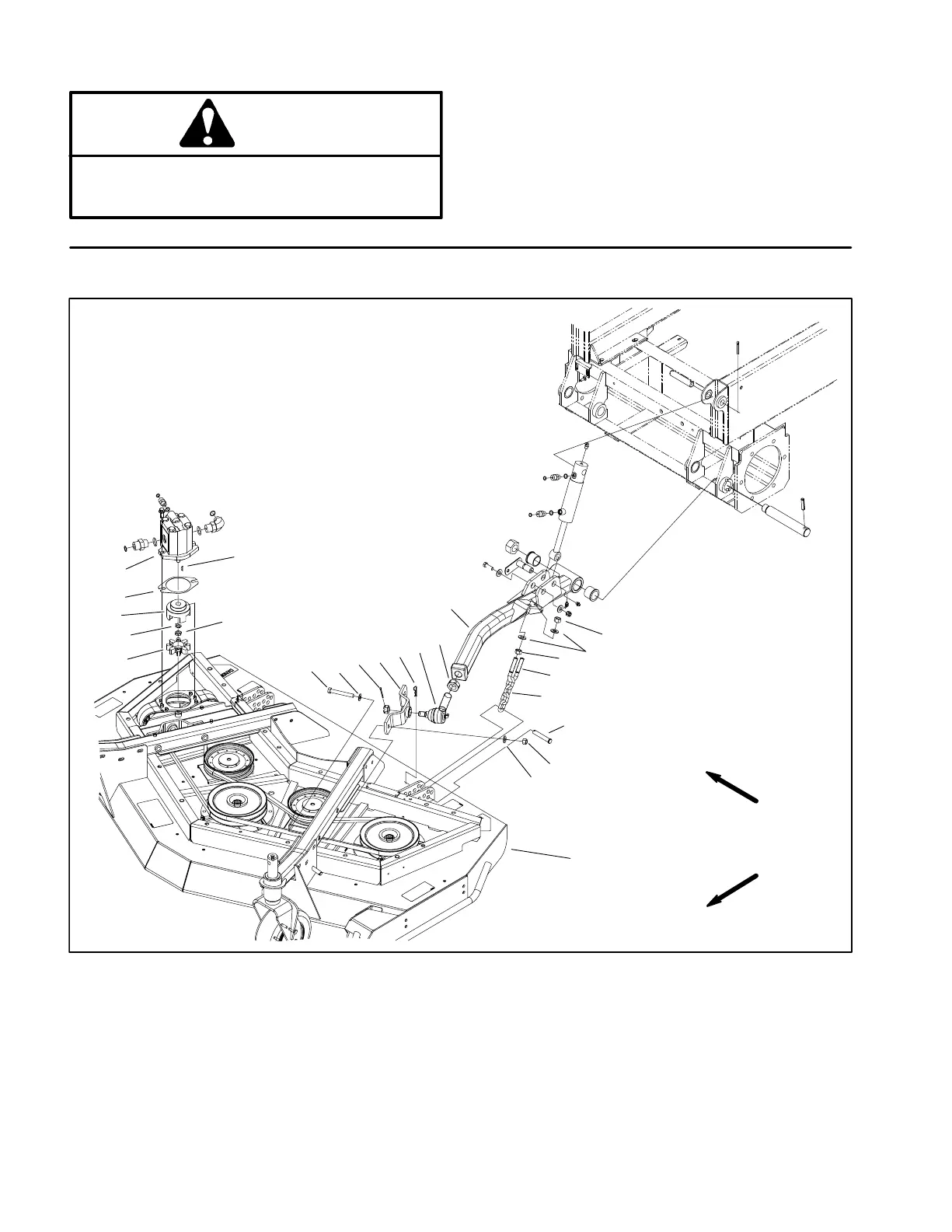

Front Cutting Unit
1. Spider
2. Mounting shim (if required)
3. Hydraulic deck motor
4. Cap screw
5. Washer
6. Cotter pin
7. Ball joint mount
8. Hairpin
9. Ball joint
10. Jam nut
11. Lift arm (LH shown)
12. Lock nut
13. Flat washer
14. Nut
15. U−bolt
16. Height−of−cut chain
17. Clevis pin
18. Lock nut
19. Front cutting deck
20. Woodruff key
21. Spider hub
22. Tab washer
23. Nut
Figure 1
15
14
16
17
18
8
9
4
10
6
7
11
5
2
3
5
1
12
13
FRONT
RIGHT
19
20
21
22
23
