Toro 30410 - Steering Cylinder Service

Rev. E
Groundsmaster 4000--DHydraulic System (Rev. B) Page 4 -- 106
Steering Cylinder Service
1. Butt and tube assembly
2. Shaft
3. Piston rod assembly
4. Gland (head)
5. Lock nut
6. O--ring
7. PTFE seal
8. O--ring
9. O--ring
10. U--cup
11. Wiper

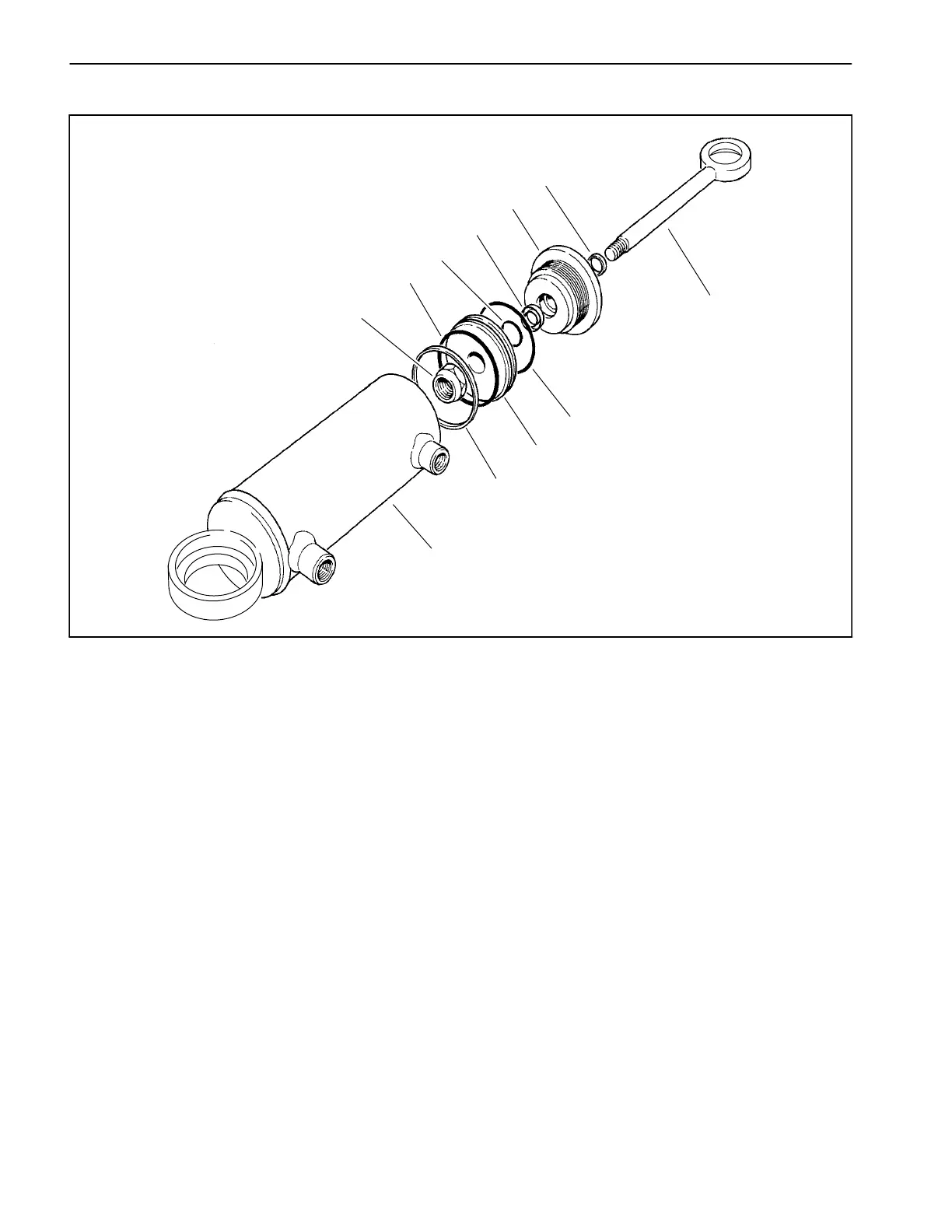

Figure 82
1
6
7
3
9
10
4
11
2
8
5
