Groundsmaster 4000--DHydraulic System (Rev. B) Page 4 -- 52
Gear Pump
1. 90
o
hydraulic fitting
2. O--ring
3. O--ring
4. 90
o
hydraulic fitting
5. O--ring
6. O--ring
7. Hydraulic fitting
8. O--ring
9. Hydraulic fitting
10. O--ring
11. Clamp
12. Hydraulic T fitting
13. O--ring
14. Hydraulic fitting
15. Fitting cap
16. Hydraulic fitting
17. O--ring
18. Cap screw
19. Flat washer
20. Engine
21. Piston pump
22. O--ring
23. Coupler
24. Gear pump
25. Spacer
26. Cap screw
27. Washer

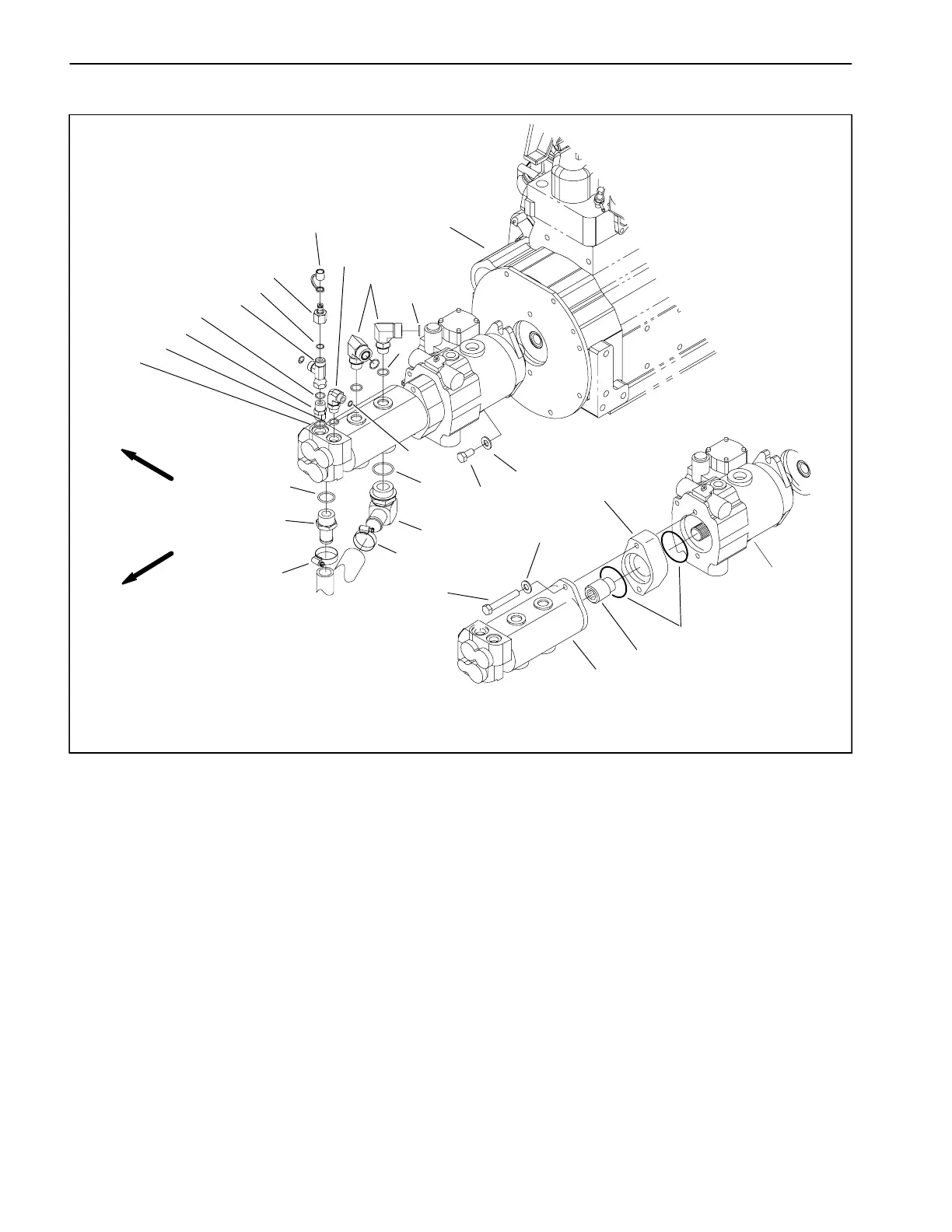

Figure 39
1
9
7
15
14
12
4
8
10
3
6
3
13
5
2
11
16
17
23
24
22
21
25
27
26
11
18
19
20
FRONT
RIGHT
