Groundsmaster 4000--DHydraulic System (Rev. B) Page 4 -- 80

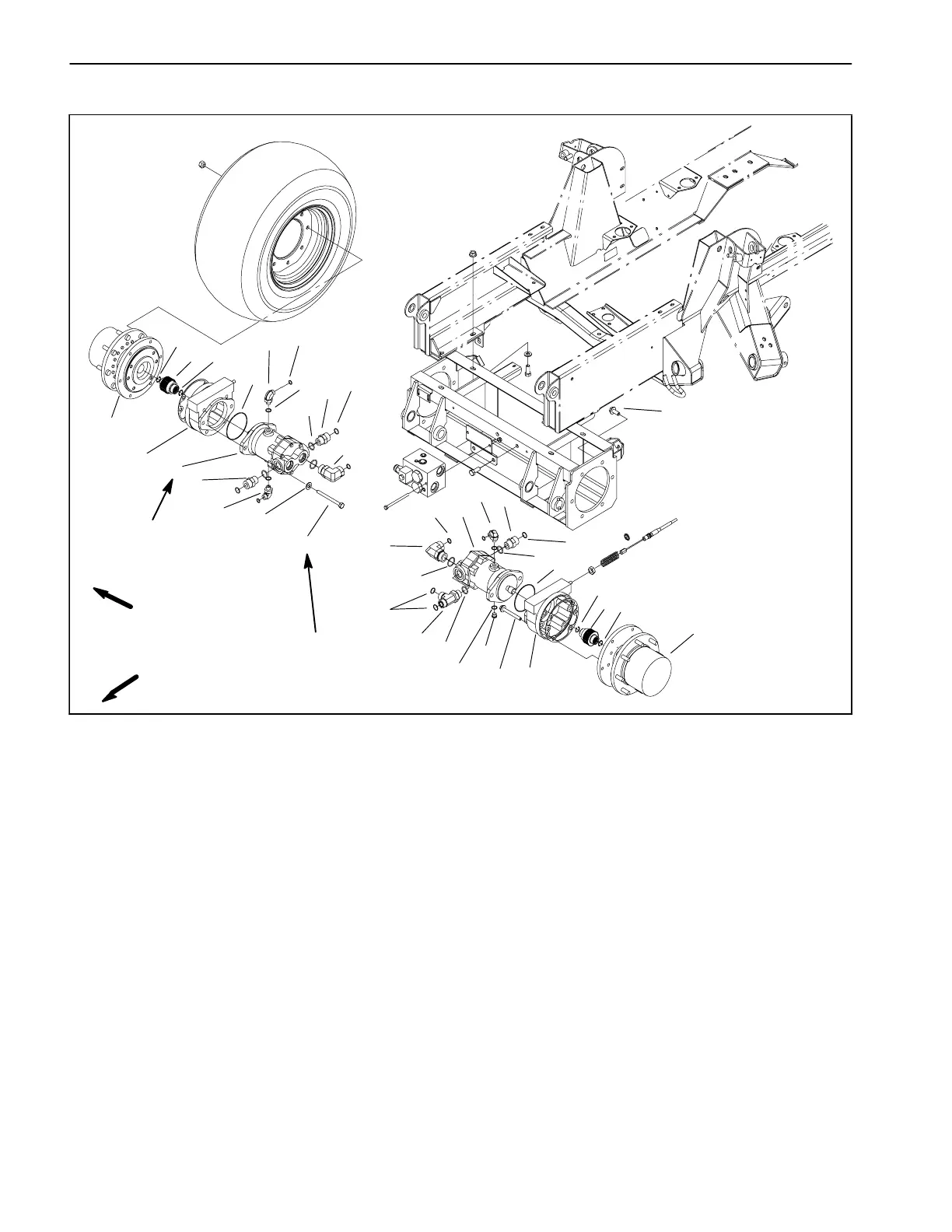

Front Wheel Motors
1. Front wheel motor
2. Internal retaining ring
3. Splined brake shaft
4. RH brake assembly
5. Planetary assembly
6. Cap screw
7. Flat washer
8. O--ring
9. Flange head screw
10. 90
o
hydraulic fitting
11. 90
o
hydraulic fitting
12. O--ring
13. O--ring
14. Hydraulic fitting
15. O--ring
16. O--ring
17. Hydraulic fitting
18. O--ring
19. O--ring
20. LH brake assembly
21. Flange head screw
22. Hex plug
Figure 61
FRONT
RIGHT
5
2
3
2
4
8
1
14
11
10
6
17
21
22
20
7
12
13
12
16
15
18
19
15
16
10
9
11
11
14
14
75 to 85 ft--lb
(101 to 115 N--m)
15
16
Arrow on side of
motor case points up
8
3
2
5
2
1
