Toro 30410 Service Manual

Groundsmaster 4000--D/4010--DHydraulic System Page 4 -- 98
Rear Traction Manifold
1. Front frame
2. PTO manifold (center deck)
3. Front traction manifold
4. Rear traction manifold
5. Cap screw (2 used)
6. Flange nut (2 used)
7. 90
o
hydraulic fitting
8. O--ring
9. 45
o
hydraulic fitting
10. O--ring
11. O-- ring
12. Straight fitting
13. O--ring
14. O--ring
15. 45
o
hydraulic fitting
16. O--ring
17. O--ring
18. O--ring

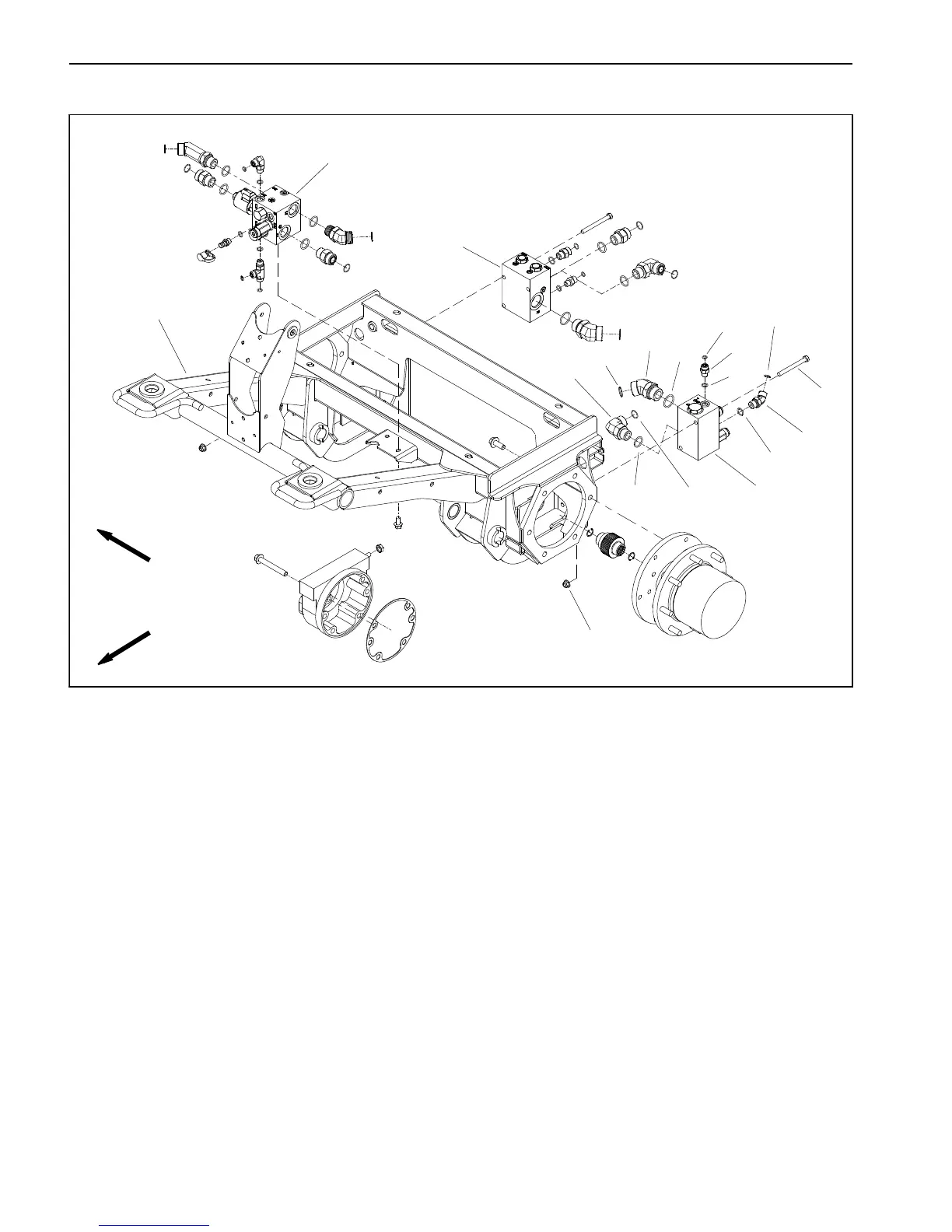

Figure 70
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
4
NOTE: The ports on the rear traction manifold are
marked for easy identification of components. Example:
P2 is a piston pump connection port and RV is the loca-
tion for the relief valve (see Hydraulic Schematic in
Chapter 10 -- Foldout Drawings to identify the function
of the hydraulic lines and cartridge valves at each port).
