Toro 30410 Service Manual

Groundsmaster 4000--D/4010--DPage 6 -- 10Axles, Planetaries and Brakes
Brake Inspection and Repair

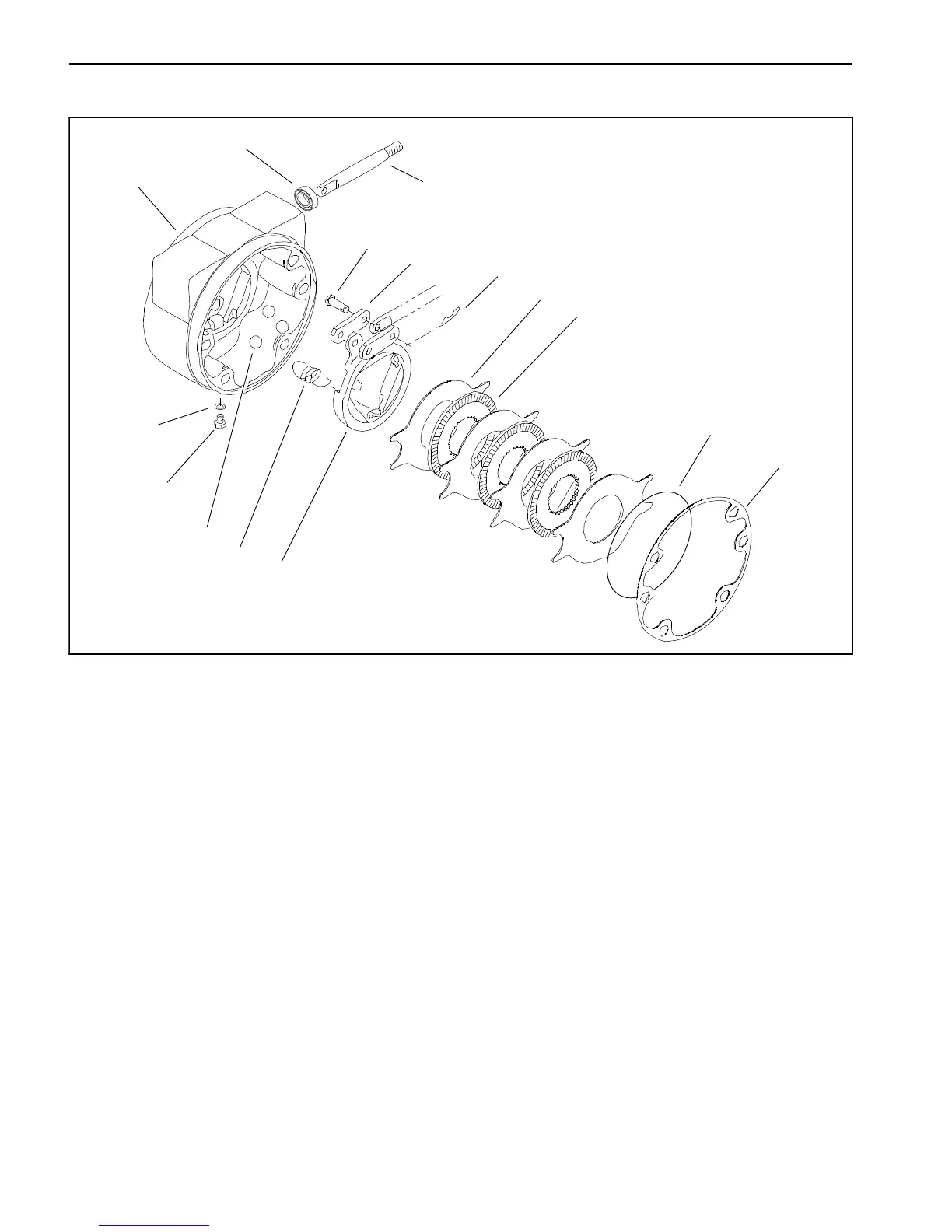

1. Brake housing (LH shown)
2. Seal
3. Pull rod
4. Clevis pin (2 used)
5. Link (2 used)
6. Hitch pin (2 used)
7. Stationary disc (4 used)
8. Rotating disc (3 used)
9. Retaining ring
10. Gasket
11. Rotating actuator
12. Extension spring (3 used)
13. Ball (3 used)
14. Plug
15. O--ring
Figure 6
3
2
4
5
6
7
8
9
10
14
13
12
11
15
1
Brake Inspection and Repair (Fig. 6)
1. Scrape gasket material (item 10) from brake housing
and planetary wheel drive mounting surfaces.
2. Remove retaining ring (item 9) from brake housing
groove.
3. Remove stationary discs (item 7 ) and rotating discs
(item 8).
4. Remove extension springs (item 12).
5. Remove actuator assembly (items 11, 6, 5, 4 and 3)
and balls (item 13).
6. Remove seal (item 2) from brake housing.
7. Wa sh parts in cleaning solvent. Inspect components
forwearordamage.
8. Reverse steps 2 through 6 to assemble brakes,
installing new parts as necessary. Install a new seal
(item 2).
9. Use a new gasket (item 10) when installing brake as-
sembly to machine.
