Page 10 -- 6
TO GROUND
BLOCK
PLATFORM
WIRE HARNESS
FROM OPERA TOR
PLATFORM
WIRE HARNESS
TO OPERATOR
Operator Cab (shown with lights for US model)
Groundsmaster 4010--D
All relays and solenoids
are shown as de--energized.
All ground wires are black.

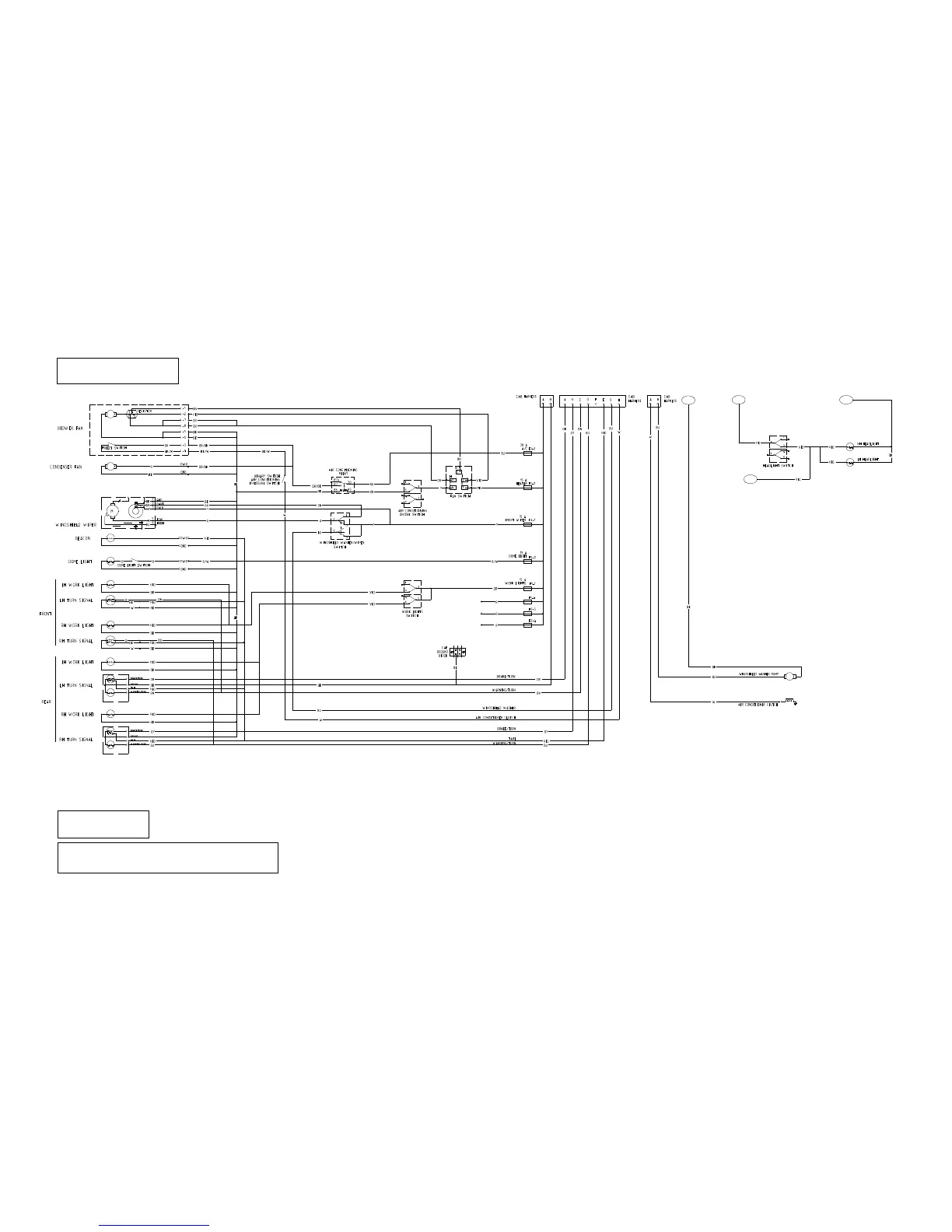

Electrical Schematic
1 2
3
4
TO CAB
WIRE HARNESS
SCHEMATIC FOR THE APPROPRIATE MODEL NUMBER WHICH IS ON A SEPARATE PAGE.
WHEN A WIRE FROM THIS CAB SCHEMATIC CONTINUES TO THE MACHINE SCHEMATIC,
NOTE: THE OPERATOR CAB SCHEMATIC SHOULD BE USED WITH THE ELECTRICAL
A REFERENCE NUMBER WILL BE LISTED.
WIRE COLOR ABBREVIATIONS.
NOTE: REFER TO ELECTRICAL DRAWING
DESIGNATIONS IN THIS CHAPTER FOR
