Toro 30410 Service Manual

Groundsmaster 4000--D/4010--DPage 7 -- 10Chassis

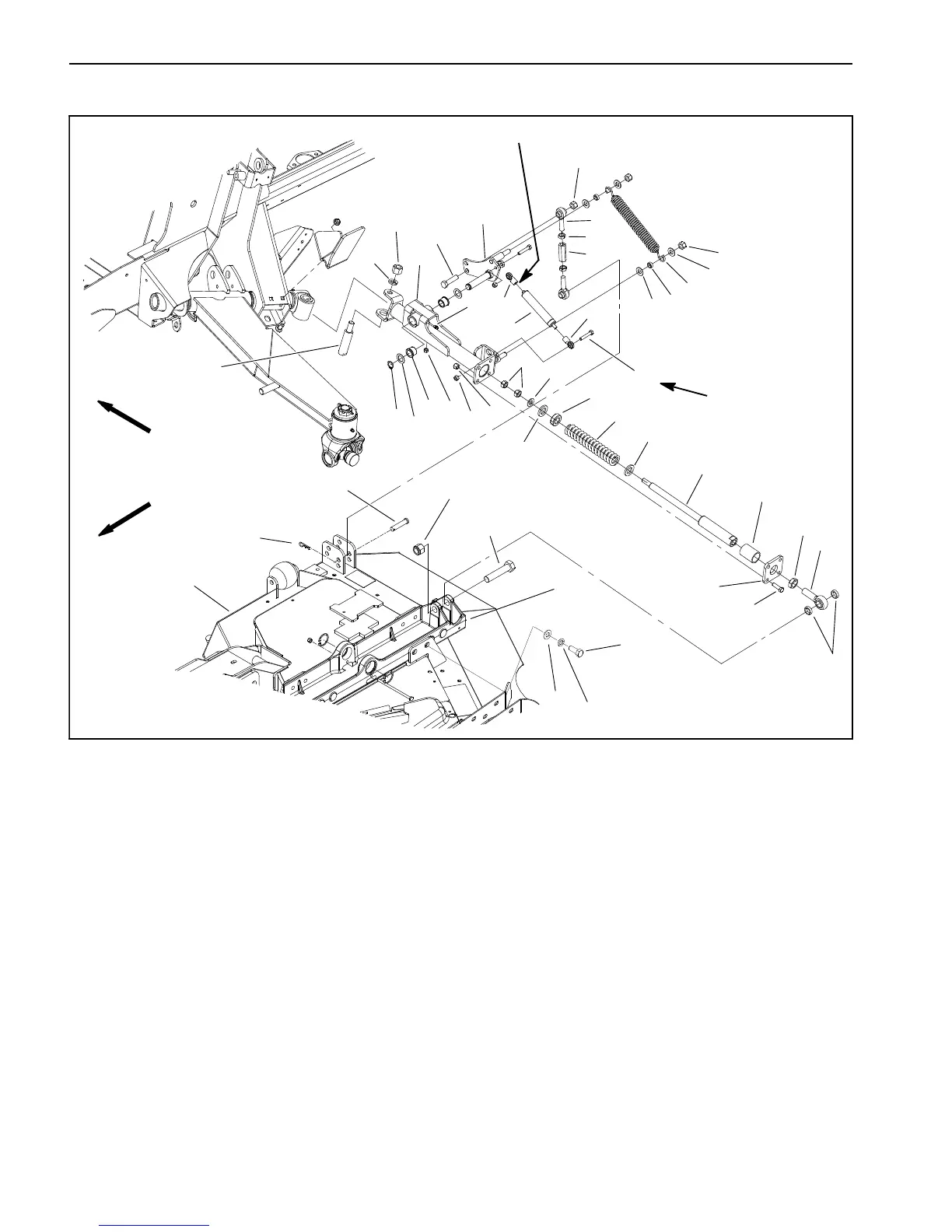

Side Deck Rear Arm Assembly
1. Cutting deck (LH shown)
2. Deck mount (LH shown)
3. Cap screw
4. Lock nut
5. Clevis pin
6. Hair pin
7. Spacer
8. Rod end
9. Jam nut
10. Cap screw (4 per arm)
11. Straight bushing
12. Spring shaft
13. Flat washer
14. Compression spring
15. Plastic bearing
16. Plate
17. Lock nut (2 per arm)
18. Pivot shaft
19. Retaining ring
20. Thrust washer (2 per arm)
21. Flange bushing
22. Rear arm (LH shown)
23. Lock nut (2 per damper)
24. Lock washer
25. Lock nut
26. Grease fitting
27. Jam nut
28. Cap screw
29. Bell crank (LH shown)
30. Damper
31. Damper rod end (2 per damper)
32. Cap screw (2 per damper)
33. Link tube
34. Lock nut
35. Flat washer
36. Bushing
37. Damper spring
38. Lock nut (4 per arm)
39. Jam nut (2 per arm)
40. Rod end (2 per arm)
41. Cap screw (8 used)
42. Lock washer (8 used)
43. Flat washer (8 used)
Figure 9
6
18
2
4
5
7
8
14
15
27
22
24
25
28
29
35
36
37
19
21
23
3
34
1
34
11
12
33
32
31
30
38
9
10
13
35
17
FRONT
RIGHT
Loctite #271
270 to 330 in--lb
(31 to 37 N--m)
20
26
39
40
13
35
16
41
43
42
31
