Toro 30410 Service Manual

Groundsmaster 4010--DOperator Cab Page 9 -- 6
Roof Assembly
1. Roof
2. Screw (2 used)
3. Flat washer (6 used)
4. Bushing (10 used)
5. Rear fastener (2 used)
6. Rear spacer (2 used)
7. Panel nut
8. Roof mount
9. Flange nut (2 used)
10. Flange nut (4 used)
11. Headliner
12. Front spacer (2 used)
13. Front fastener (2 used)
14. Rubber washer
15. Cap screw
16. Hex nut (4 used)

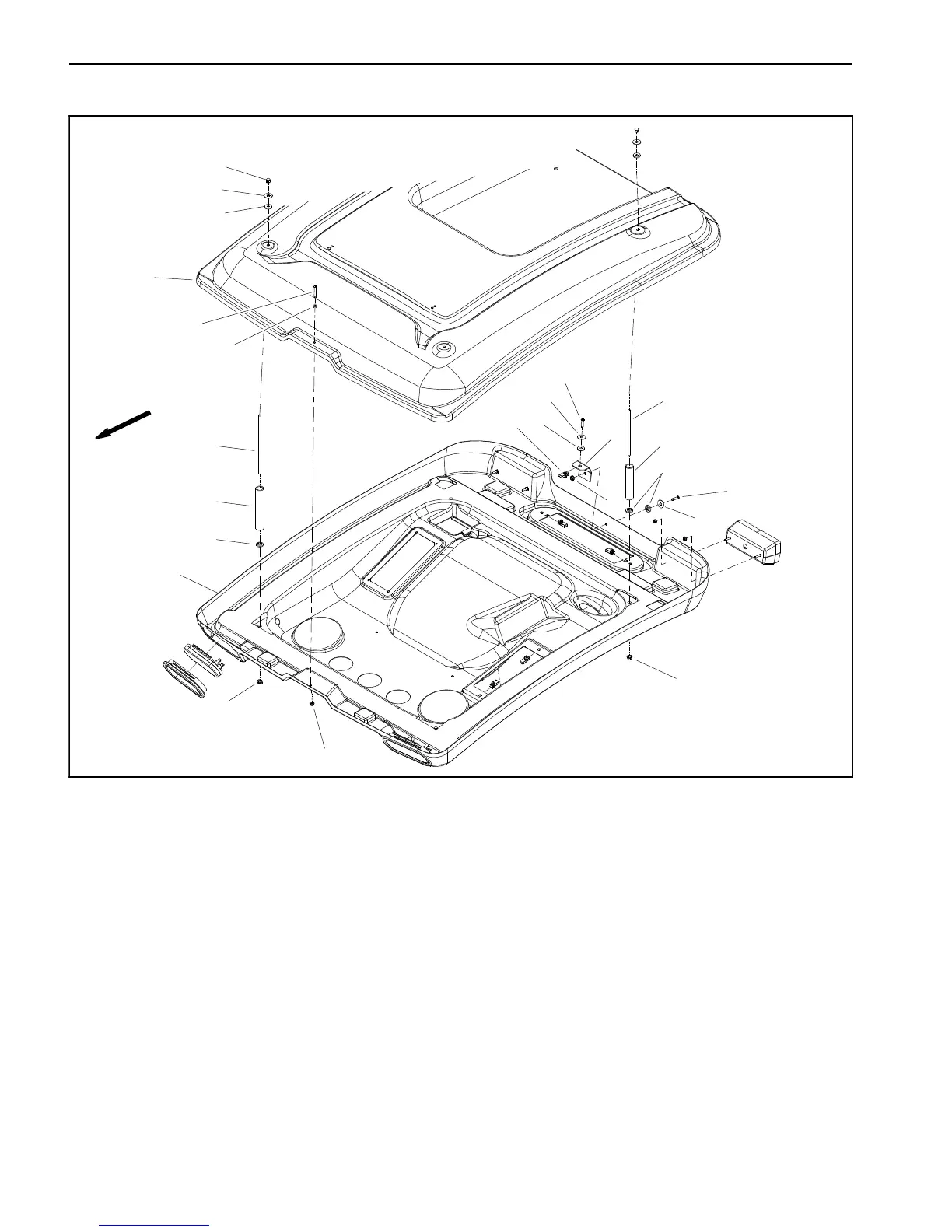

Figure 3
FRONT
2
7
9
6
8
4
10
16
1
5
2
3
3
3
4
4
4
9
10
11
12
13
14
15
