Groundsmaster 4000--D/4010--DCutting Decks
Page 8 -- 10
Idler Assembly
FRONT
RIGHT
6
7
8
9
10
11
12
15
16
13
14
17
18
19
1
2
4
3
5
20
23
21
24
22

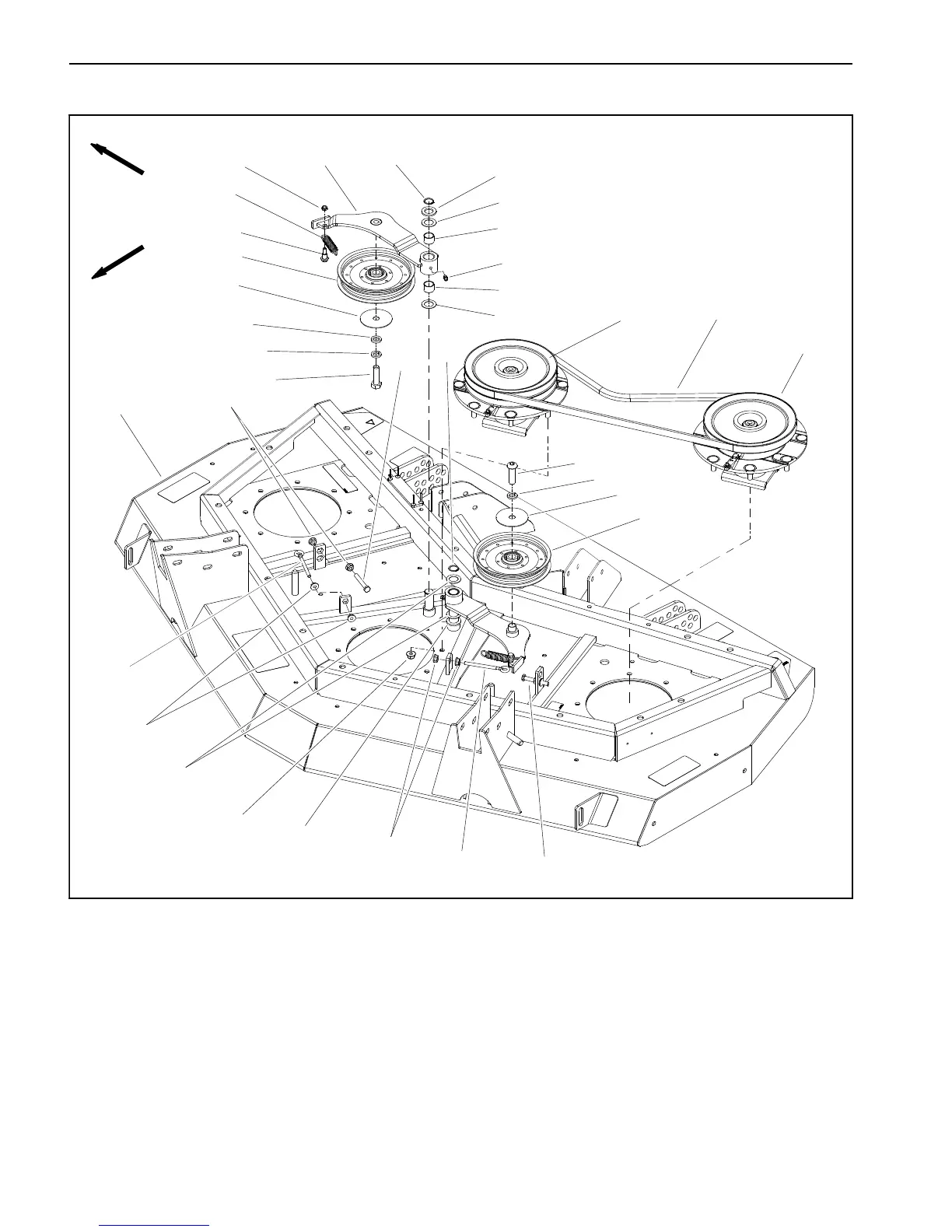

1. Cutting deck (front shown)
2. Flange nut
3. Flange nut
4. Adjusting screw
5. Idler pulley
6. Driven spindle (double pulley shown)
7. Flat washer
8. Lock washer
9. Socket head screw
10. Idler stop bolt
11. Flange nut
12. Cap screw
13. Spacer
14. Shoulder bolt
15. Idler spring
16. Lock nut
17. Idler arm
18. Retaining ring
19. Thrust washer
20. Bushing (2 used per idler)
21. Grease fitting
22. Washer
23. Driven spindle (single pulley)
24. Drive belt
Figure 9
2
4
5
7
8
18
19
19
20
22
10
NOTE: The front deck is shown in Figure 9. The idler
assemblies used on the side decks use the same idler
components.
