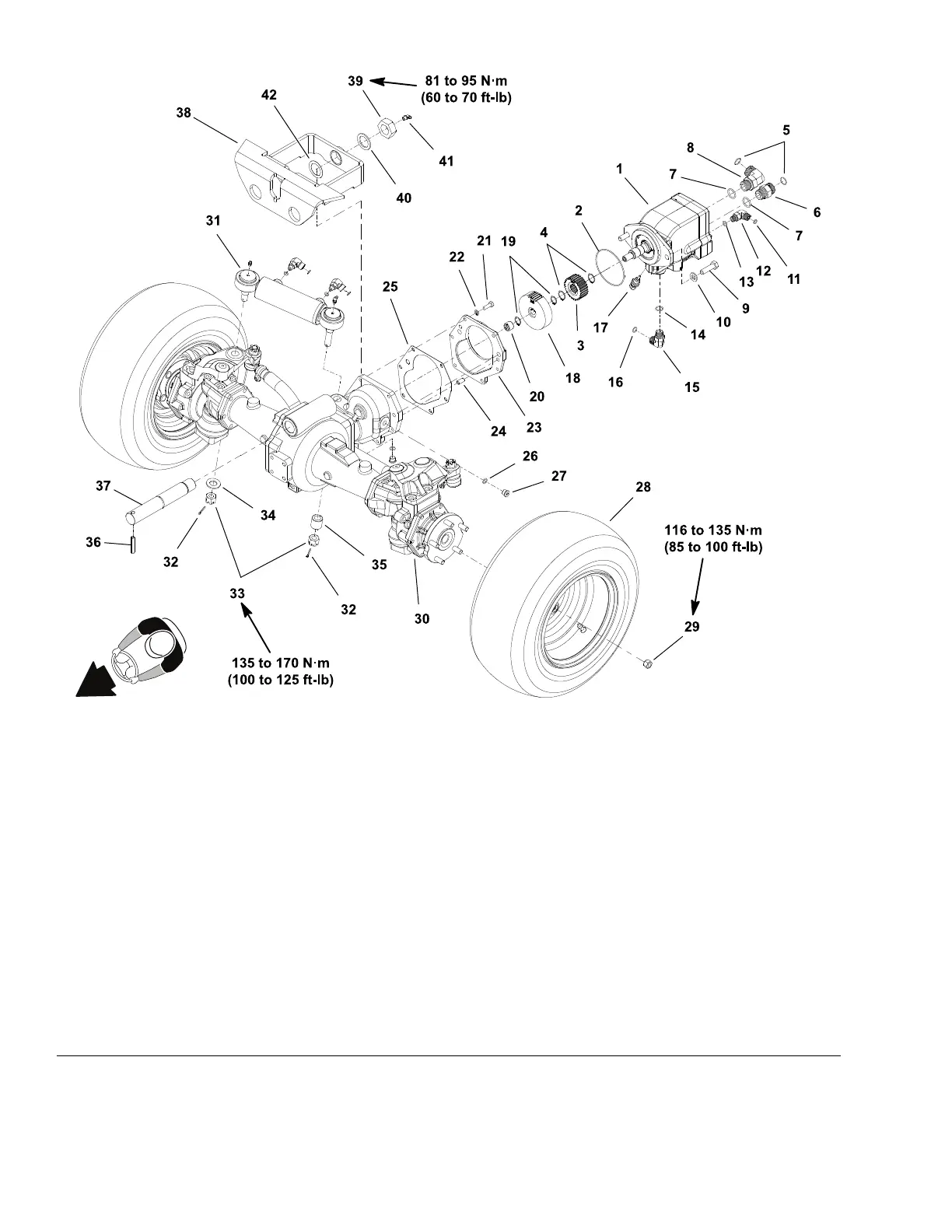

RearAxleAssembly

g310214

Figure238

1.Rearaxlemotor

15.90ohydraulictting29.Lugnut(5usedperwheel)

2.O−ring16.O−ring

30.Rearaxleassembly

3.Piniongear

17.T emperaturesenderwithO−ring31.Steeringcylinderassembly

4.Externalsnapring(2used)

18.Gear32.Cotterpin(2used)

5.O−ring19.Externalsnapring(2used)33.Slottedhexnut(2used)

6.Hydraulictting

20.Needlebearing

34.Flatwasher

7.O−ring21.Capscrew(6used)35.Spacer

8.90ohydraulictting22.Lockwasher(6used)36.Slottedrollpin

9.Capscrew(2used)23.Coverplate

37.Rearaxlepivotpin

10.Flatwasher(2used)24.Dowelpin(2used)38.Machineframe

11.O−ring25.Gasket

39.Locknut

12.90ohydraulictting26.O−ring

40.Thrustwasher

13.O−ring

27.Plug

41.Greasetting

14.O−ring

28.Rearwheelassembly

42.Thrustwasher(2used)

Axles,PlanetariesandBrakes:ServiceandRepairs

Page7–16

Groundsmaster

4500-D/4700-D

19245SLRevA
