Toro Groundsmaster 4500-D Series - Chapter 8:Chassis; General Information; Cutting Deck Identification; Operators Manual

GeneralInformation
Operator’sManual
TheOperator’sManualprovidesinformationregardingtheoperation,adjustment
procedures,andgeneralmaintenanceforyourGreensmastermachine.Referto
theOperator’sManualforadditionalinformationwhenservicingthemachine.
CuttingDeckIdentication
#4 Deck #1 Deck #5 Deck
#7 Deck
(GM4700)
#6 Deck
(GM4700)
#3
Deck
#2
Deck
g308386

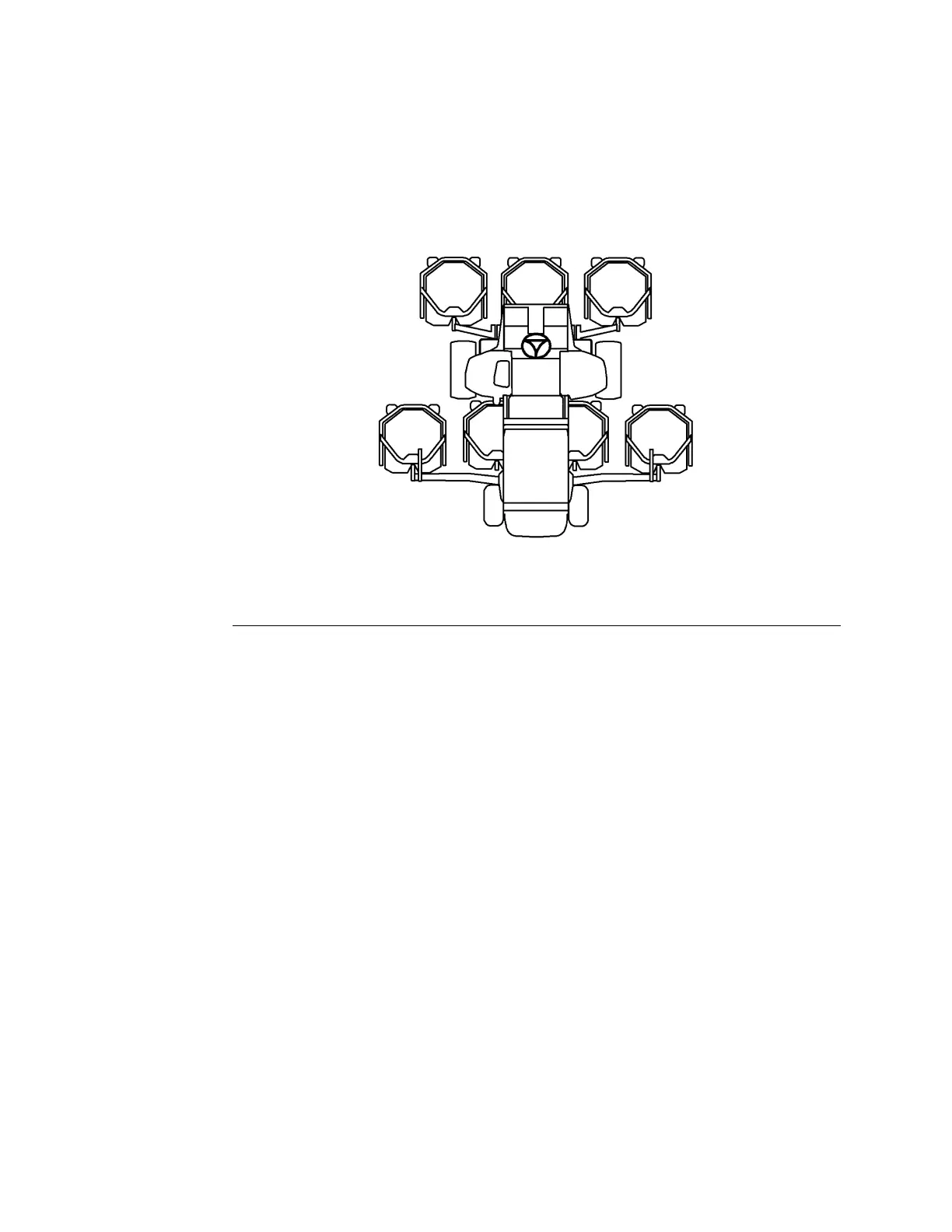

Figure276
CUTTINGDECKLOCATIONS
CuttingdecksontheGroundsmaster4500-Dand4700-Dareidentiedas
showninFigure276.
Chassis:GeneralInformation
