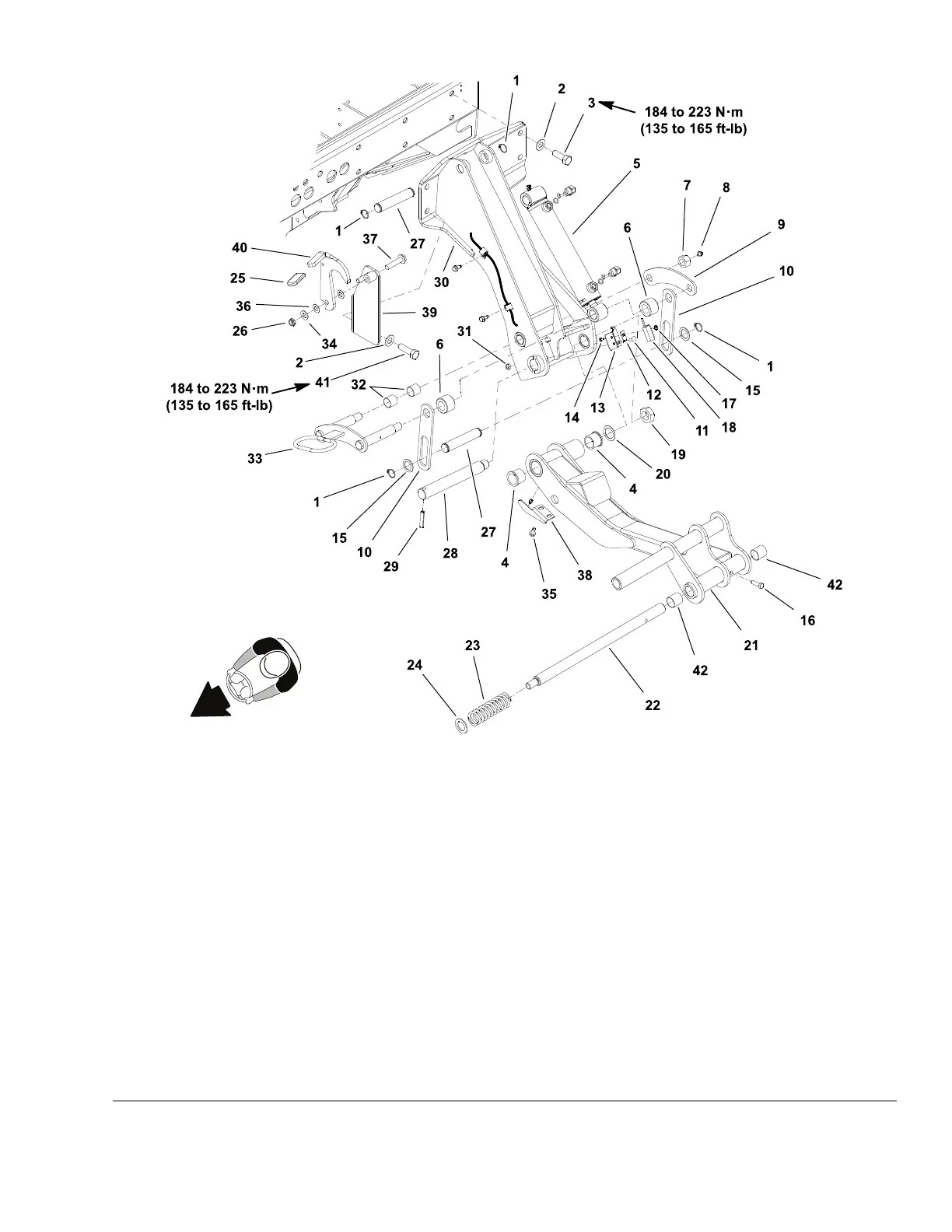

LiftArmsforCuttingDecks#6and#7(Groundsmaster4700-D)
g310552
Figure290
1.Retainingring15.Thrustwasher
29.Slottedrollpin
2.Flatwasher(4usedpersupport
arm)
16.Capscrew30.Supportarm(deck#6shown)
3.Capscrew(4usedpersupportarm)
17.Locknut31.Flangenut
4.Flangebushing18.Deckpositionswitch32.Bushing
5.Liftcylinder
19.Locknut33.Link
6.Plasticroller20.Thrustwasher34.Flatwasher
7.Locknut
21.Liftarm(deck#6shown)35.Selftappingscrew
8.Greasetting22.Carrierpivotpin
36.Washer
9.Rearlink
23.Compressionspring
37.Flangeheadscrew
10.Liftlink
24.Thrustwasher
38.Switchactuator
11.Carriagescrew
25.Plasticgrip
39.Latcharm(LHshown)
12.Switchplate
26.Locknut
40.Latch(LHshown)
13.Switchbracket
27.Pin
41.Capscrew
14.Carriagebolt
28.Pivotpin42.Bushing
Groundsmaster
®
4500-D/4700-D
Page8–17
Chassis:ServiceandRepairs
19245SLRevA
