PlanetaryDriveAssembly
g310077

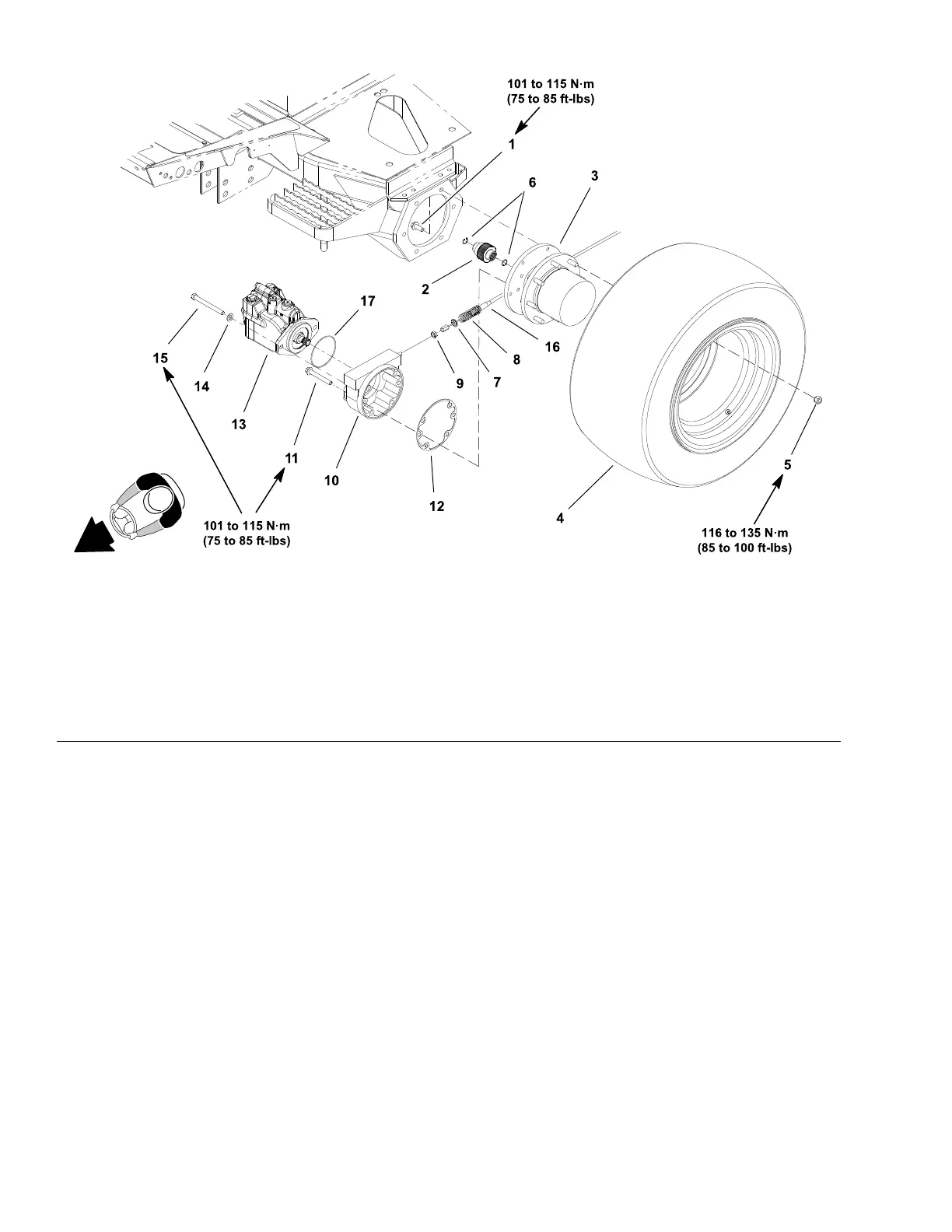

Figure235
1.Flangeheadscrew(6perplanetary)7.Springplate13.Pistonmotor(2used)
2.Splinedbrakeshaft8.Compressionspring14.Flatwasher(2permotor)
3.Planetaryassembly(2used)
9.Jamnut
15.Capscrew(2permotor)
4.Frontwheelassembly(2used)10.Brakeassembly(LHshown)16.Brakecable(LHshown)
5.Lugnut(8perwheel)11.Flangeheadscrew(4perbrake)
6.Retainingring
12.Gasket
Note:Theplanetarydriveassemblycanbeservicedwiththeplanetaryinstalled
tomachine(seeVA02SeriesPlanetaryDriveService(page7–11)).Usethe
followingproceduretoremoveandinstalltheplanetarydriveassemblyfrom
themachine.
Removal(Figure235)
1.Parkmachineonalevelsurface,lowercuttingdecks,stopengineand
removekeyfromtheignitionswitch.
2.DraintheoilfromthebrakeassemblyandthePlanetarydrive;refertothe
tractionunitOperator’sManual.
Axles,PlanetariesandBrakes:ServiceandRepairs
Page7–8
Groundsmaster
®
4500-D/4700-D
19245SLRevA
