Toro Workman 07390 User Manual

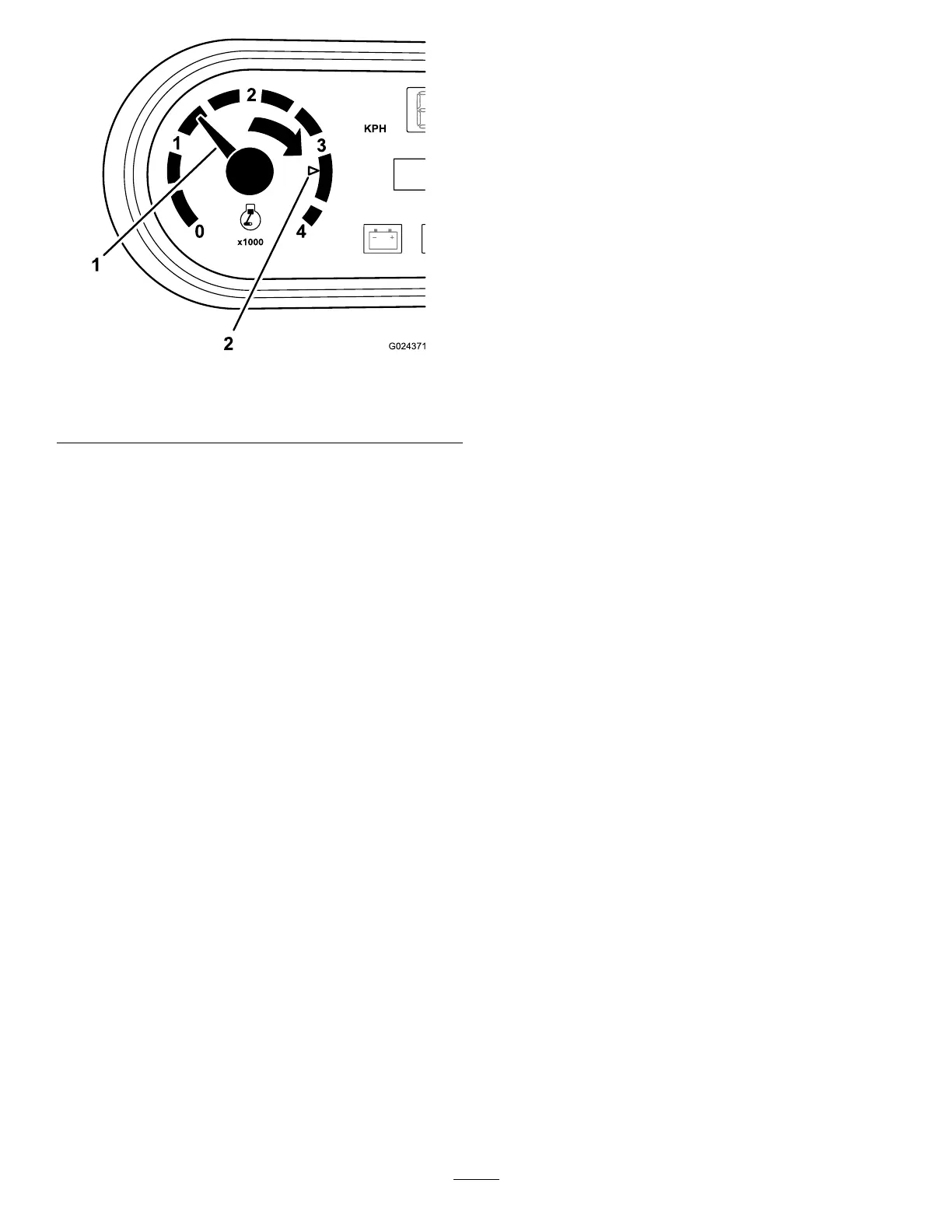

g024371
Figure15
1.Enginespeed(rpm)2.3,300rpmfor540rpm
PTOoperation
HourMeter
Thehourmeterindicatesthetotalhoursofmachine
operation.Thehourmeter(Figure14)startsto
functionwheneveryourotatethekeyswitchtotheON
positionoriftheengineisrunning.
Speedometer
Thespeedometerregistersthegroundspeedofthe
machine(Figure14).Thespeedometerisinmph,but
youcaneasilyconvertittokm/h;refertoConverting
theSpeedometer(page58).
Check-EngineLight
Thecheck-enginelight(Figure14)illuminatestonotify
theoperatorofanenginemalfunction.
ContactyourauthorizedT orodistributor.
Oil-Pressure-WarningLight
Theoil-pressure-warninglight(Figure14)illuminates
iftheengine-oilpressuredropsbelowasafelevel
whiletheengineisrunning.
Important:Ifthelightickersorremainson,
stopthemachine,shutofftheengine,andcheck
theoillevel.Iftheoillevelislow,butadding
oildoesnotcausethelighttogooutwhenthe
engineisstarted,shutofftheengineimmediately,
andcontactyourAuthorizedServiceDealerfor
assistance.
Checktheoperationofthewarninglightsasfollows:
1.Engagetheparkingbrake.
2.TurnthekeyswitchtotheON/PREHEATposition,
butdonotstarttheengine.
Note:Theoil-pressurelightshouldglowred.
Ifthelightdoesnotfunction,eitherabulbis
burnedoutorthereisamalfunctioninthe
systemthatyoumustrepair.
Note:Ifenginewasjustshutoff,itmaytake1
to2minutesforthelighttocomeon.
Coolant-TemperatureGaugeandLight
Thecoolant-temperaturegaugeandlightregistersthe
coolanttemperatureintheengineandoperatesonly
whenthekeyswitchisinONposition(Figure14).The
indicatorlightblinksrediftheengineoverheats.
FuelGauge
Thefuelgaugeshowstheamountoffuelinthetank.
ItdisplaysonlywhenkeyswitchisintheONposition
(Figure14).Theredsegmentofthedisplayindicates
alow-fuellevelandtheashingredlightindicatesthat
thefuelinthetankisnearempty.
